Special Tools

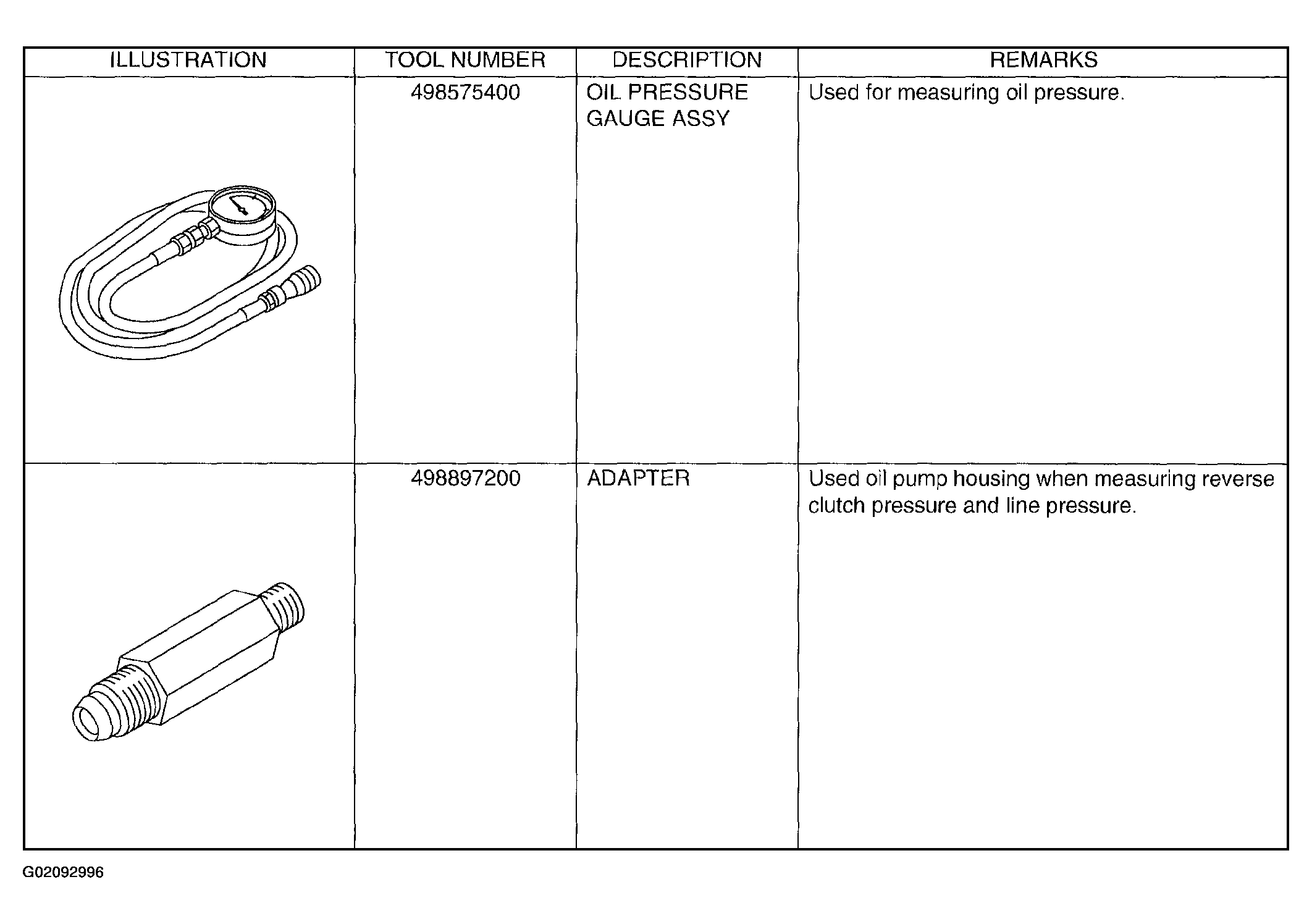

Fig 1: Identifying Special Tools (1 Of 11)

G02092996

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Special Tools (2 Of 11)

G02092997

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Special Tools (3 Of 11)

G02092998

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Special Tools (4 Of 11)

G02092999

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Special Tools (5 Of 11)

G02093000

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Special Tools (6 Of 11)

G02093001

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Special Tools (7 Of 11)

G02093002

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Special Tools (8 Of 11)

G02093003

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Special Tools (9 Of 11)

G02093004

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Special Tools (10 Of 11)

G02093005

Courtesy of SUBARU OF AMERICA, INC.

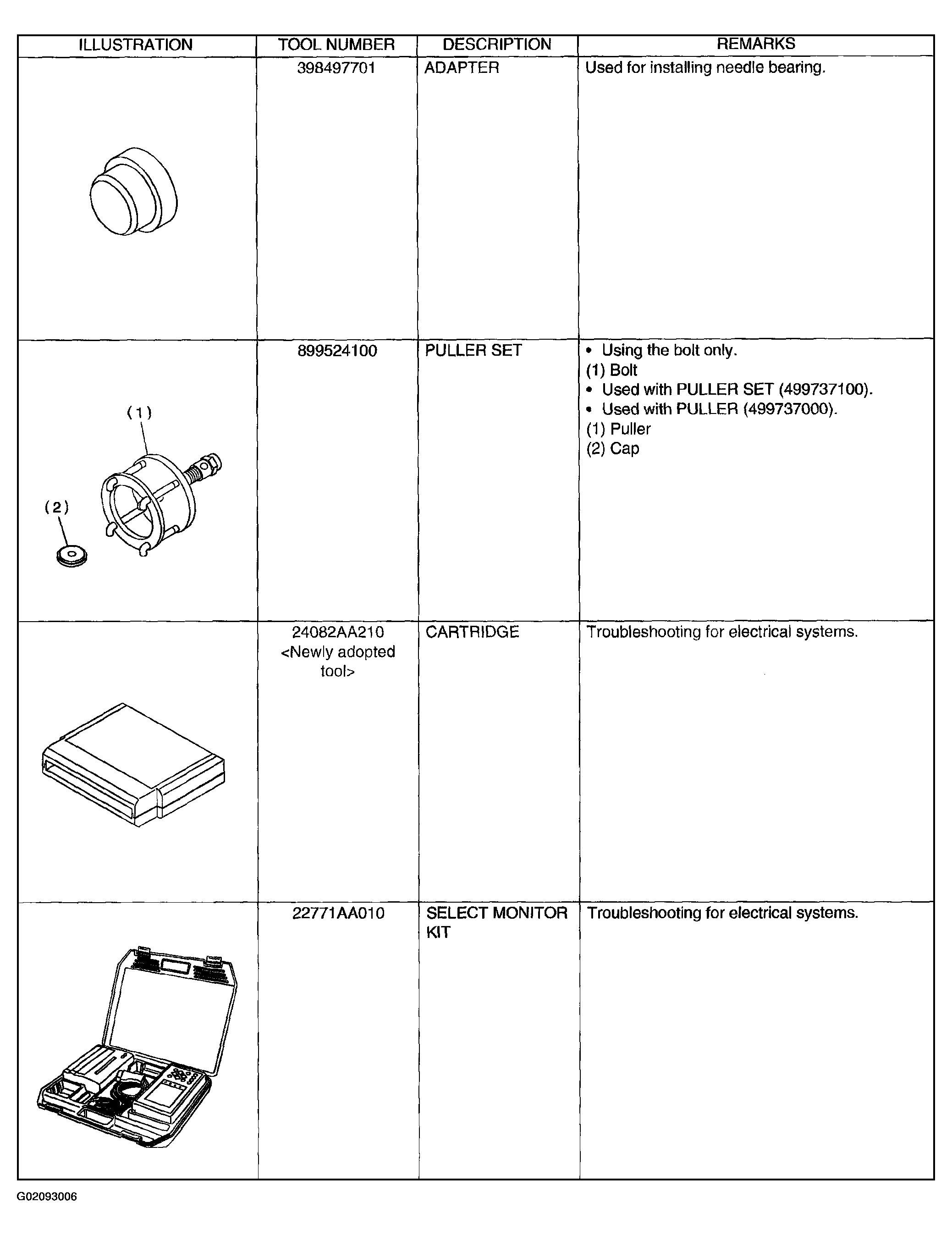

Fig 11: Identifying Special Tools (11 Of 11)

G02093006

Courtesy of SUBARU OF AMERICA, INC.
