Inhibitor Switch: Removal

Set the vehicle on a lift.
Move the select lever to "N" range.
Remove the air cleaner case.
Refer to REMOVAL , Air Cleaner Case.
Disconnect the inhibitor switch connector.

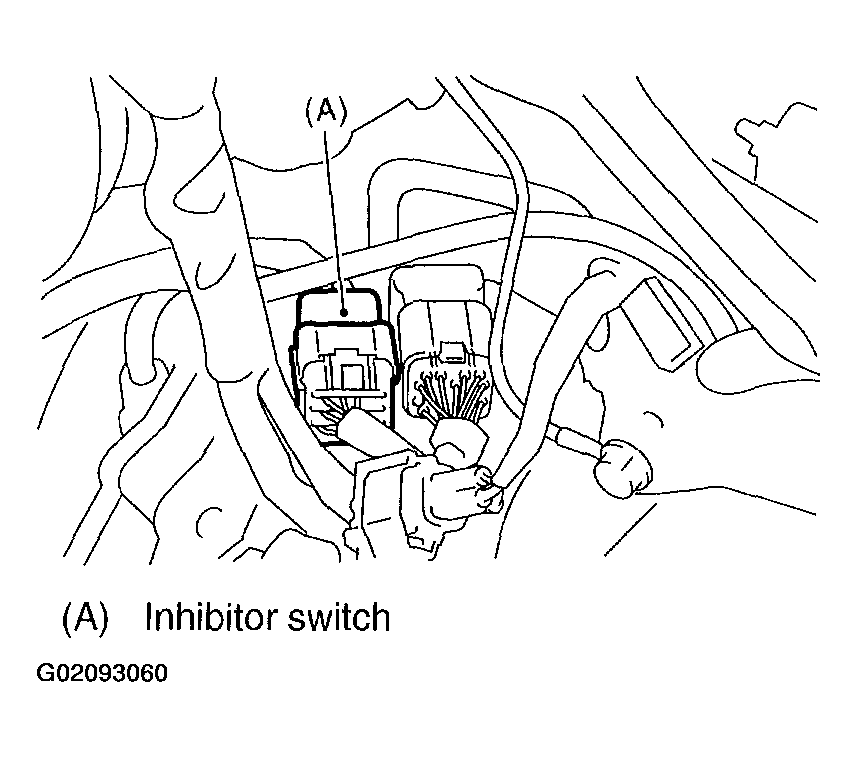

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch connector from stay.
Lift-up the vehicle.
Remove the front and center exhaust pipes.
Refer to REMOVAL , Front Exhaust Pipe.
Remove the snap pin and washer from range select lever.

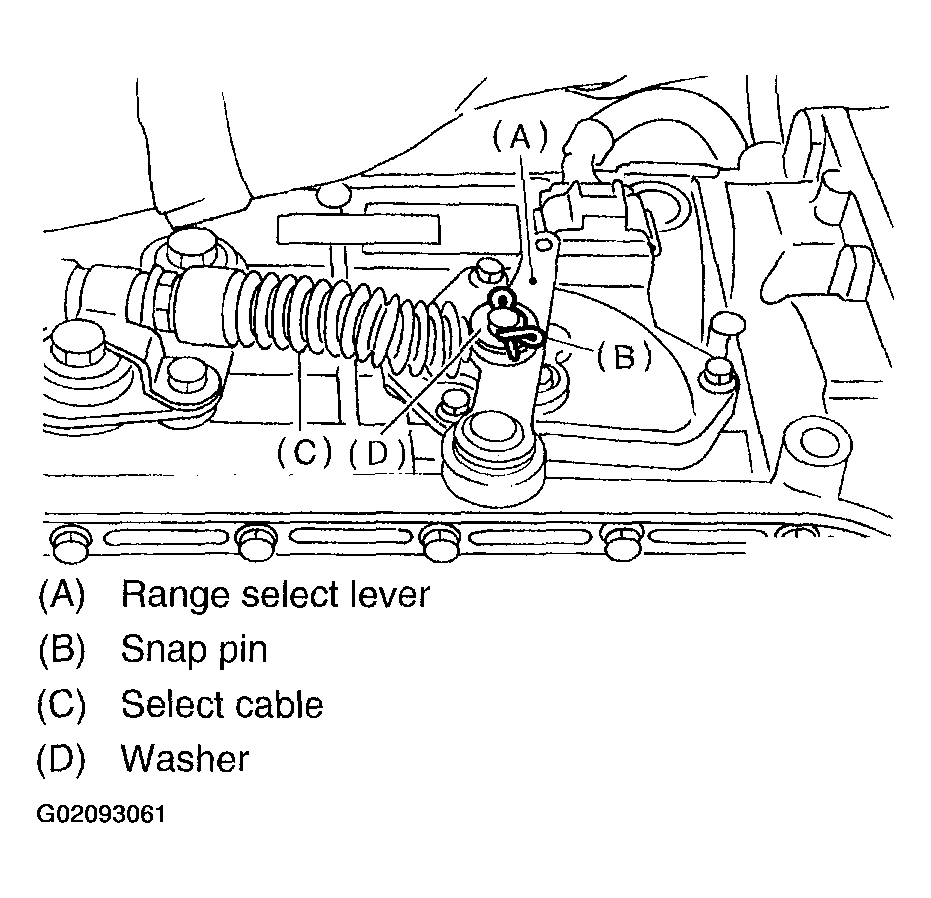

Fig 2: Removing Snap Pin & Washer From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from transmission case.

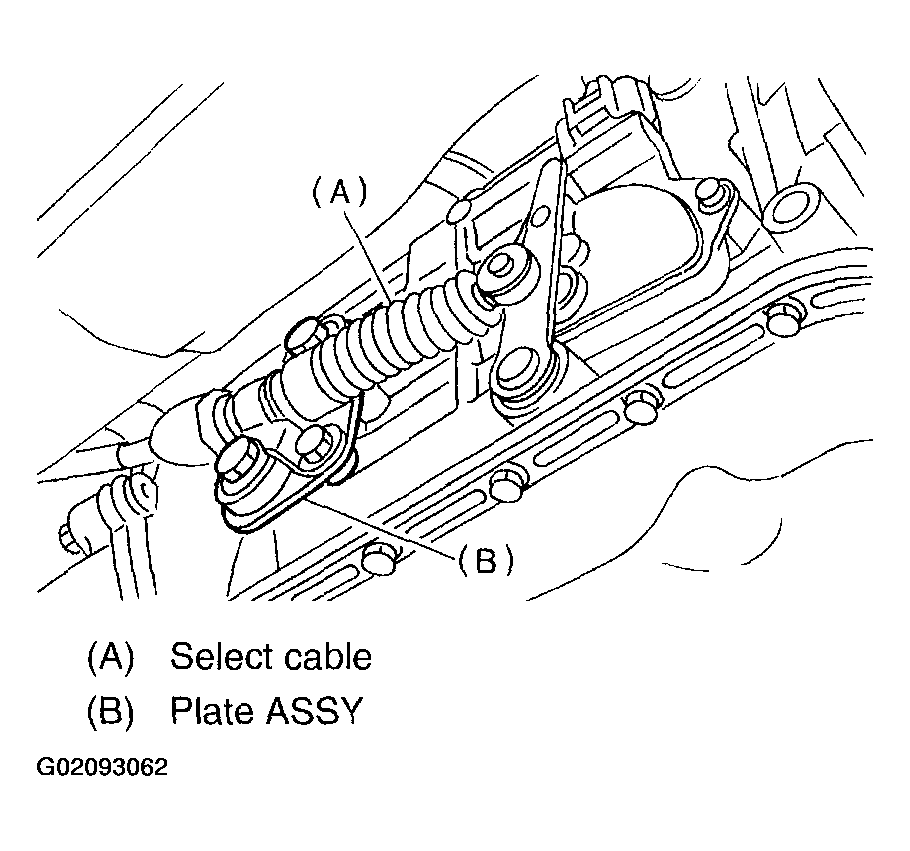

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts.

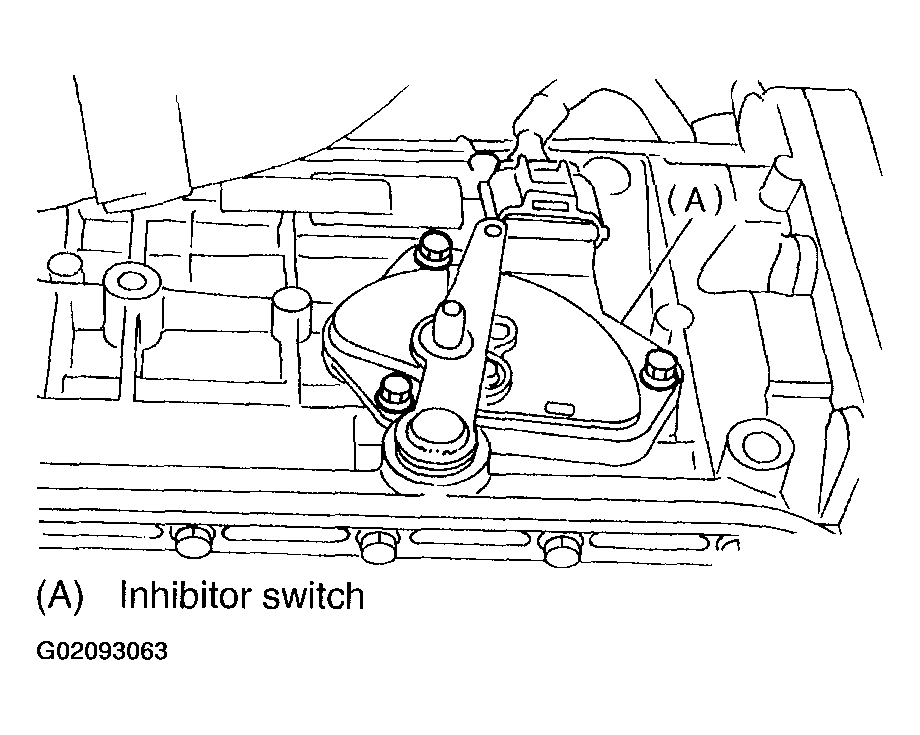

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Move the range select lever to parking position (left side).

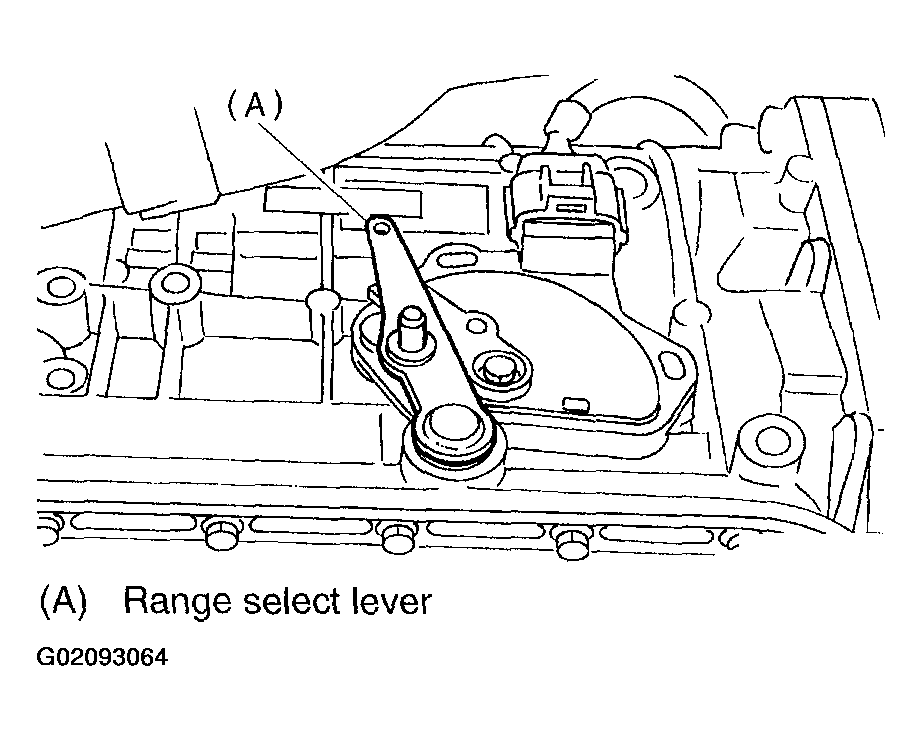

Fig 5: Moving Range Select Lever To Parking Position (Left Side)
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch from transmission.

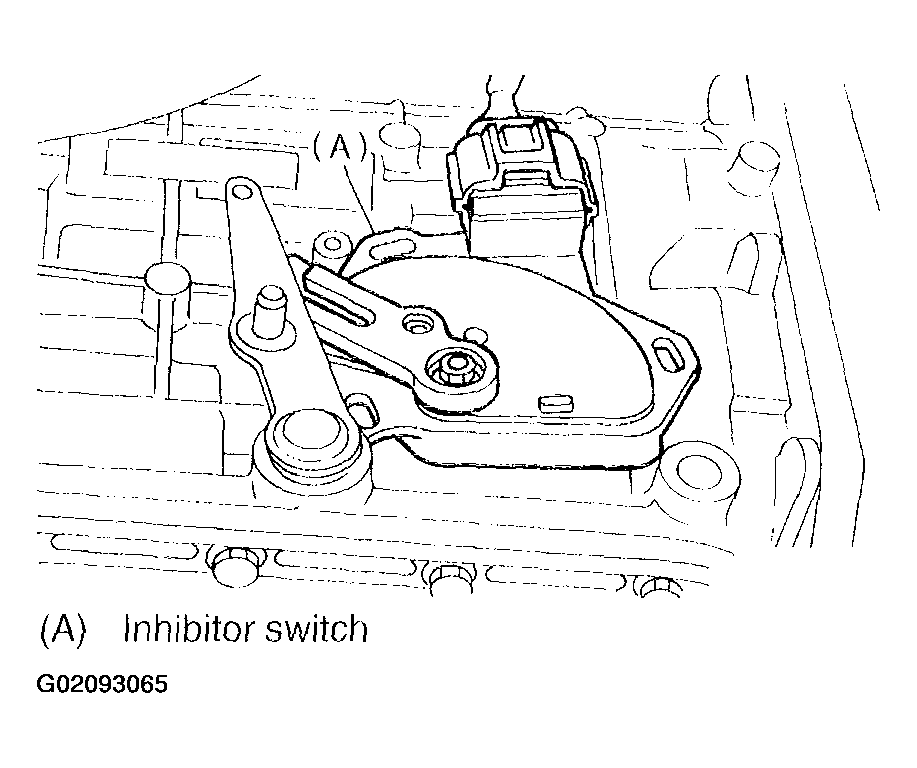

Fig 6: Removing Inhibitor Switch From Transmission
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor switch harness connector from inhibitor switch.
