Oil Pump: Disassembly

Remove four seal rings.

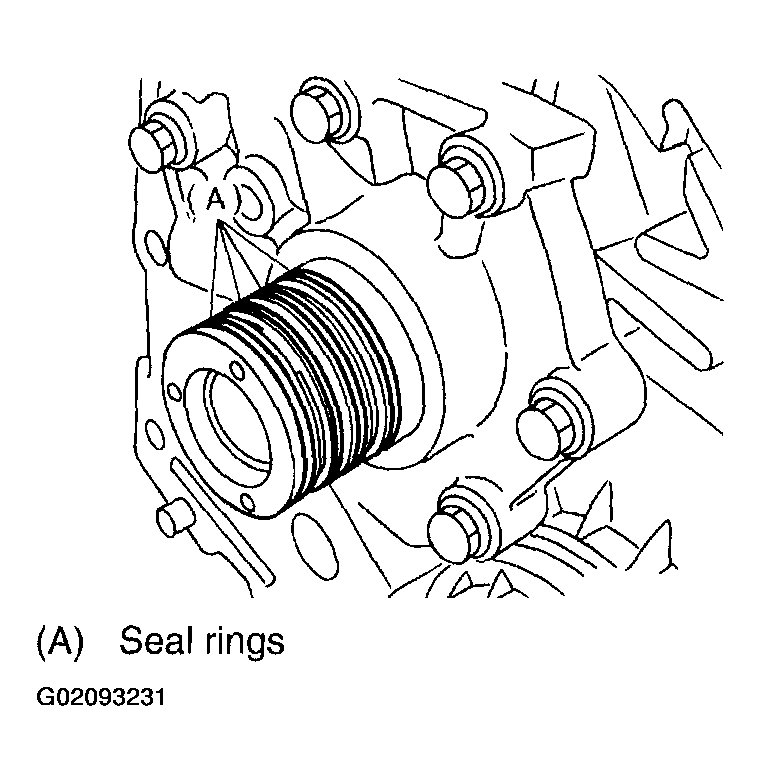

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Lightly tap the end of the stator shaft to remove the cover.

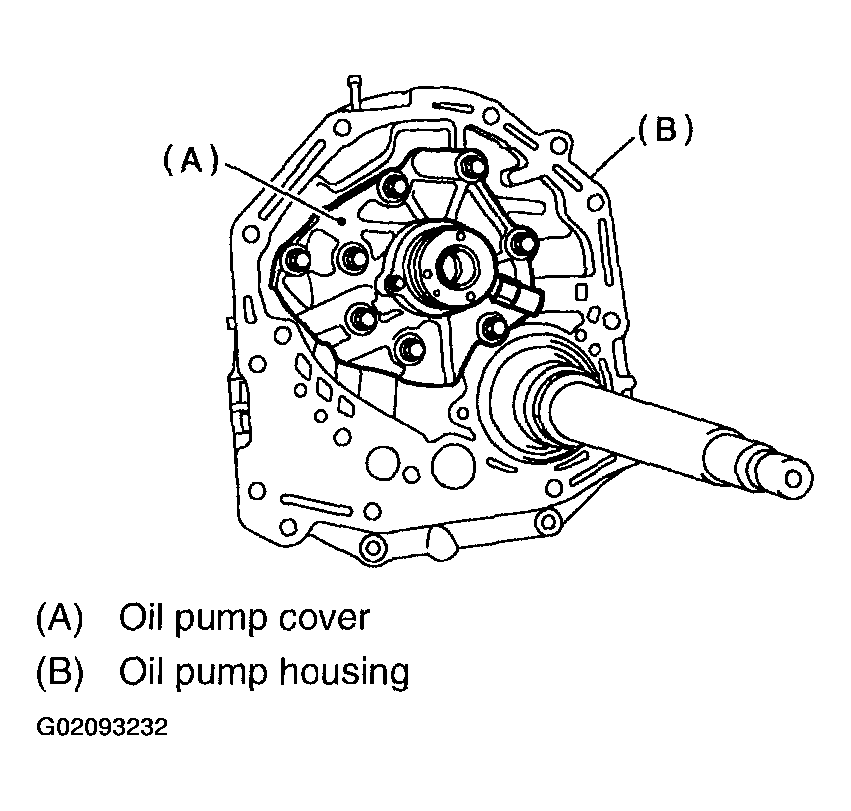

Fig 2: Lightly Tapping End Of Stator Shaft To Remove Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the inner and outer rotor.

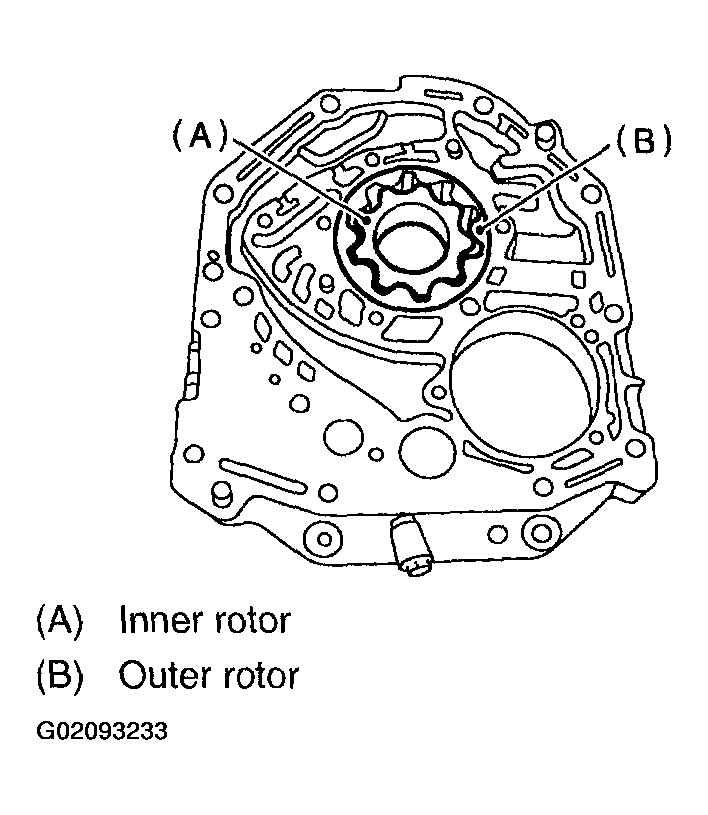

Fig 3: Removing Inner & Outer Rotor
Courtesy of SUBARU OF AMERICA, INC.
