Reduction Drive Gear: Disassembly

Take out the seal rings.

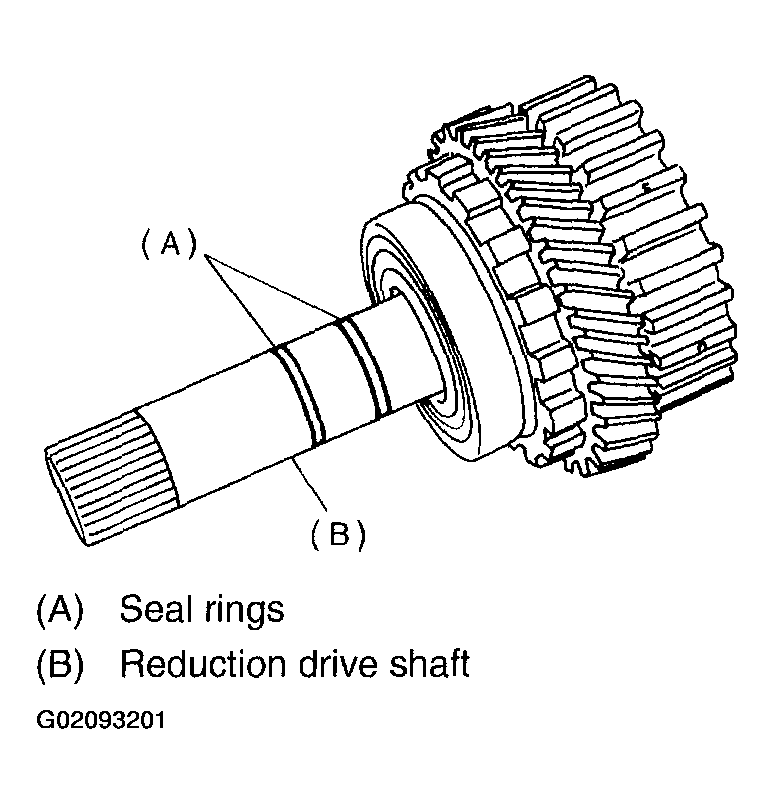

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Using ST, remove the ball bearing.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing
Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the reduction drive gear.

Fig 3: Removing Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
