Reduction Drive Gear: Installation

Install the reduction drive gear assembly.
NOTE: Insert it fully into position until the bearing shoulder bottoms.

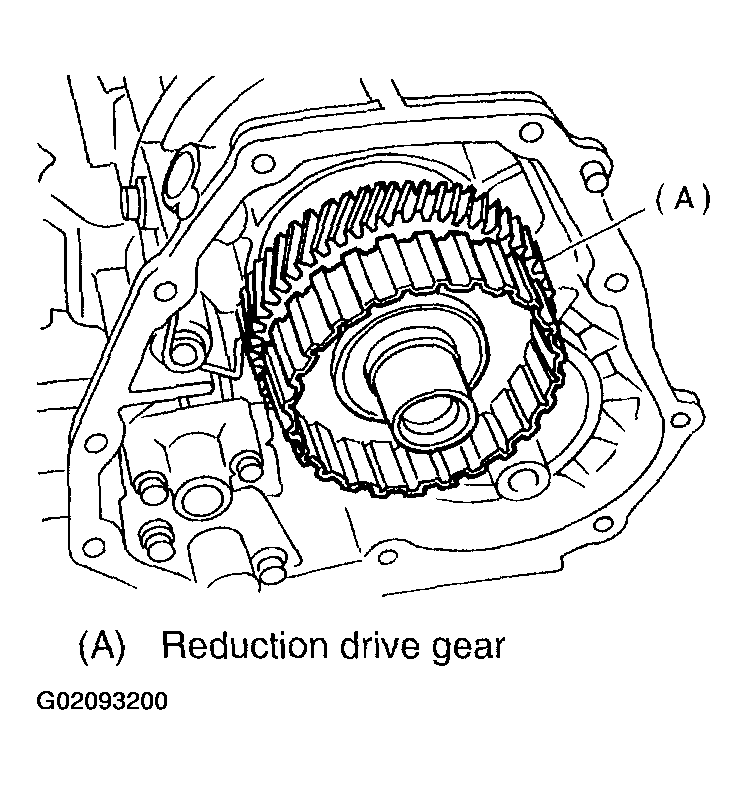

Fig 1: Installing Reduction Drive Gear Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the reduction driven gear. Refer to INSTALLATION , Reduction Driven Gear.
Combine the transmission case with the extension case, and install rear vehicle speed sensor. Refer to INSTALLATION .
Install the transmission assembly to the vehicle.
Refer to INSTALLATION , Automatic Transmission Assembly.
