Transfer Clutch: Installation

Select the thrust needle bearing.
Install the transfer clutch assembly to the case.

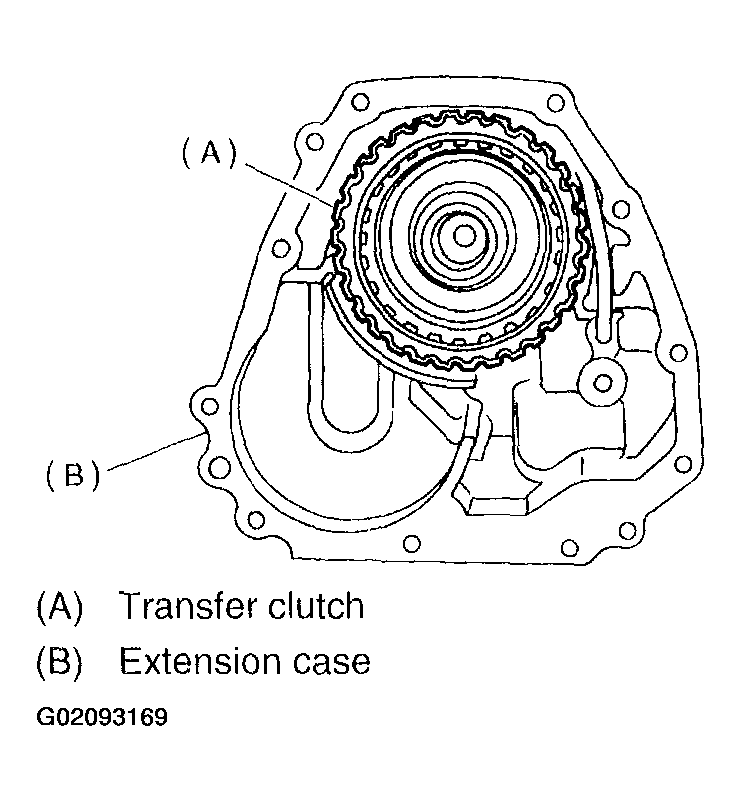

Fig 1: Installing Transfer Clutch Assembly To Case
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts to secure the case.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

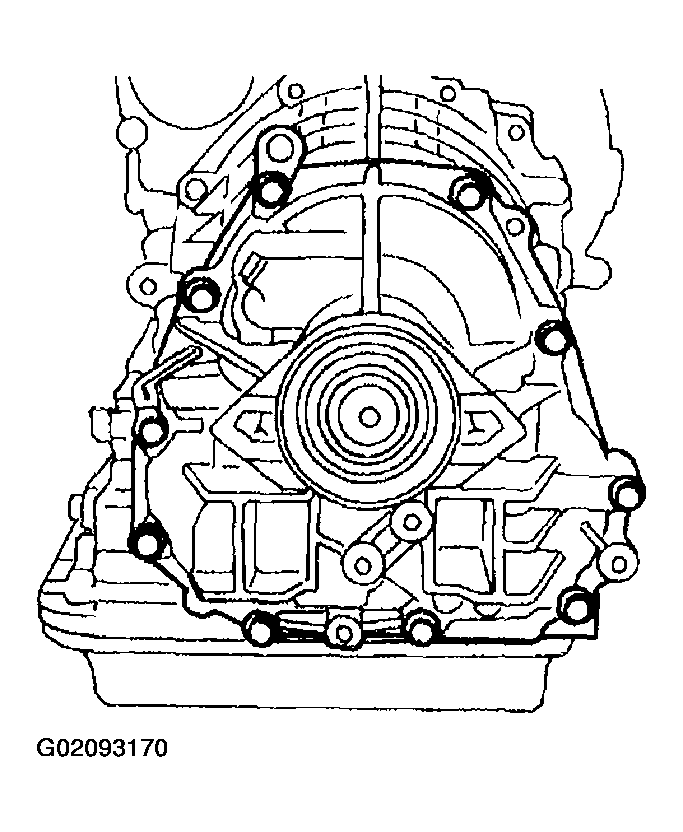

Fig 2: Tightening Bolts To Secure Case
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to vehicle. Refer to INSTALLATION , Automatic Transmission Assembly.
