Transfer Clutch: Removal

Remove the transmission assembly from vehicle. Refer to REMOVAL , Automatic Transmission Assembly.
Remove rear vehicle speed sensor.

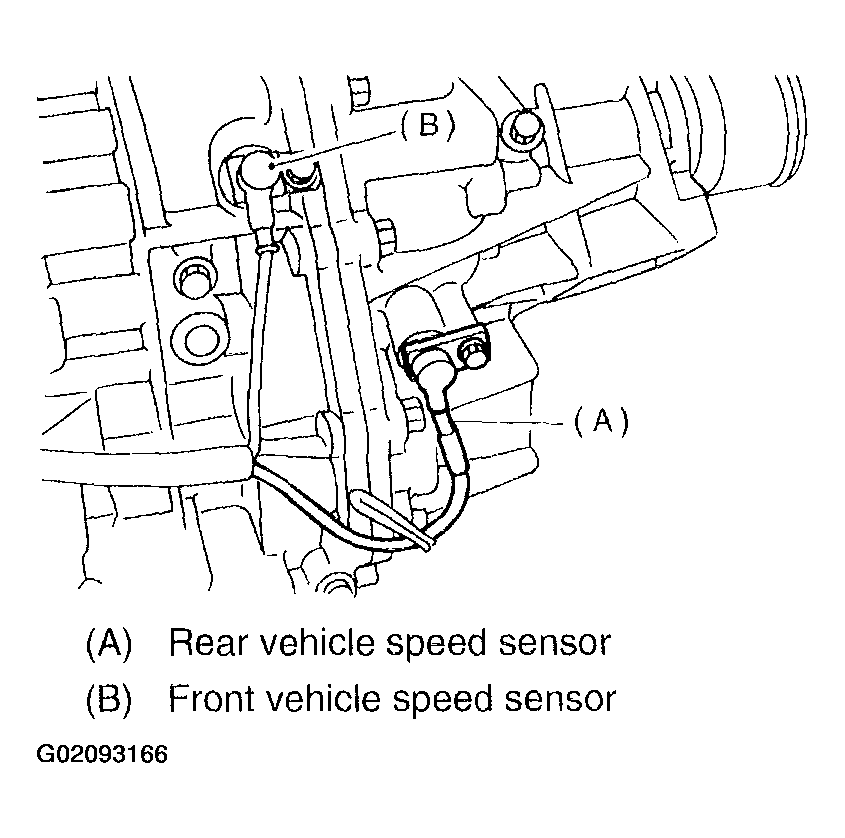

Fig 1: Removing Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Separate transmission case and extension case sections.

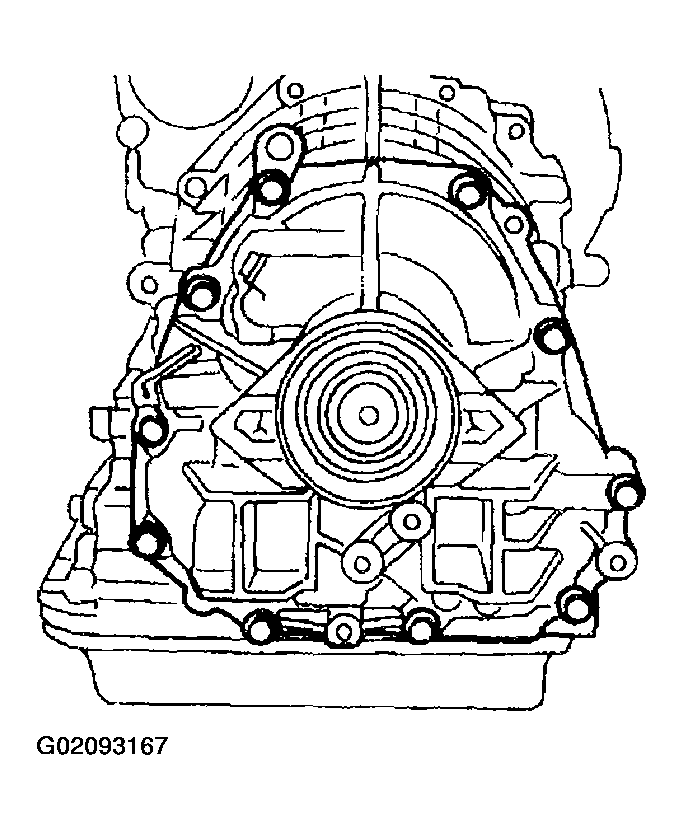

Fig 2: Separating Transmission Case & Extension Case Sections
Courtesy of SUBARU OF AMERICA, INC.
Take out the transfer clutch by lightly tapping the end of the rear drive shaft.

Fig 3: Removing Transfer Clutch
Courtesy of SUBARU OF AMERICA, INC.
