Integrated Module Power Supply And Ground Line

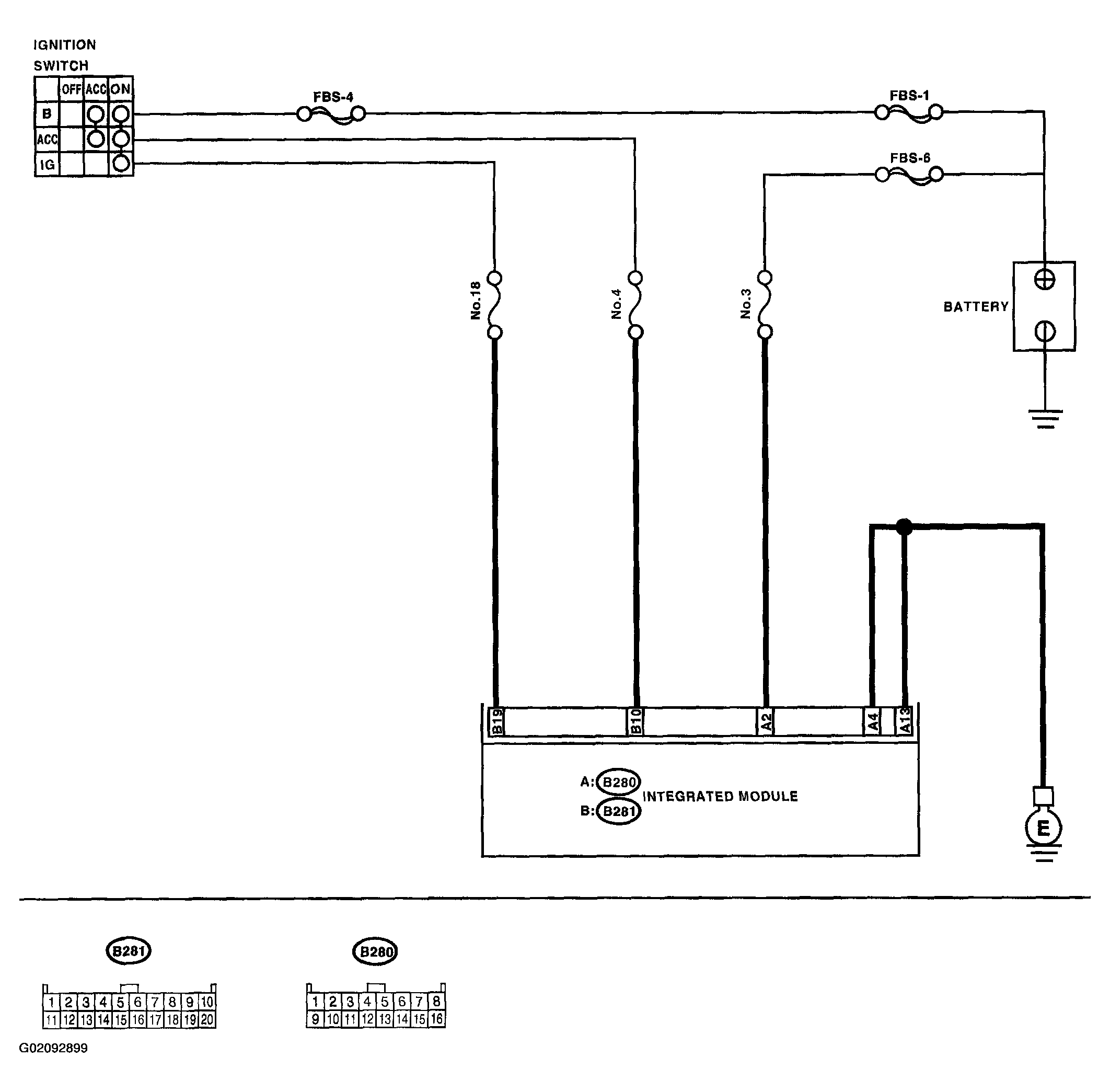

Fig 1: Integrated Module Power Supply & Ground Line Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

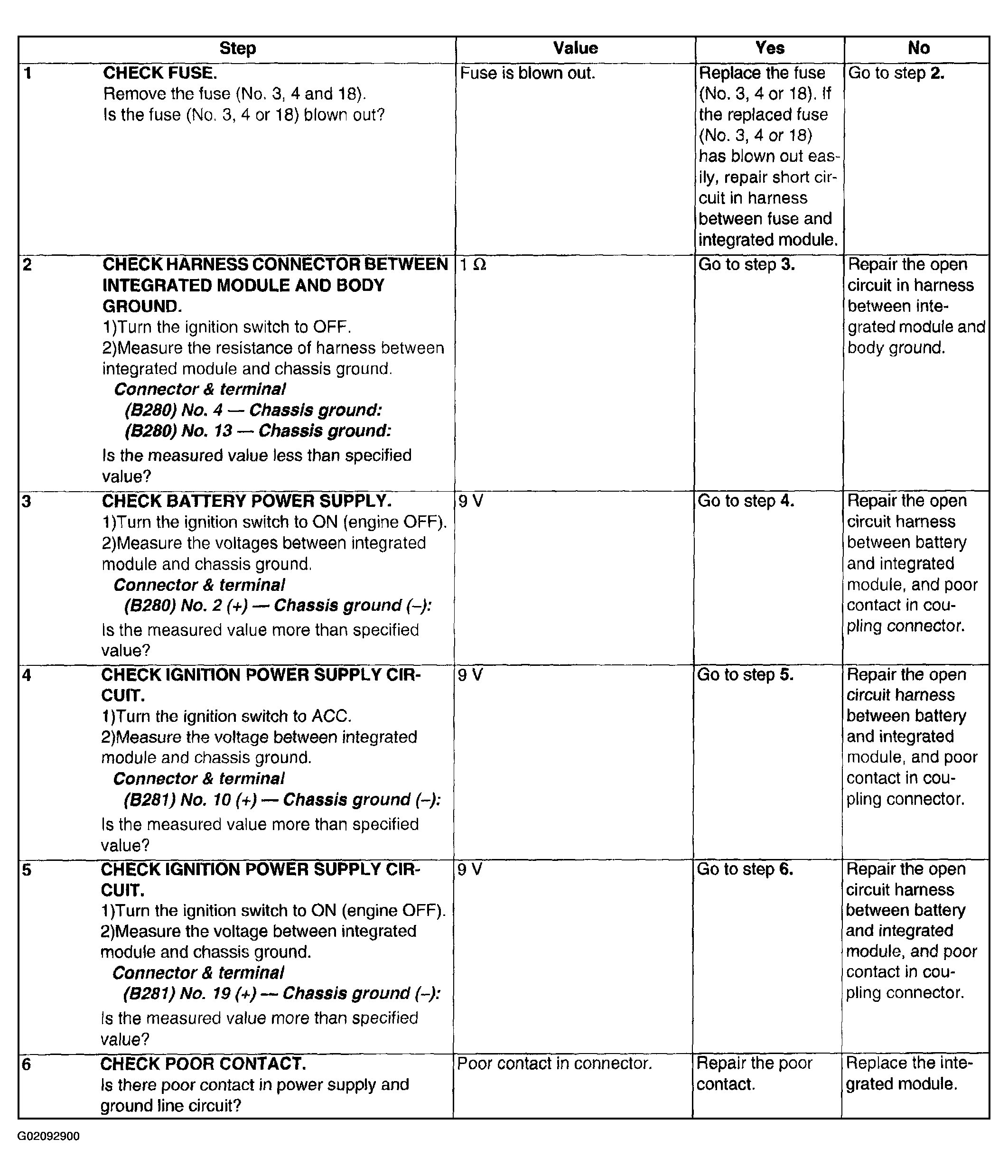

Fig 2: Diagnostic Chart

Courtesy of SUBARU OF AMERICA, INC.
