Key Interlock Does Not Lock Or Release

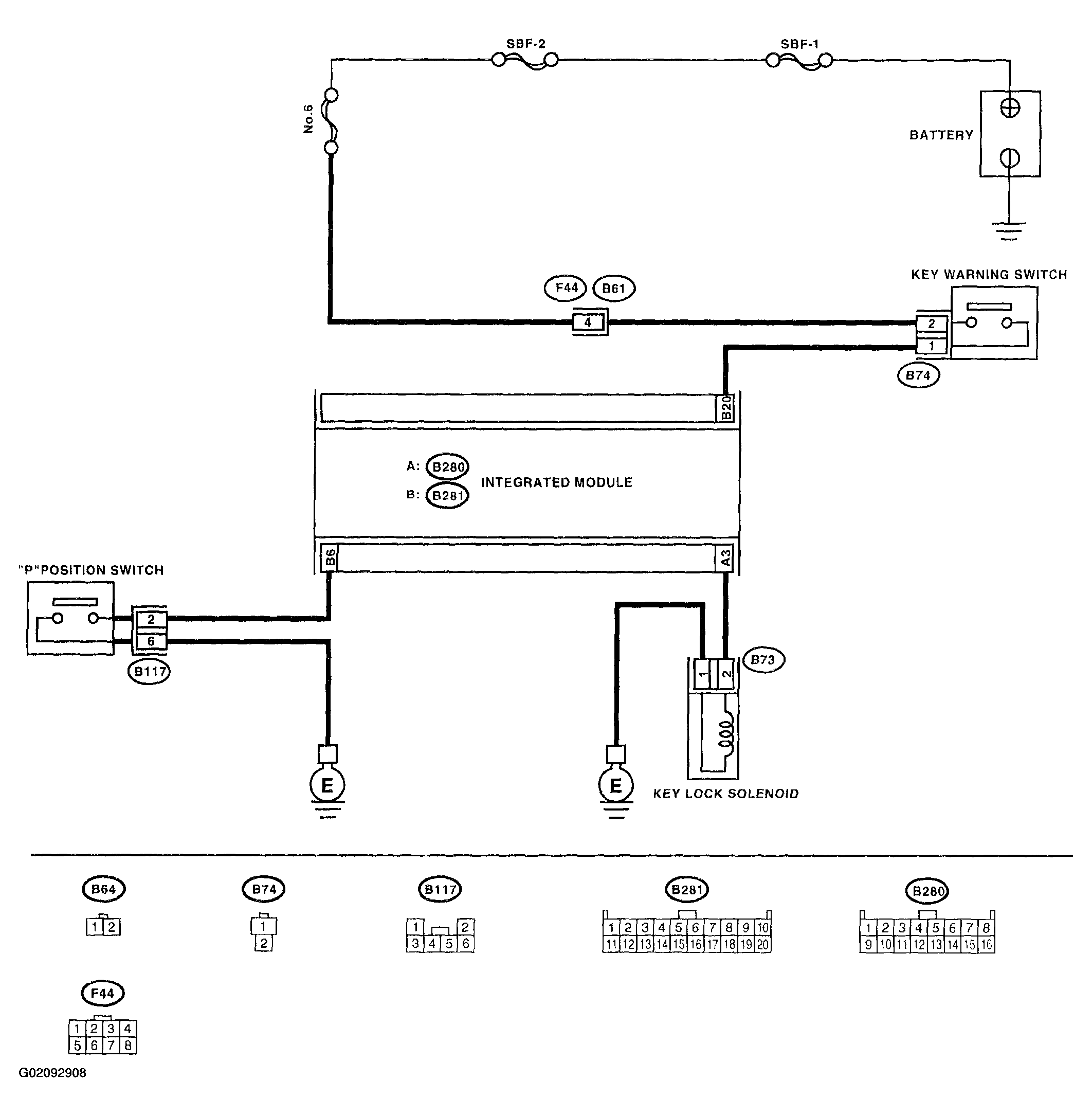

Fig 1: Key Interlock Does Not Lock Or Release Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

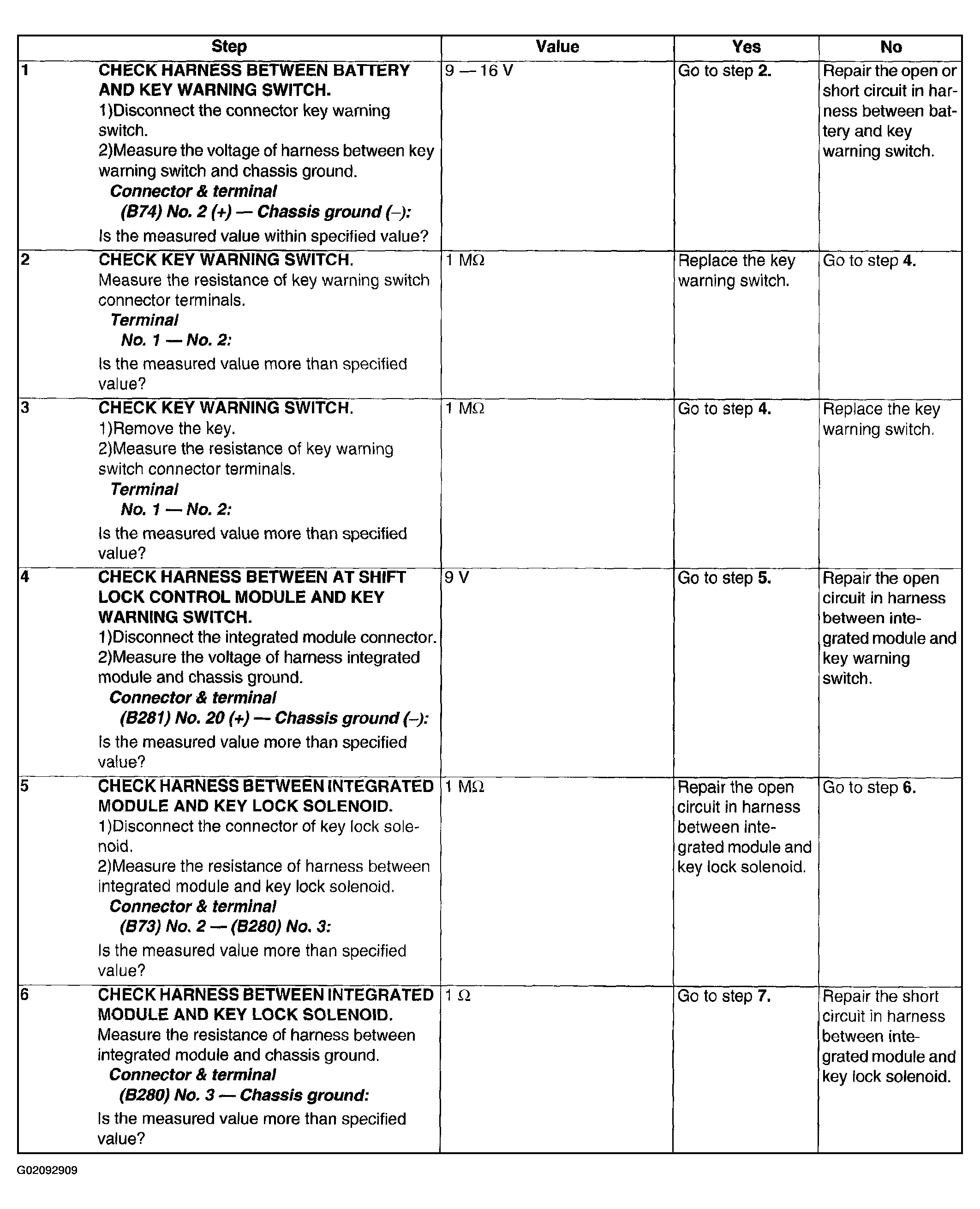

Fig 2: Diagnostic Chart (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

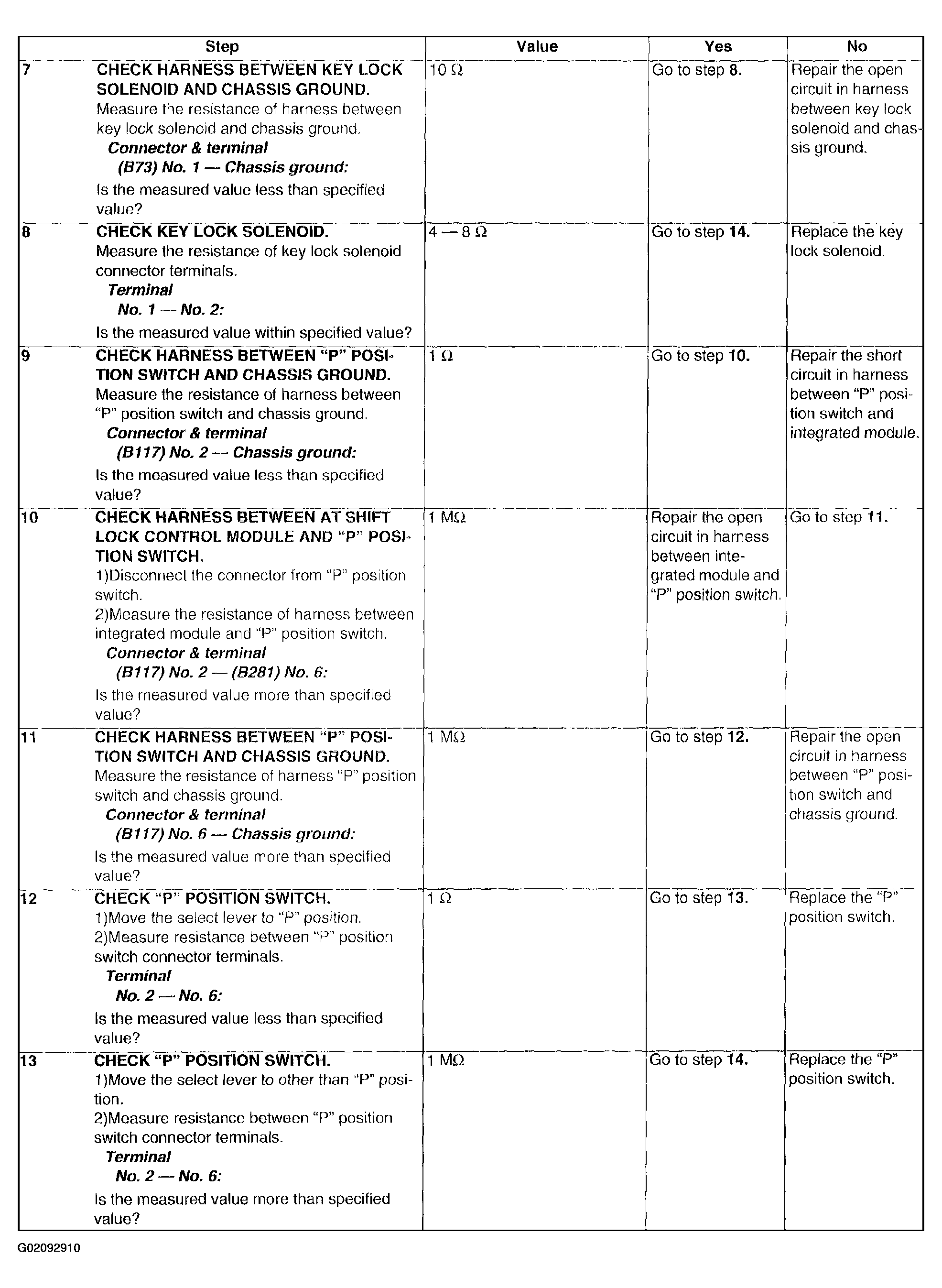

Fig 3: Diagnostic Chart (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

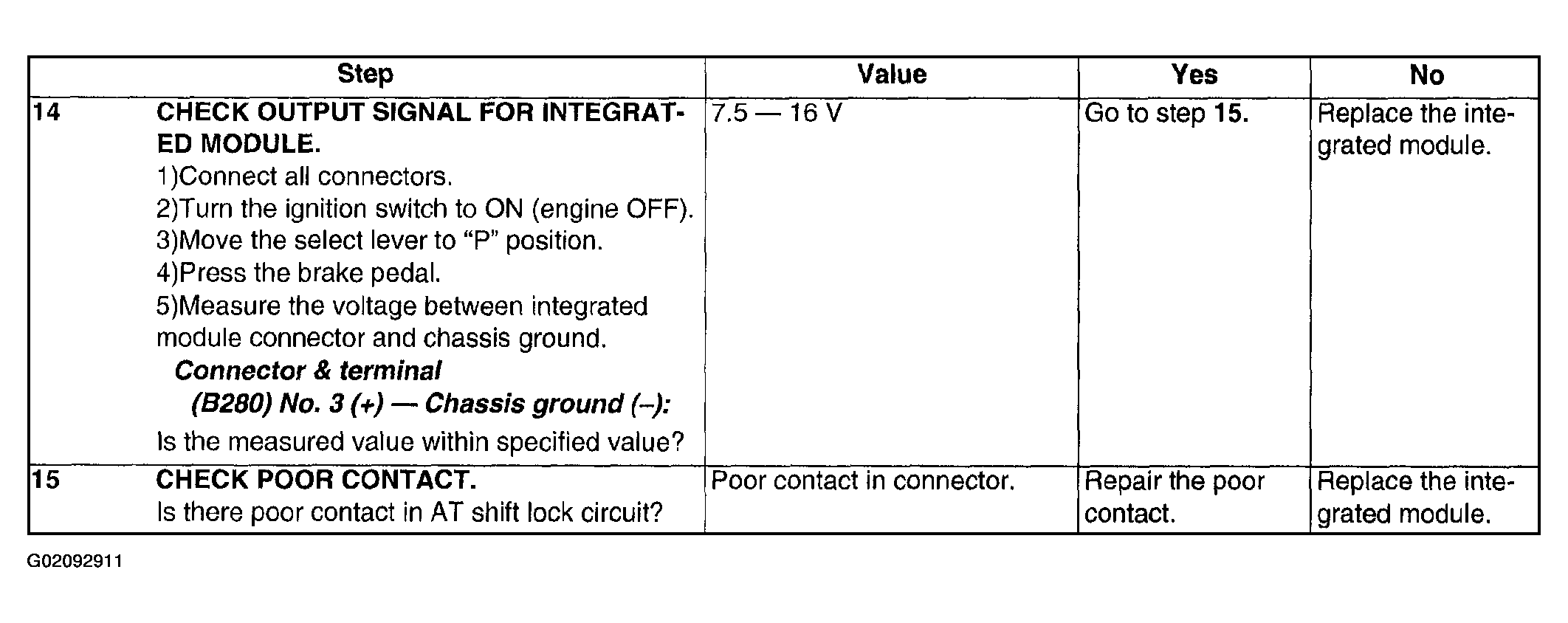

Fig 4: Diagnostic Chart (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
