AT Shift Lock System: Schematic

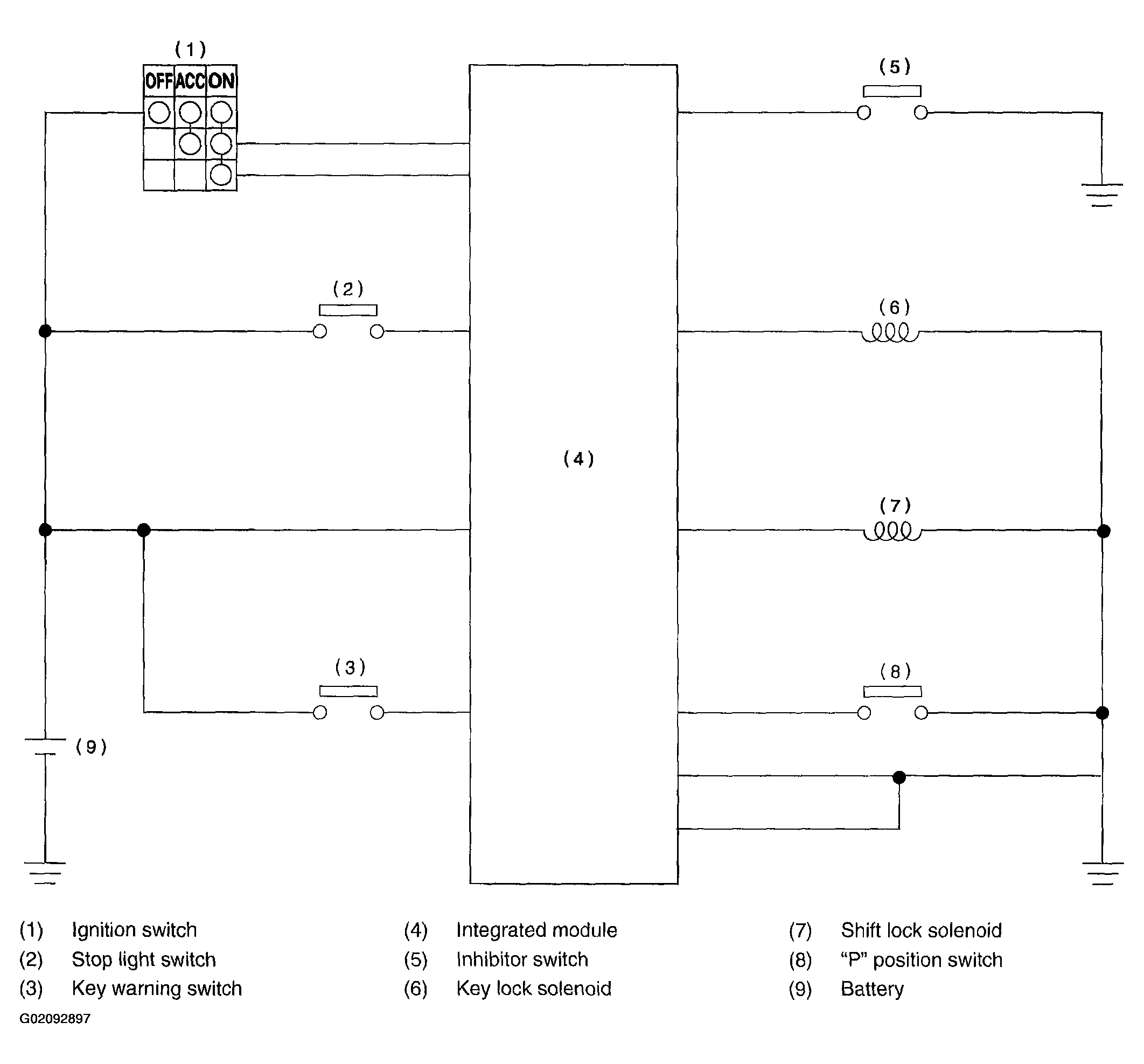

Fig 1: Identifying Shift Lock System Switch
G02092897Courtesy of SUBARU OF AMERICA, INC.
