Without SUBARU Select Monitor

After calling up a DTC, disconnect the diagnosis connector terminal 6 from diagnosis terminal.

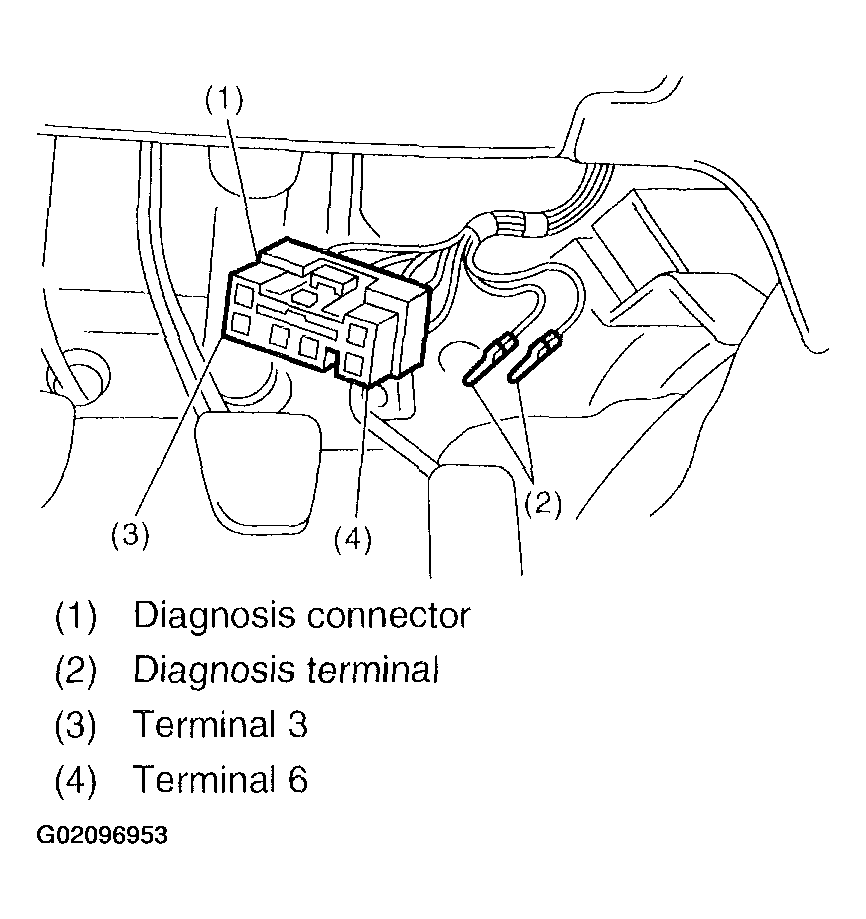

Fig 1: Disconnecting Diagnosis Connector Terminal 6
Courtesy of SUBARU OF AMERICA, INC.
Repeat 3 times within approx. 12 seconds; connecting and disconnecting terminal 6 and diagnosis terminal for at least 0.2 seconds each time.

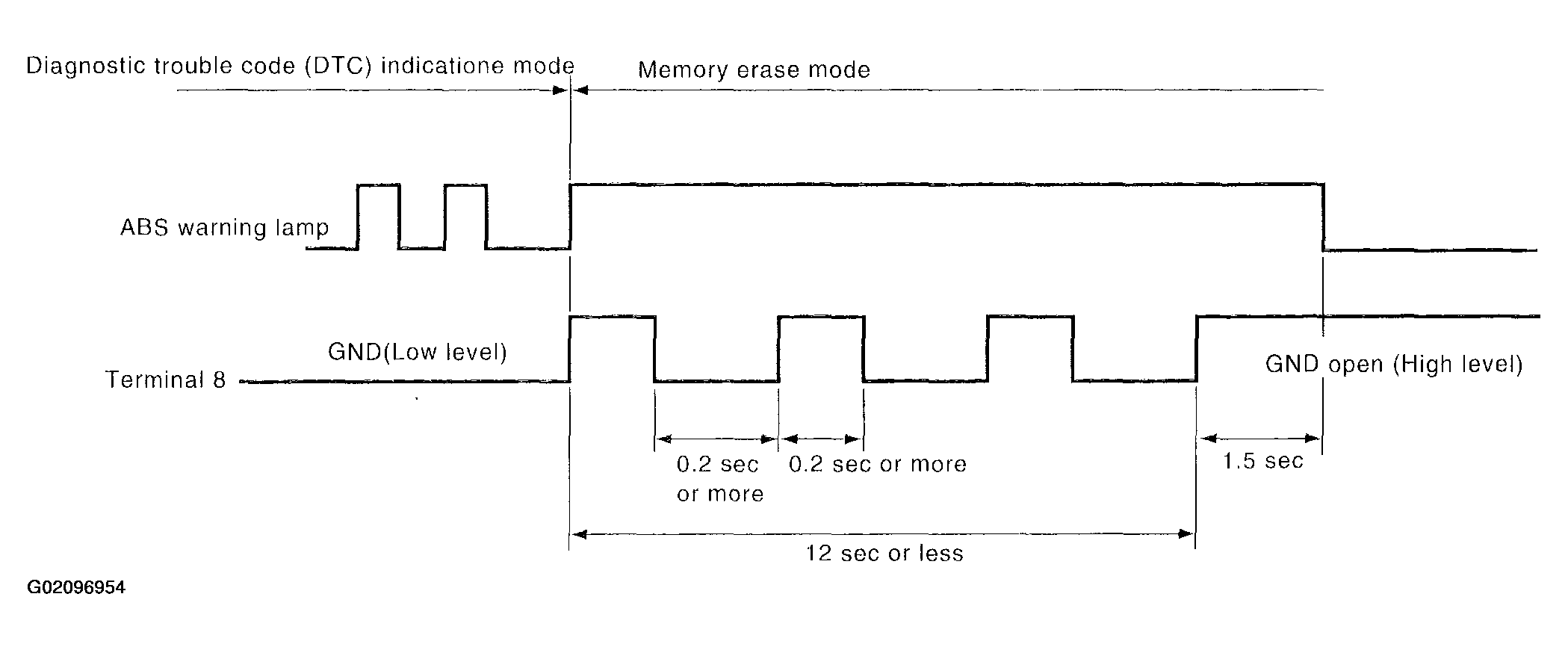

Fig 2: Connecting & Disconnecting Terminal 6 & Diagnosis Terminal (Repeating Pattern 3 Times)
Courtesy of SUBARU OF AMERICA, INC.

NOTE: After the diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
