General Diagnostics Table: Inspection

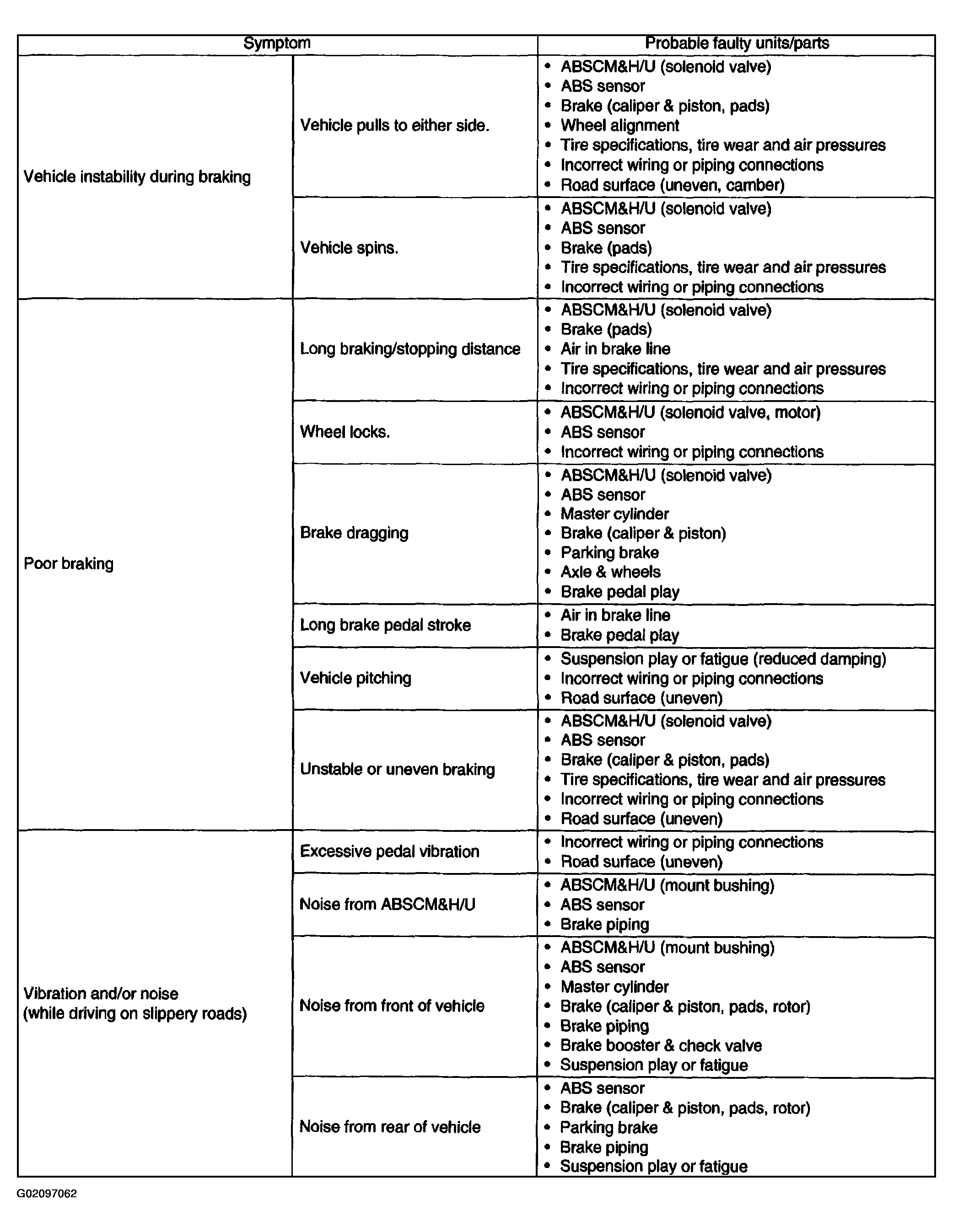

Fig 1: General Diagnostics Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
