Differential Case Assembly

  1. Loosen the twelve bolts and remove the hypoid driven gear.

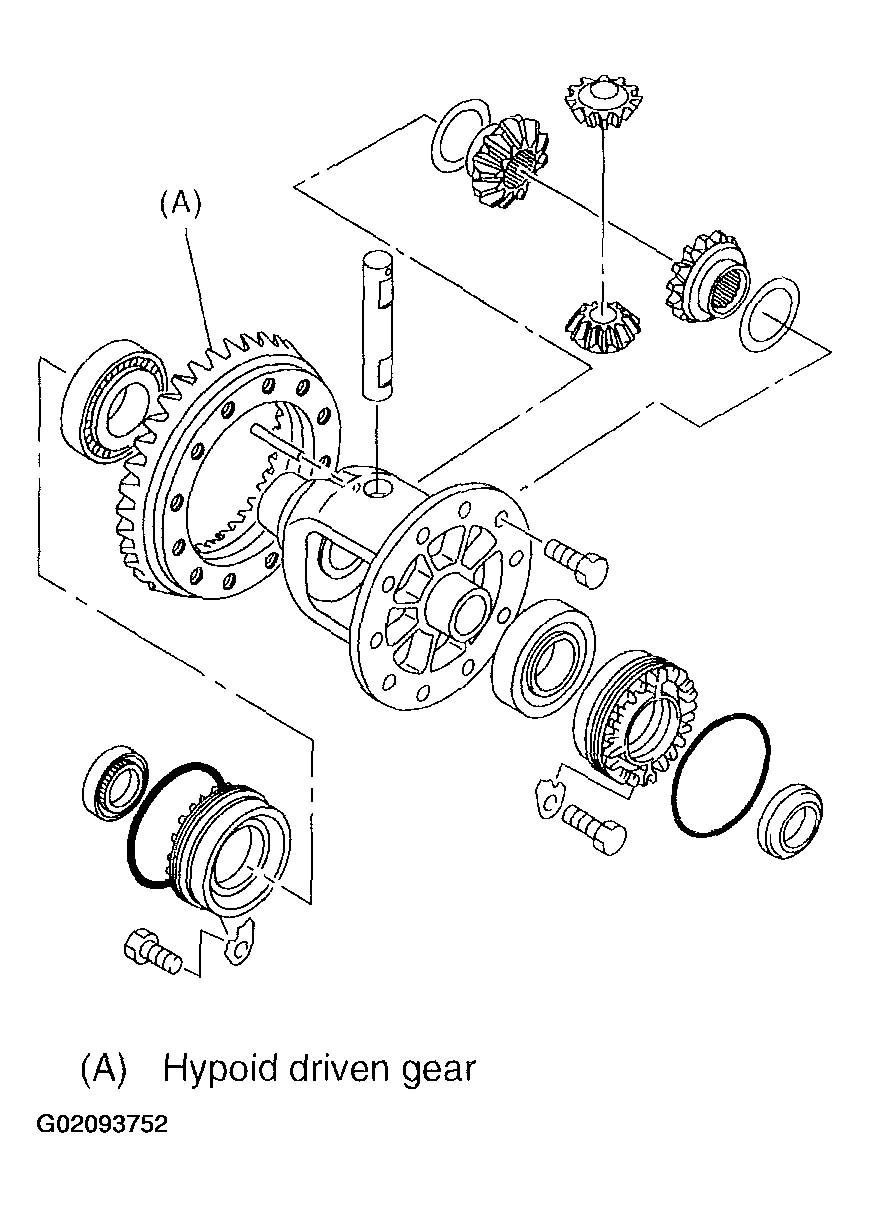

    2. Fig 1: Exploded View Of Differential Case Assembly
    G02093752Courtesy of SUBARU OF AMERICA, INC.
  2. Drive out the straight pin from differential assembly toward hypoid driven gear.

    ST 899904100 REMOVER

    3. Fig 2: Driving Out Straight Pin From Differential Assembly
    G02093753Courtesy of SUBARU OF AMERICA, INC.
  3. Pull out the pinion shaft, and remove the differential bevel pinion and gear and washer.

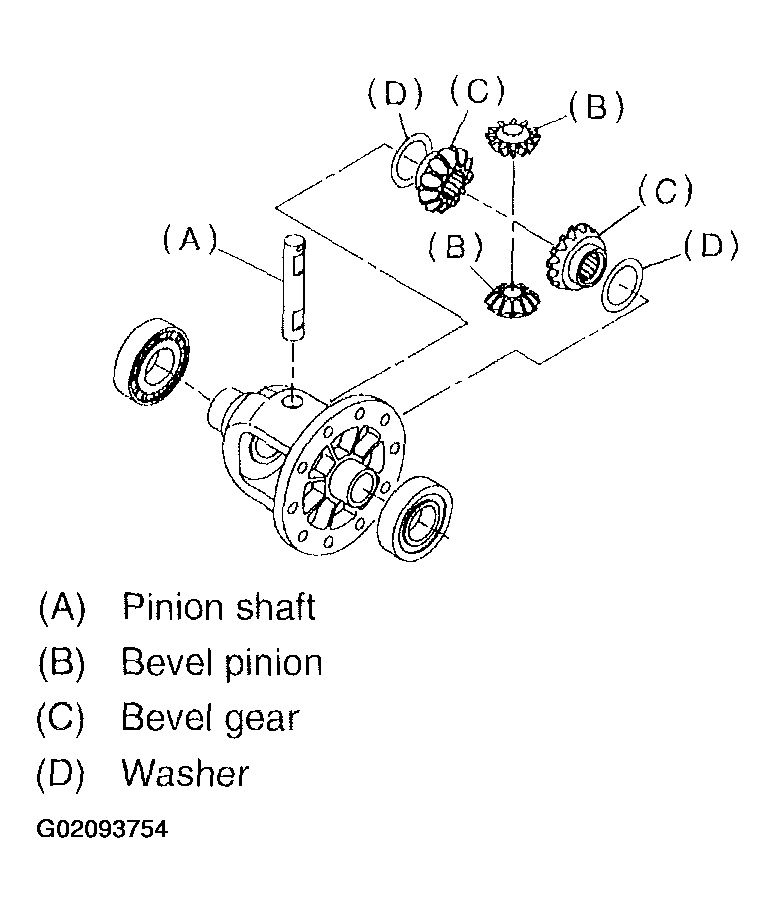

    4. Fig 3: Removing Differential Bevel Pinion And Gear & Washer
    G02093754Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the roller bearing using ST.

    ST 899524100 PULLER SET

    5. Fig 4: Removing Roller Bearing
    G02093755Courtesy of SUBARU OF AMERICA, INC.
