Front Differential Assembly: Installation

  1. Insert the bearing outer race to transmission case.
    NOTE: Apply the transmission gear oil to outer surface of bearing outer race.
  2. Install the differential side retainers using ST.

    ST 499787000 WRENCH ASSY

  3. Install the differential assembly.
    NOTE: Be careful not to fold the sealing lip of oil seal.

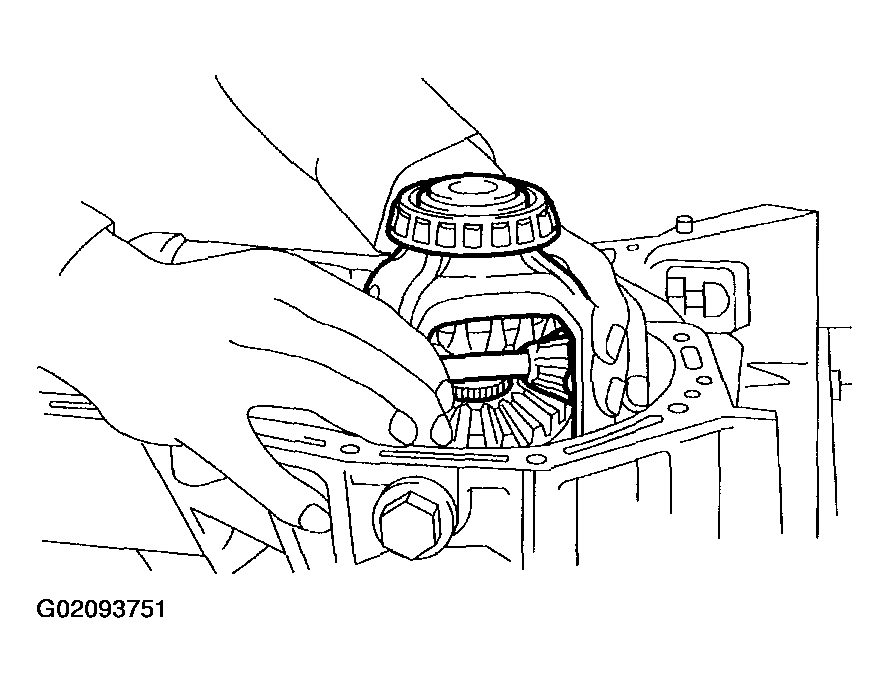

    4. Fig 1: Installing Differential Assembly
    G02093751Courtesy of SUBARU OF AMERICA, INC.
  4. Install the main shaft assembly. Refer to INSTALLATION , Main Shaft Assembly (Single-Range).
  5. Install the drive pinion assembly. Refer to INSTALLATION , Main Shaft Assembly (Single-Range).
  6. Install the transmission case. Refer to INSTALLATION , Transmission Case.
  7. Install the transfer case with extension case assembly. Refer to INSTALLATION , Transfer Case and Extension Case Assembly.
  8. Install the manual transmission assembly to vehicle. Refer to INSTALLATION , Manual Transmission Assembly.
