Extension Assembly

Thrust washer (50 x 61 x t) to taper roller bearing table outer race side clearance

1. 0.2 - 0.3 mm T (0.0008 - 0.012 in T)

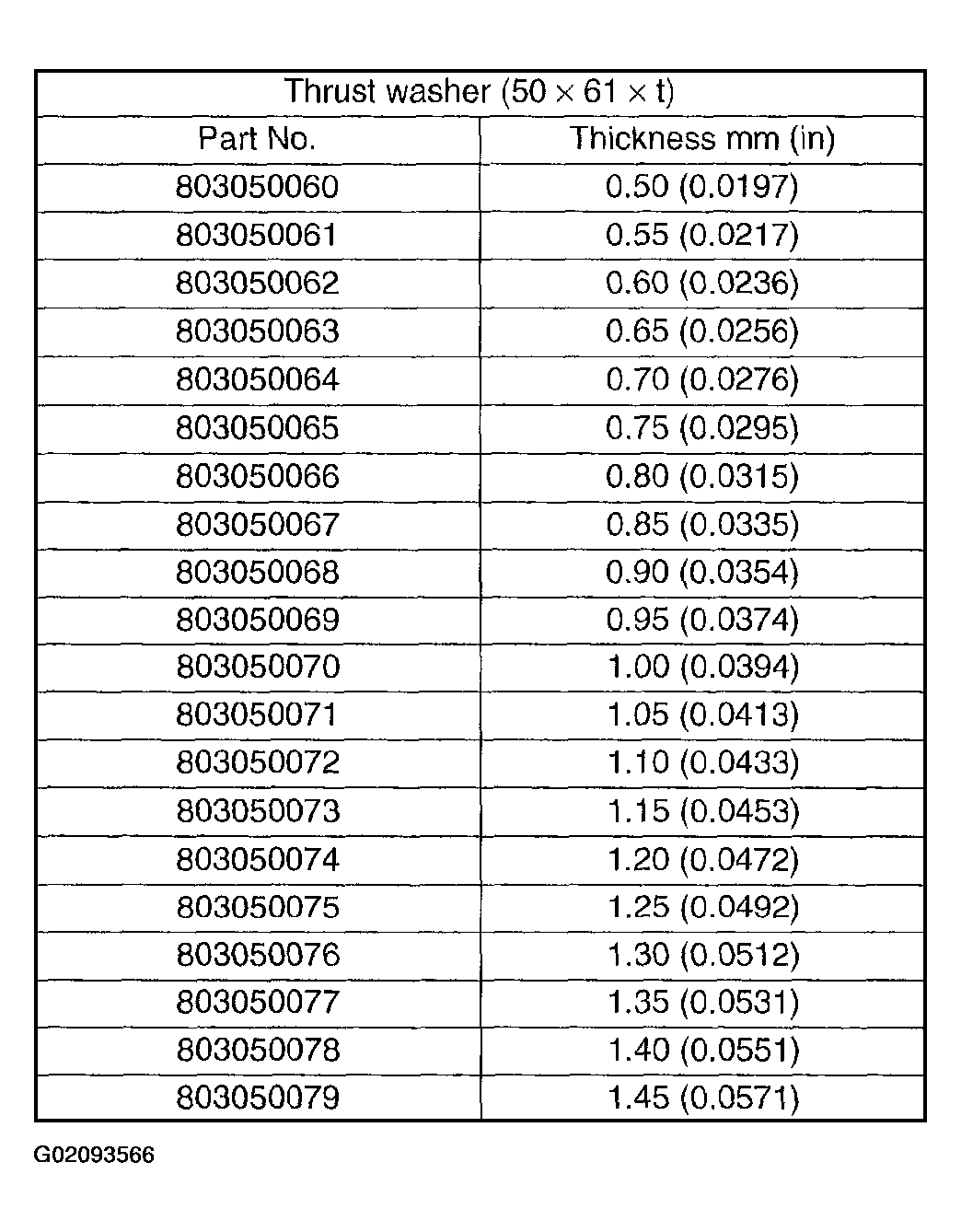

Fig 1: Thrust Washer Specifications Chart (50 X 61 X T)

Courtesy of SUBARU OF AMERICA, INC.

Thrust washer to center differential side clearance

1. 0.15 - 0.35 mm (0.0059 - 0.0138 in)

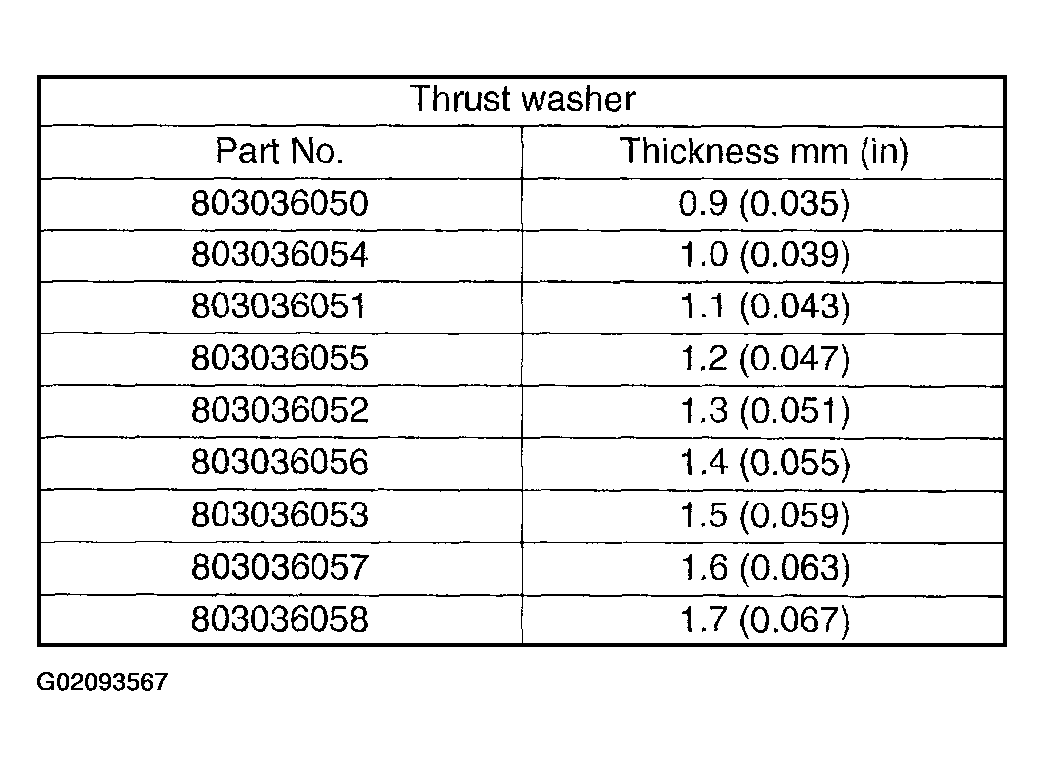

Fig 2: Thrust Washer Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.
