Automatic Transmission
›
General Description
›
Component
›
Transfer And Extension Case
Transfer And Extension Case

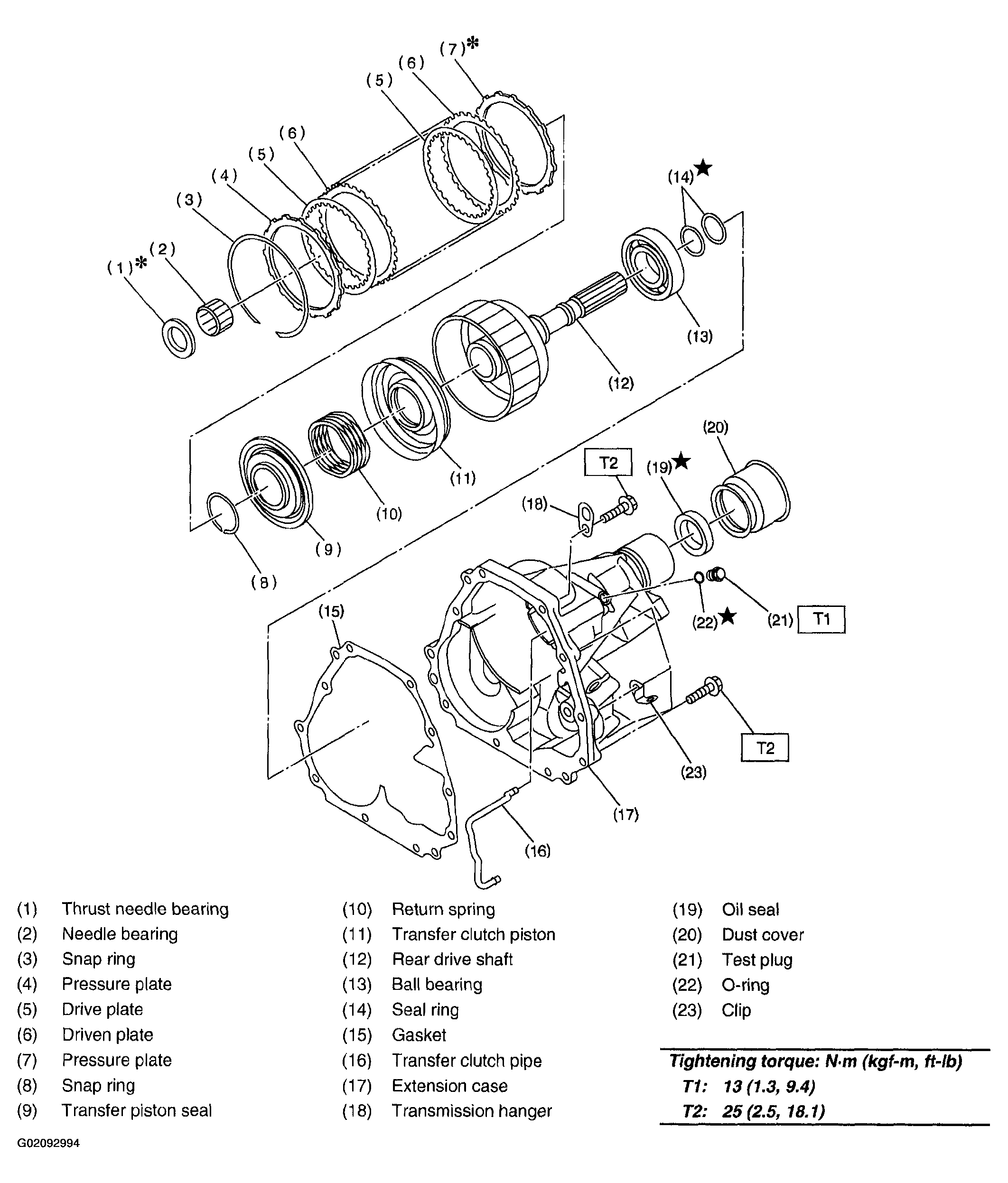

Fig 1: Exploded View Of Transfer & Extension Case With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
