Line Pressure Test
›
Measurement
›
Evaluation
Line Pressure Test: Measurement: Evaluation

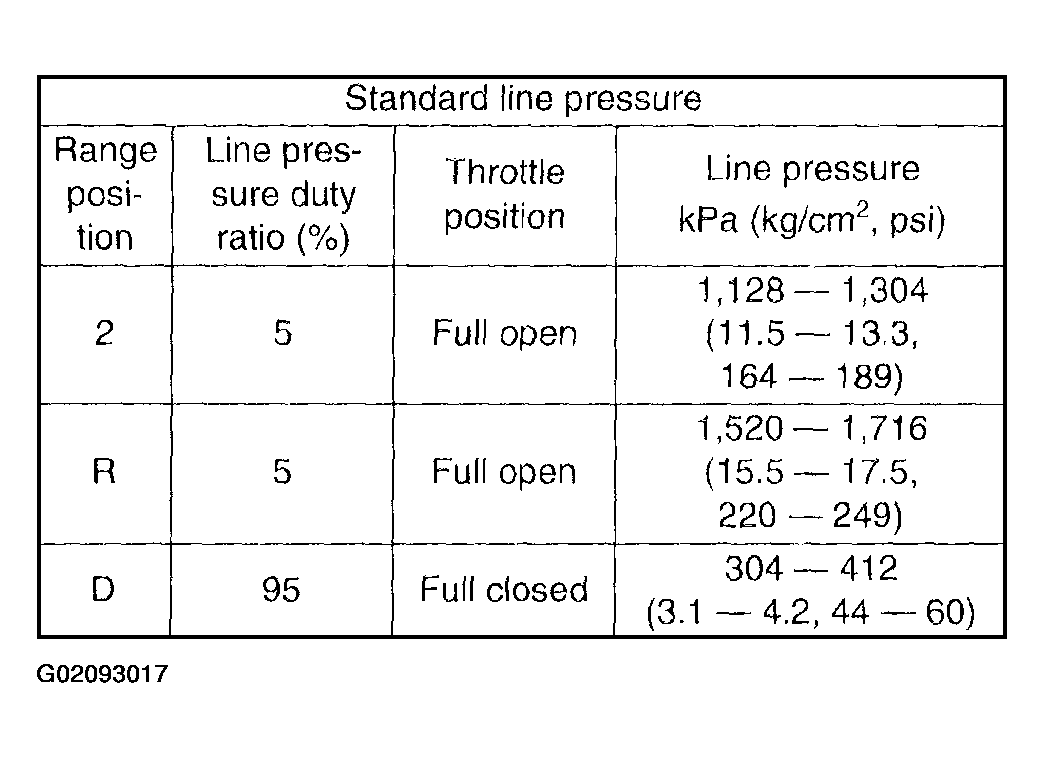

Fig 1: Standard Line Pressure Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
