Front Exhaust Pipe: Installation

Install the front oxygen (A/F) sensor and the rear oxygen sensor. Refer to INSTALLATION , Front Oxygen (A/F) Sensor and INSTALLATION , Rear Oxygen Sensor.
Install the front exhaust pipe to center exhaust pipe.
NOTE: Replace the gaskets with new ones.

Tightening torque:
1. 30 N.m (3.1 kgf-m, 22.4 ft-lb)

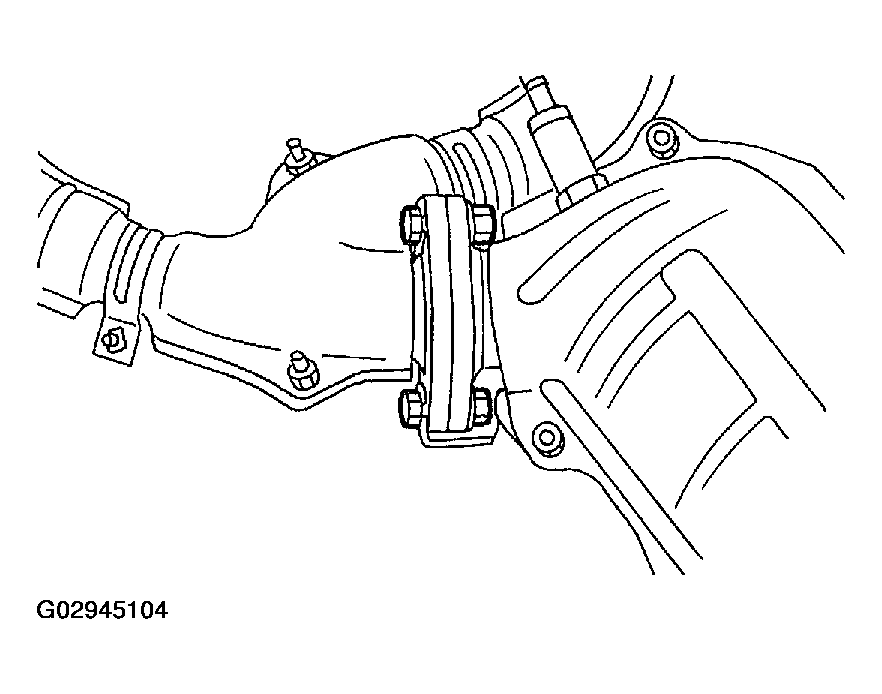

Fig 1: Installing Front Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the front and center exhaust pipe assembly to vehicle.
Temporarily tighten the bolt which installs front and center exhaust pipe assembly to hanger bracket.

Fig 2: Tightening Front And Center Exhaust Pipe Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Tighten the nuts which hold front exhaust pipe onto cylinder heads.
Tightening torque:
1. 30 N.m (3.1 kgf-m, 22.4 ft-lb)

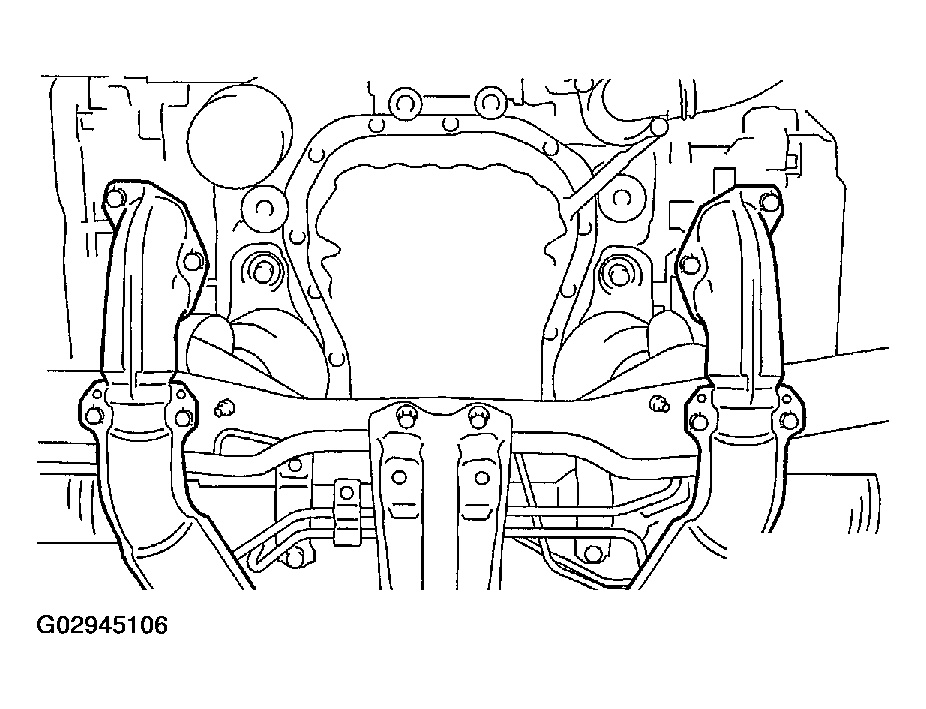

Fig 3: Tightening Front Exhaust Pipe Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Tighten the bolts which install front and center exhaust pipe assembly to rear exhaust pipe.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)

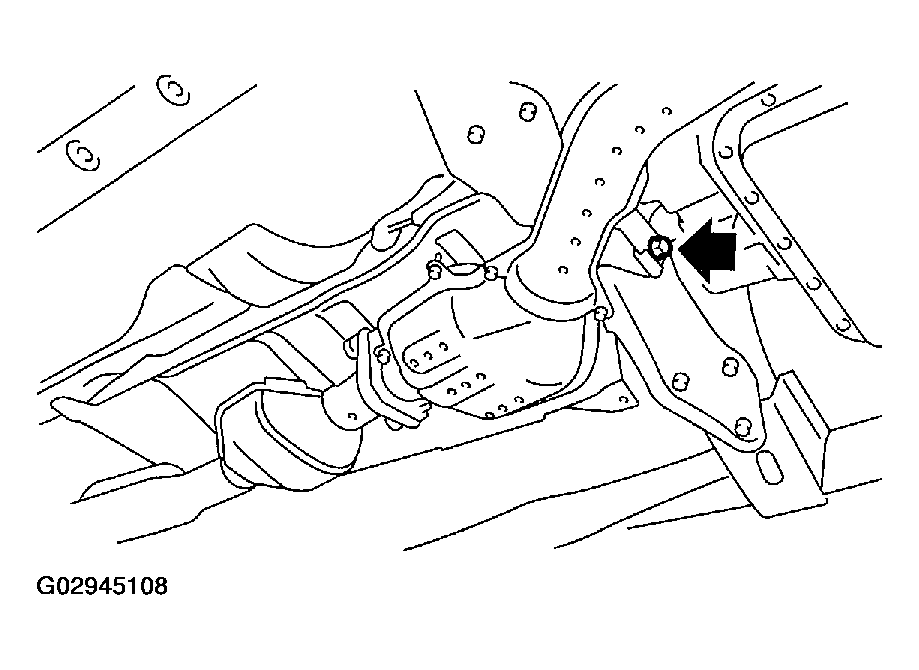

Fig 4: Tightening Front & Center Exhaust Pipe Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolt which holds front and center exhaust pipe assembly to hanger bracket.
Tightening torque:
1. 35 N.m (3.6 kgf-m, 26.0 ft-lb)

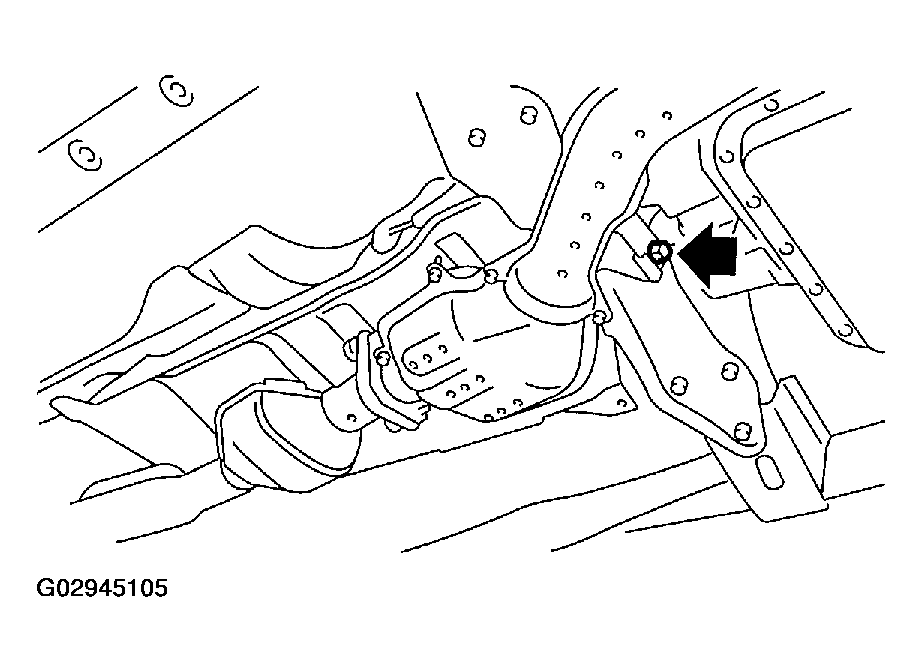

Fig 5: Tightening Front & Center Exhaust Pipe Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the rear oxygen sensor connector.

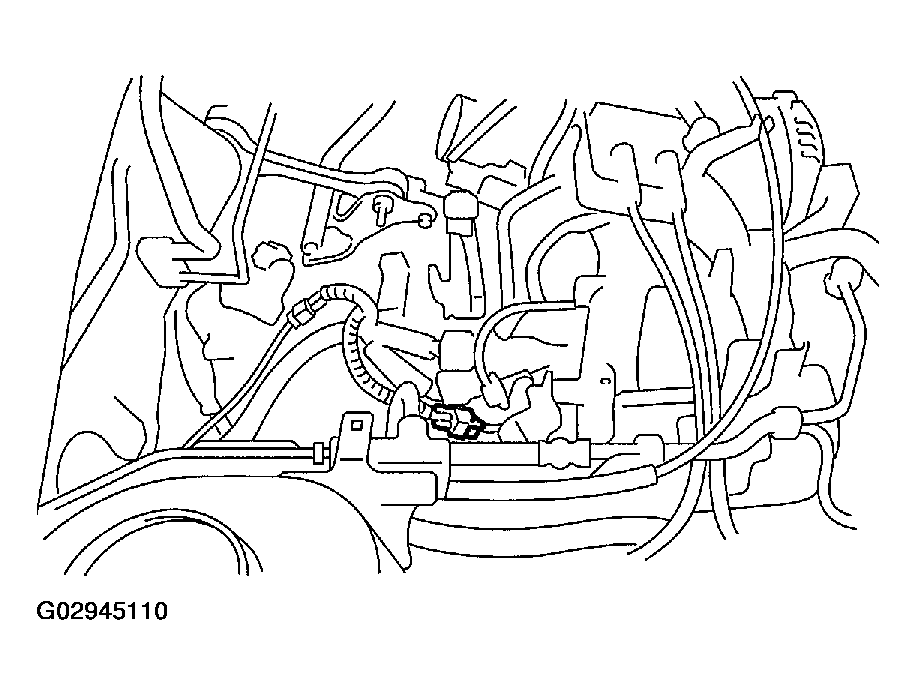

Fig 6: Connecting Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the front oxygen (A/F) sensor connector.

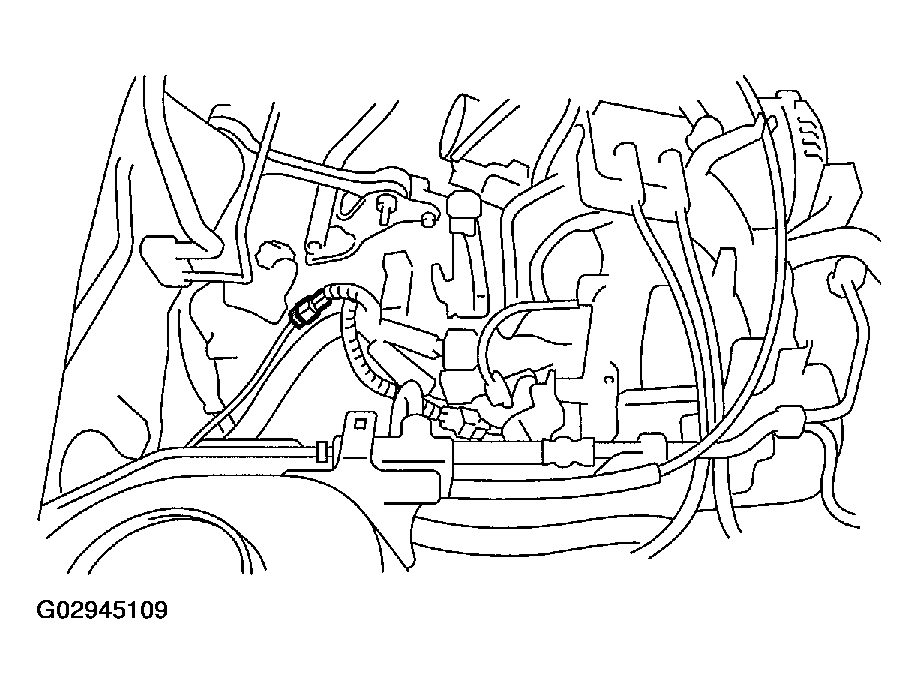

Fig 7: Connecting Front Oxygen (A/F) Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground cable to battery.

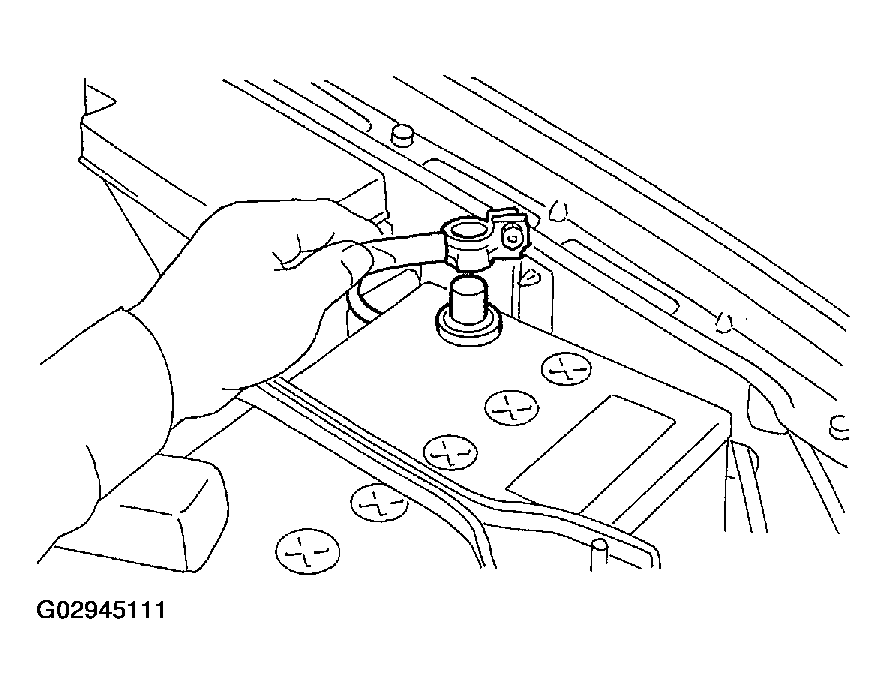

Fig 8: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
