Front Differential Assembly: Removal

  1. Remove the manual transmission assembly from vehicle. Refer to REMOVAL , Manual Transmission Assembly.
  2. Remove the transfer case with extension case assembly. Refer to REMOVAL , Transfer Case and Extension Case Assembly.
  3. Remove the transmission case. Refer to REMOVAL , Transmission Case.
  4. Remove the drive pinion shaft assembly. Refer to REMOVAL , Drive Pinion Shaft Assembly.
  5. Remove the main shaft assembly.

    Refer to REMOVAL , Main Shaft Assembly (Single-Range).

  6. Remove the differential assembly.
    NOTE: Be careful not to confuse the right and left roller bearing outer races.

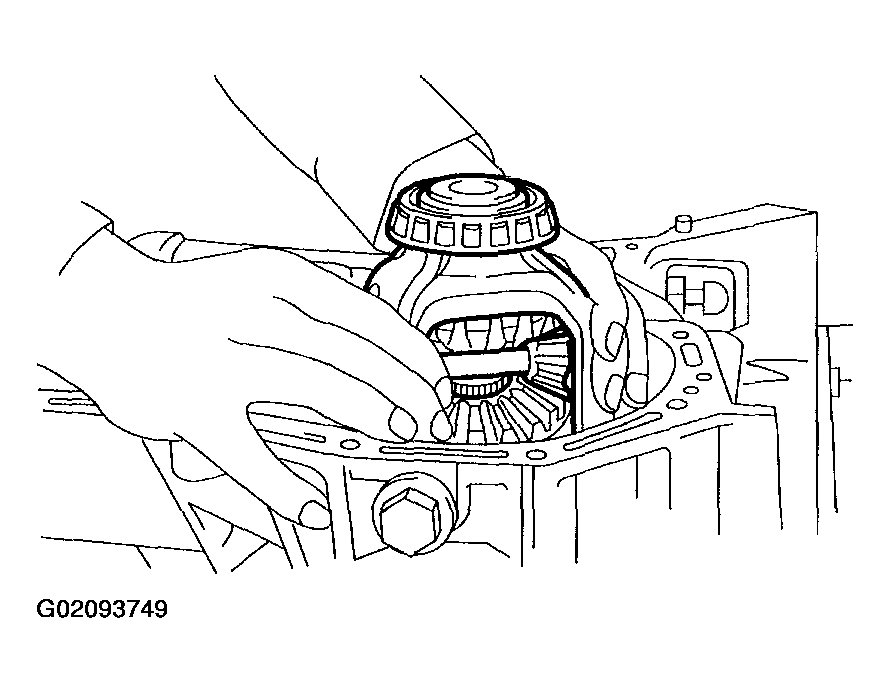

    7. Fig 1: Removing Differential Assembly
    G02093749Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the differential side retainers using ST.

    ST 499787000 WRENCH ASSY

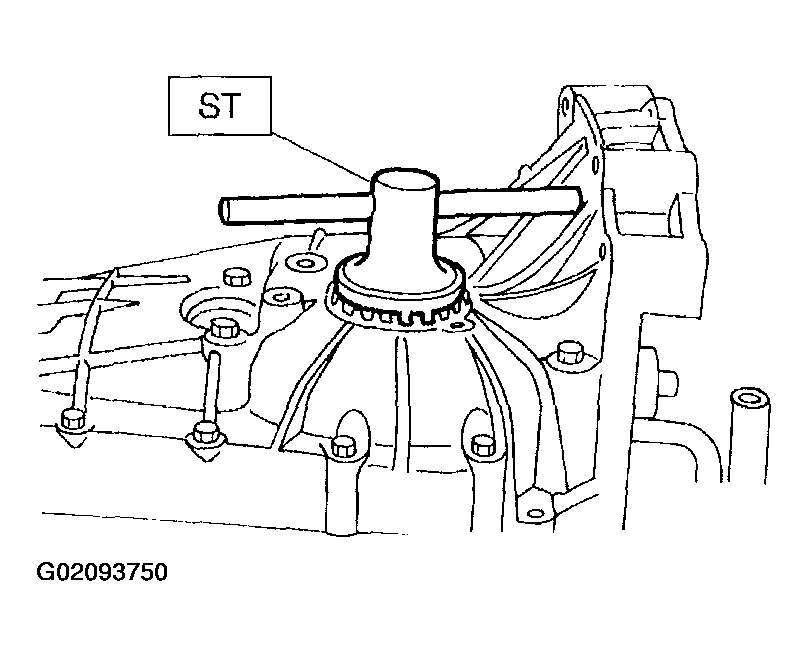

    8. Fig 2: Removing Differential Side Retainers
    G02093750Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the bearing outer race from transmission case.

    ST 398527700 PULLER ASSY
