Main Switch

Measure switch resistance.

Driver's switch:

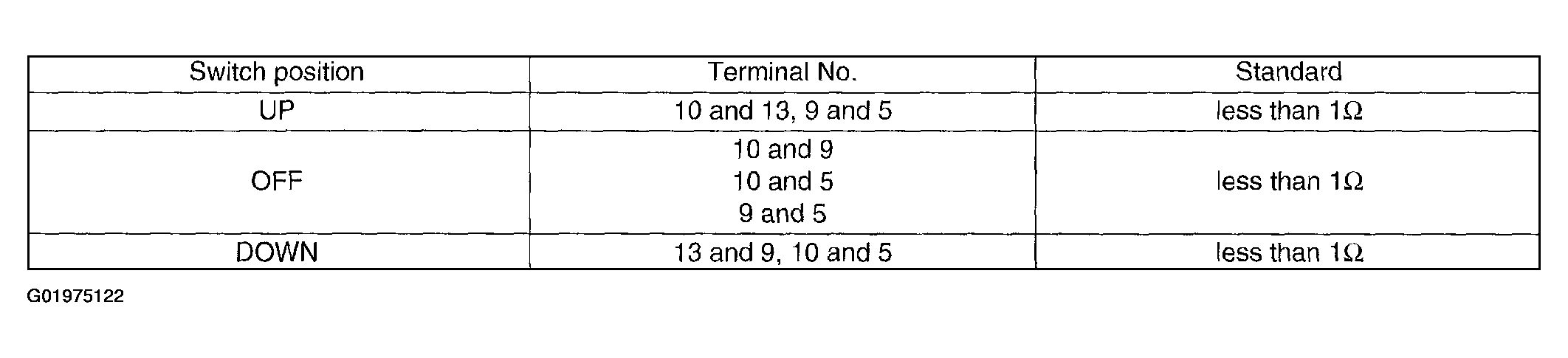

Fig 1: Main Switch: Driver's Switch Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.

Front passenger's switch:

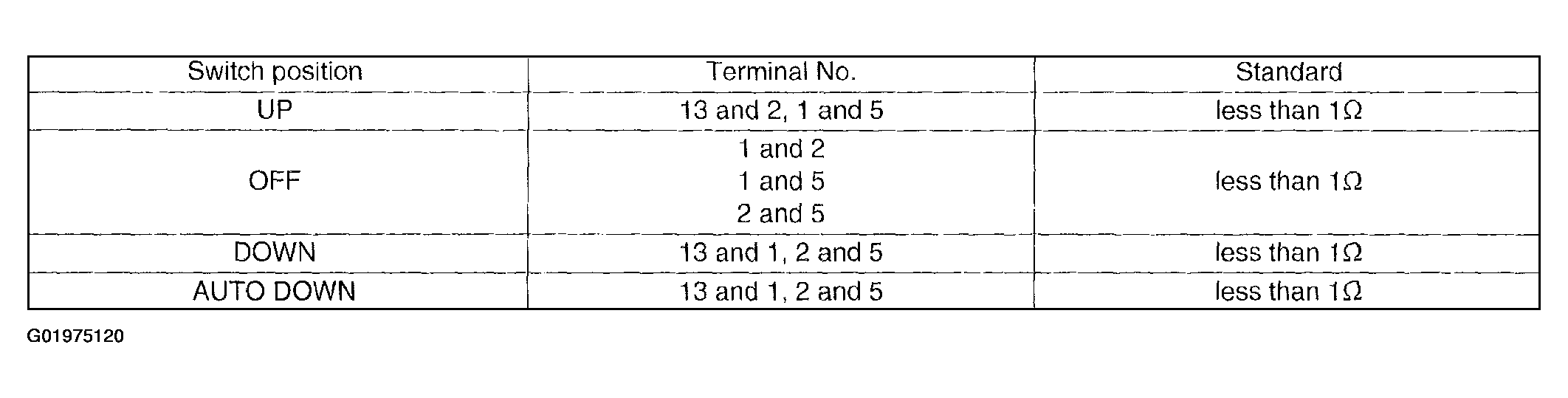

Fig 2: Main Switch: Front Passenger's Switch Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.

Rear left switch:

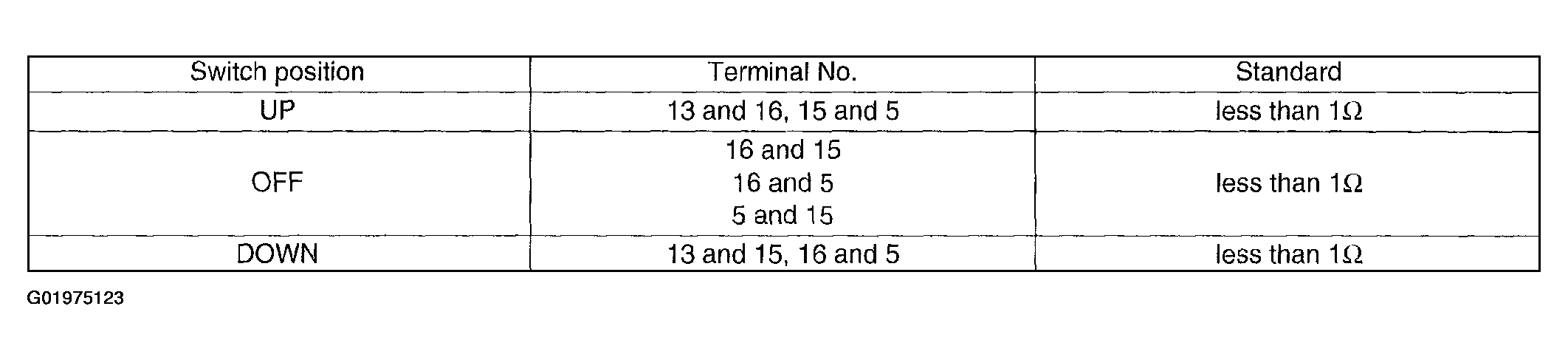

Fig 3: Main Switch: Rear Left Switch Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.

Rear right switch:

Fig 4: Main Switch: Rear Right Switch Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the main switch.
