Conditions For Abs Sequence Control

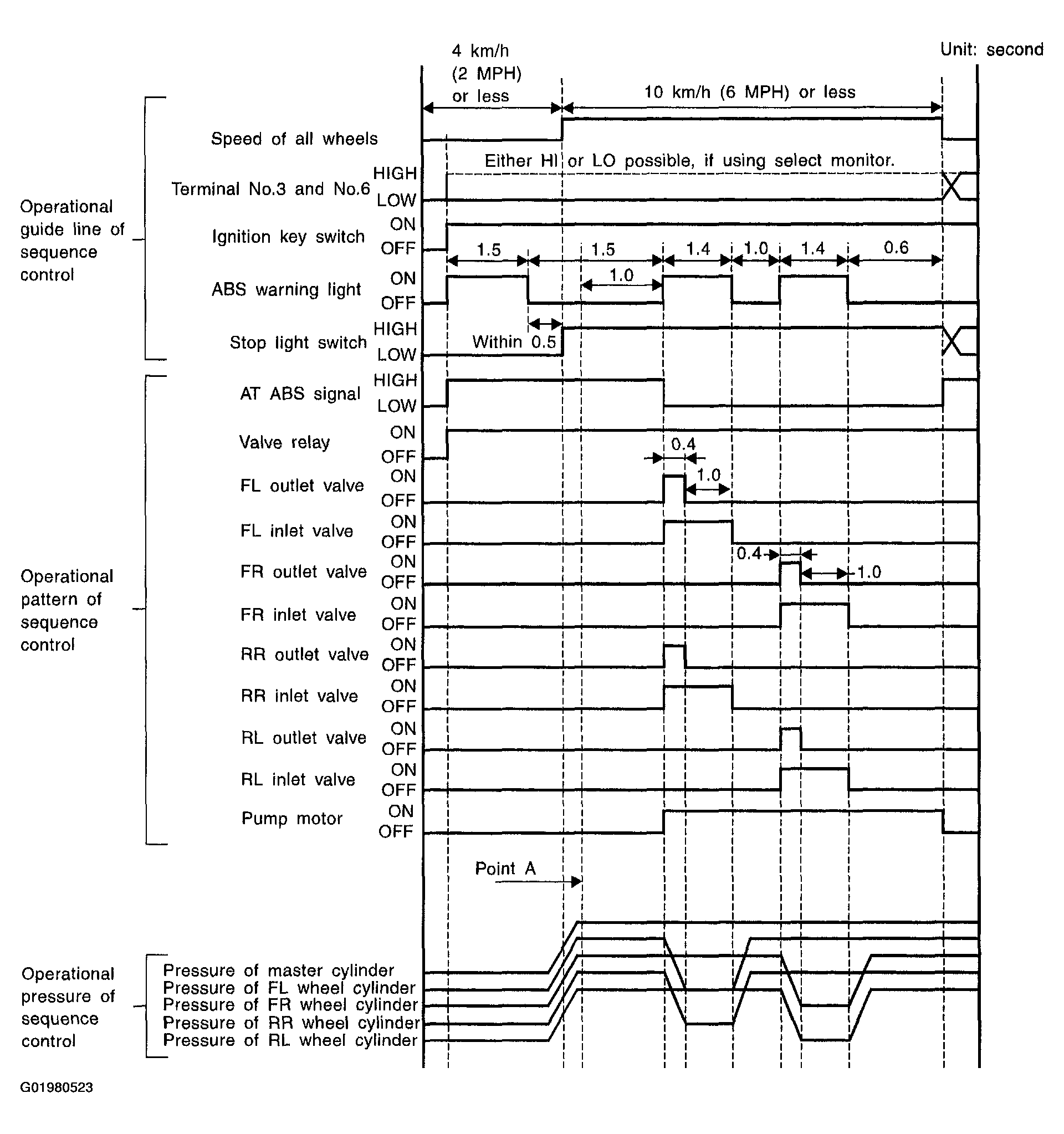

Fig 1: Conditions For ABS Sequence Control Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

• When the select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by diagnosis connector.
