Rear Abs Sensor: Removal
- Disconnect the ground terminal from battery.
- Jack-up the vehicle, support it with rigid racks, and remove the wheel.
- Remove the rear seat and disconnect the rear ABS sensor connector.
- Remove the rear sensor harness bracket from rear trailing link and bracket.

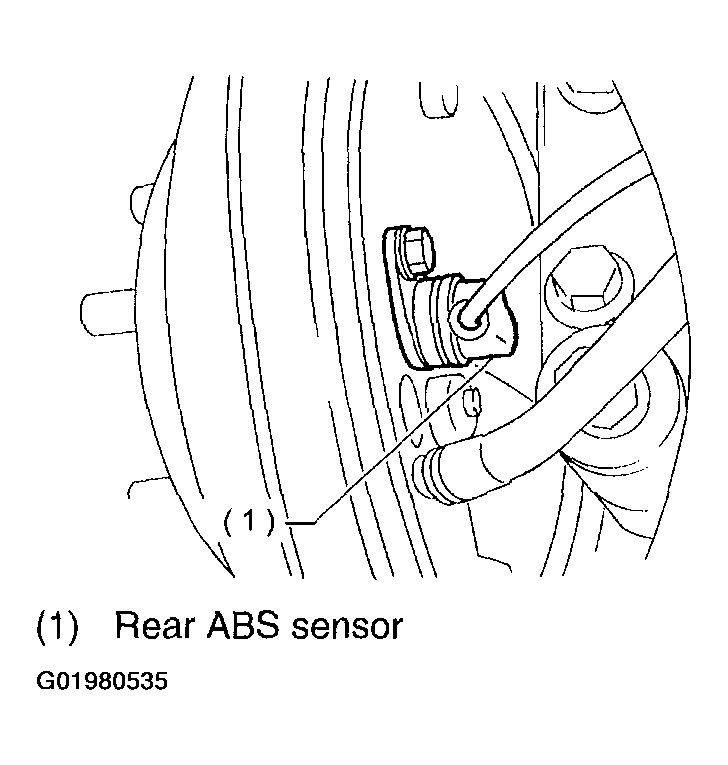

- Remove the rear ABS sensor from back plate.
