Electrical Specification
Electrical Specification

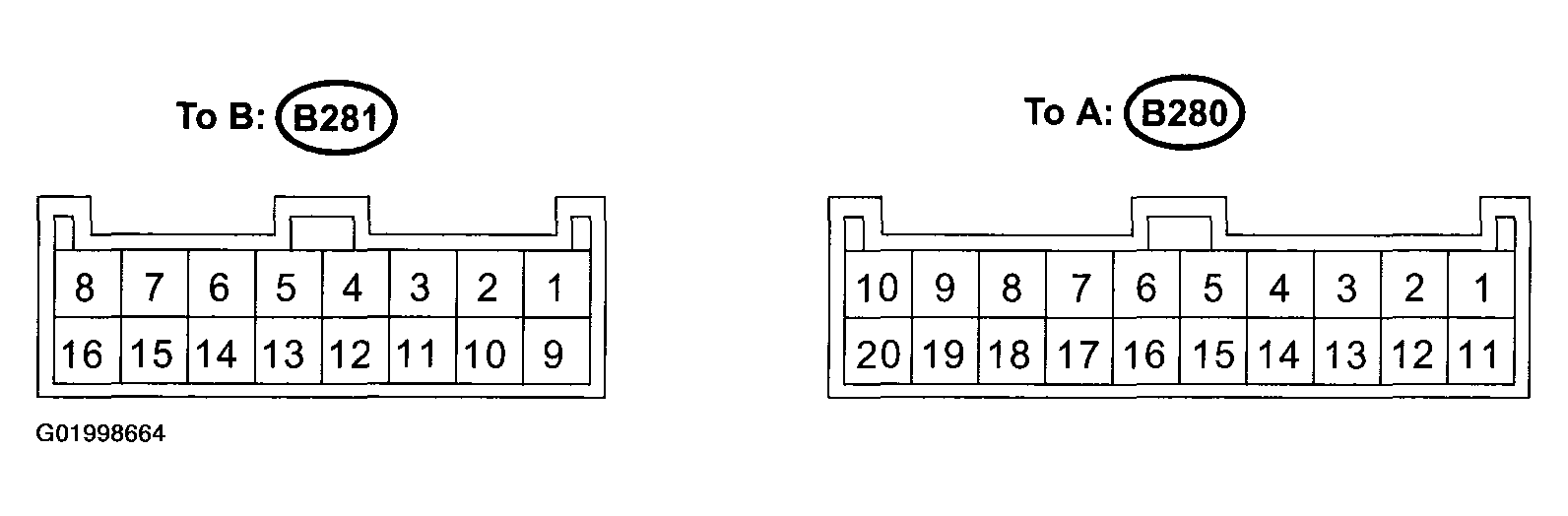

Fig 1: Identifying Electrical Connectors
Courtesy of SUBARU OF AMERICA, INC.

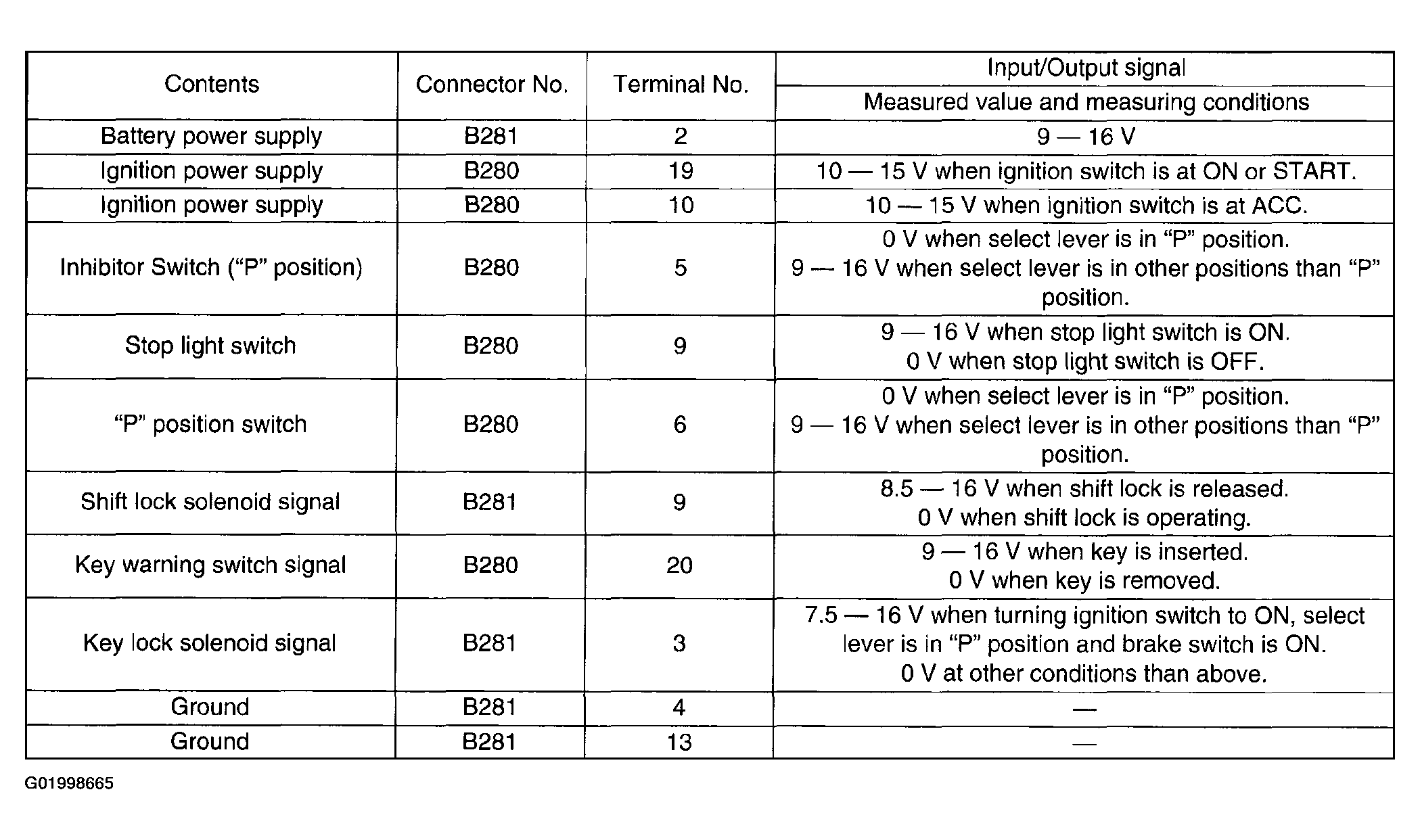

Fig 2: Electrical Specification Identification Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
