A/T Shift Lock System: Inspection

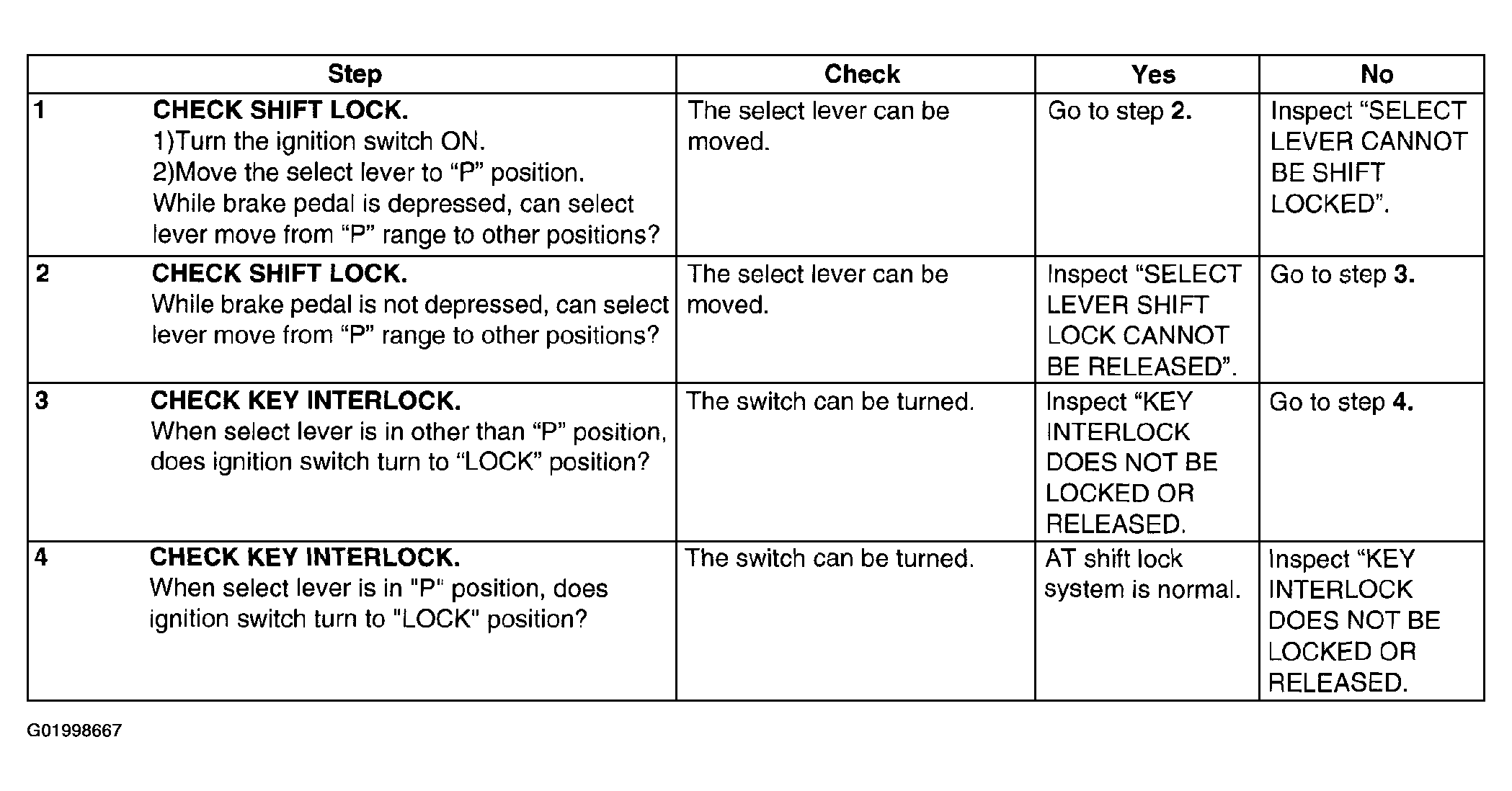

Fig 1: A/T Shift Lock System Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
