A/T Control Systems
›
A/T Shift Lock System
›
Schematic
A/T Shift Lock System: Schematic

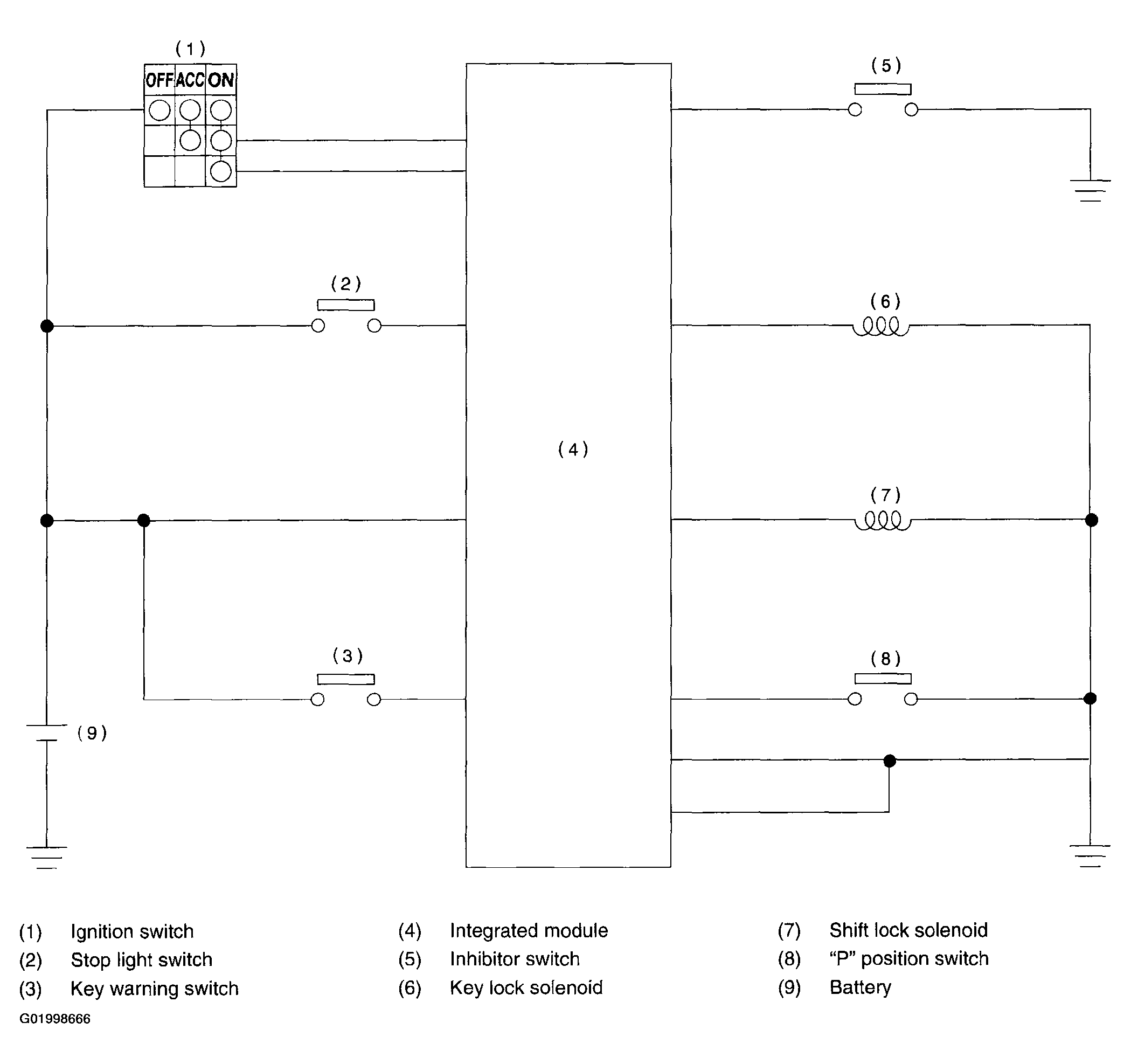

Fig 1: A/T Shift Lock System Schematic
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
