Select Lever Shift Lock Cannot Be Released

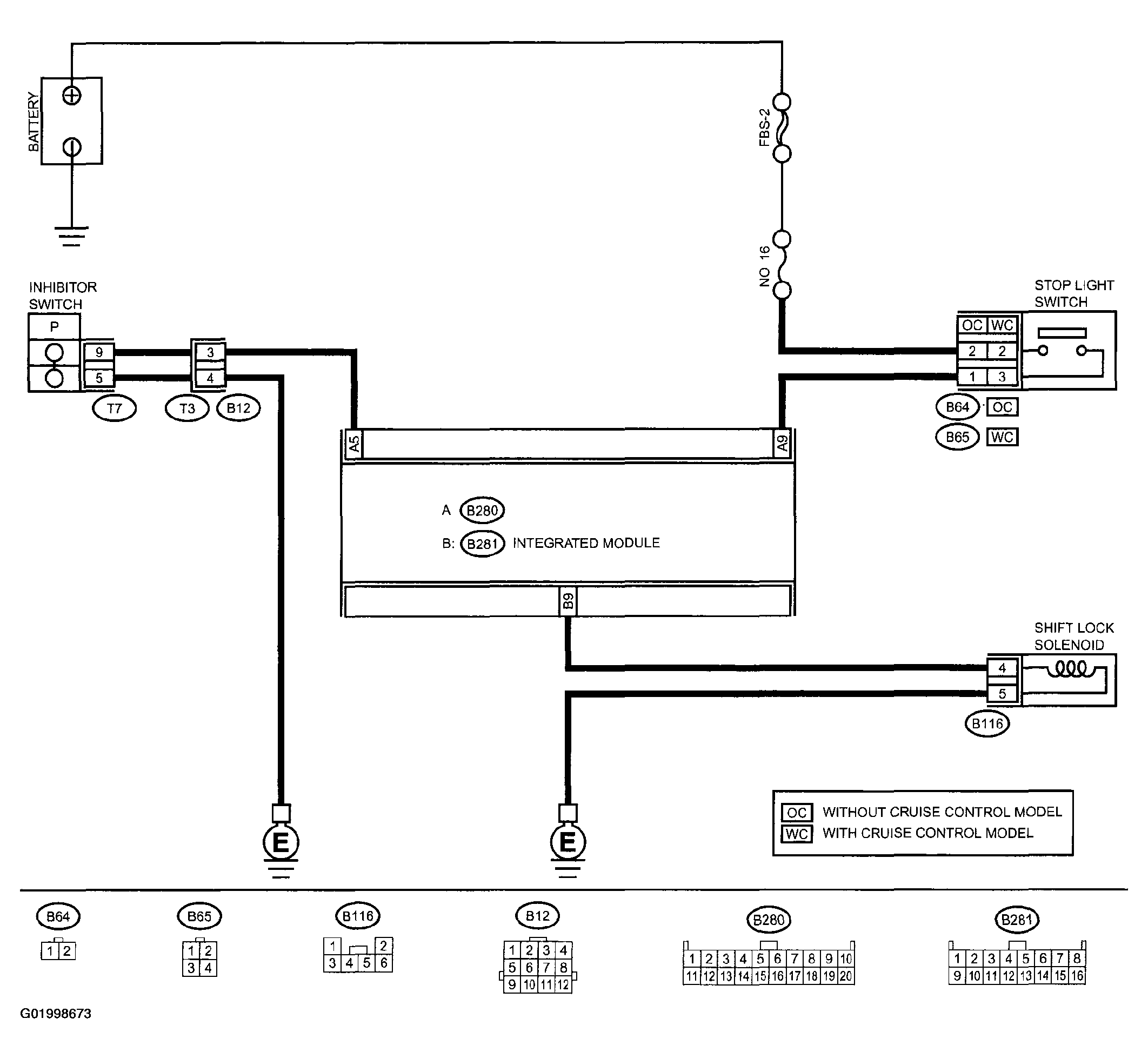

Fig 1: Select Lever Shift lock Cannot Be Released Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

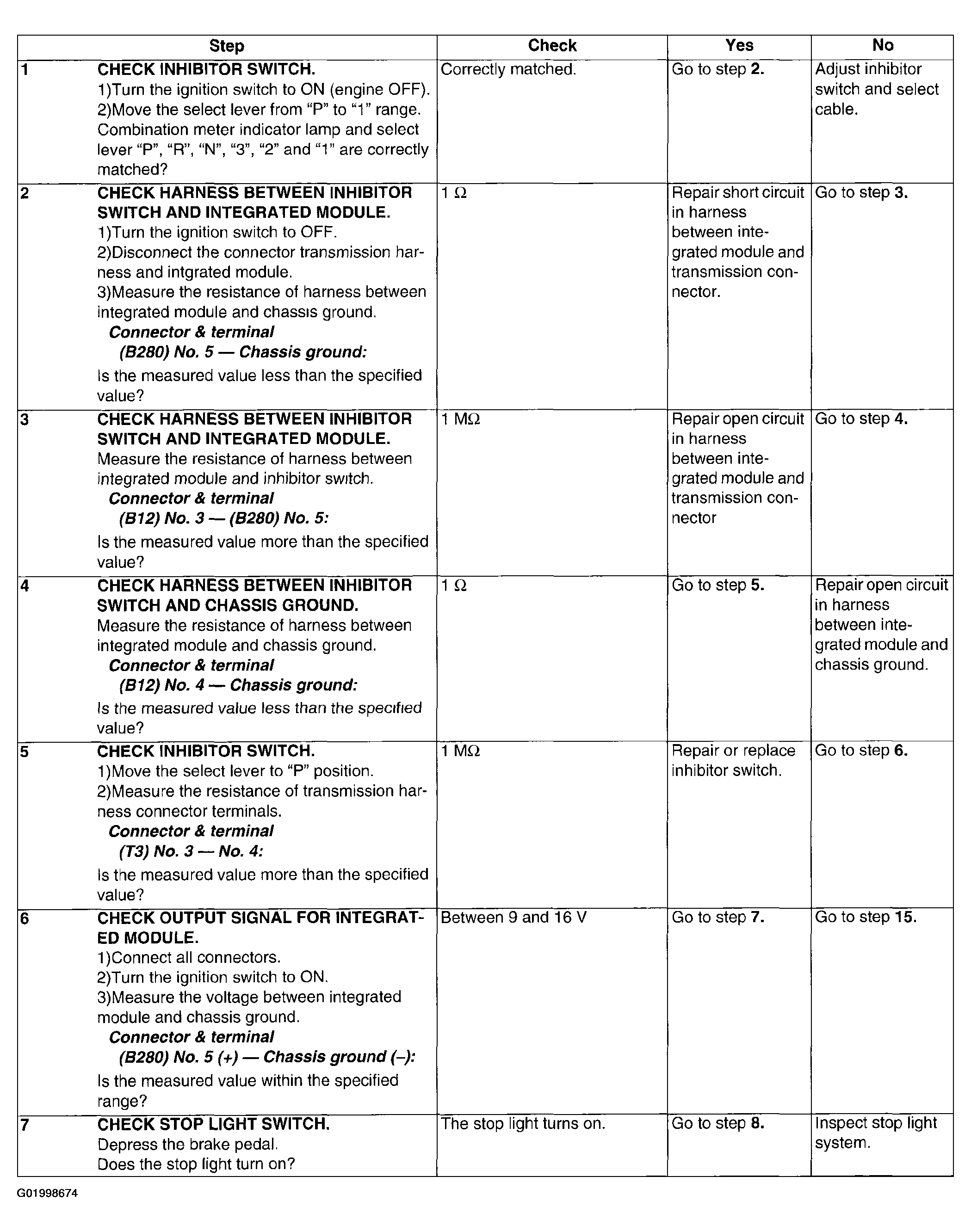

Fig 2: Select Lever Shift Lock Cannot Be Released Trouble Shooting Chart (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

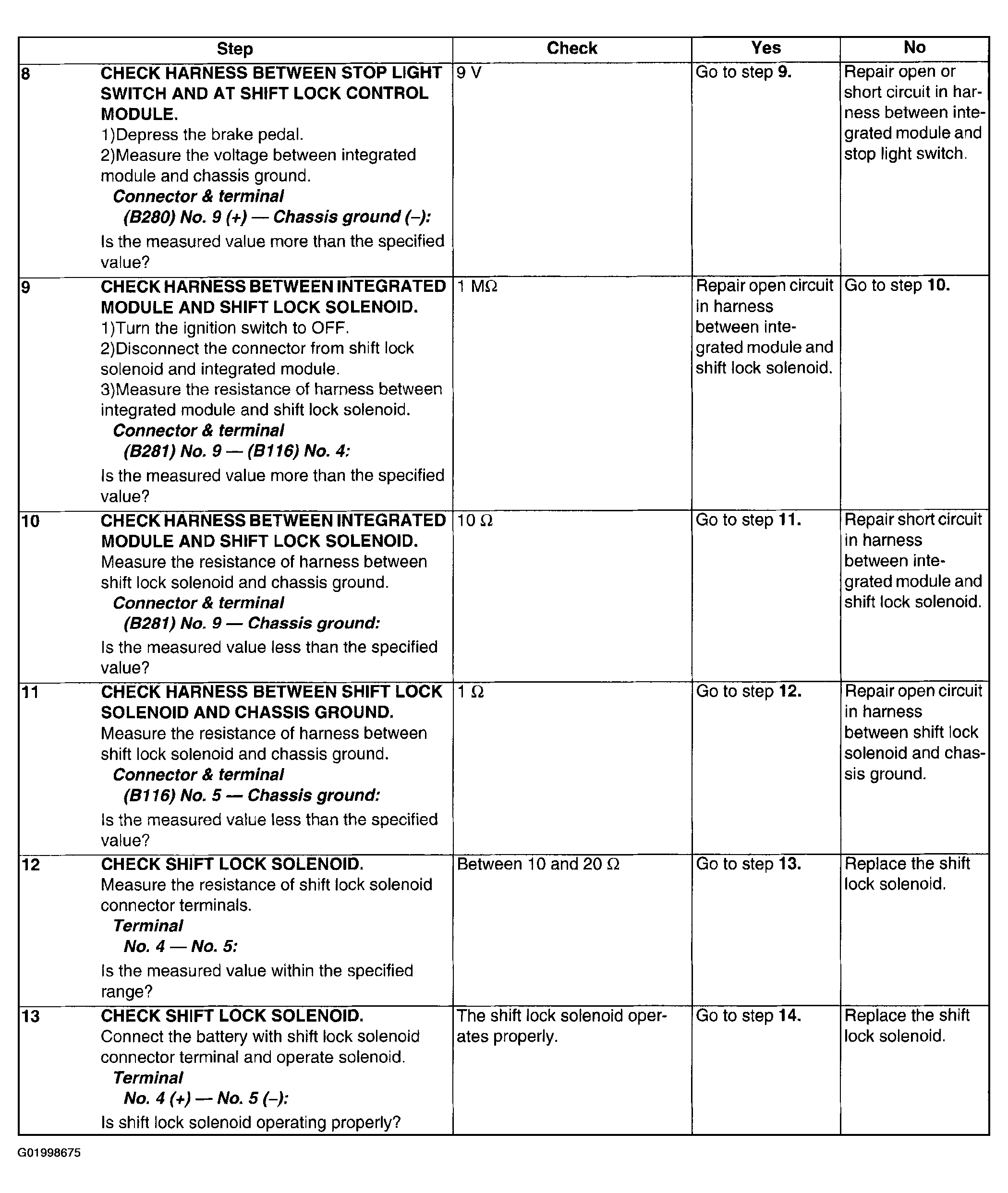

Fig 3: Select Lever Shift Lock Cannot Be Released Trouble Shooting Chart (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

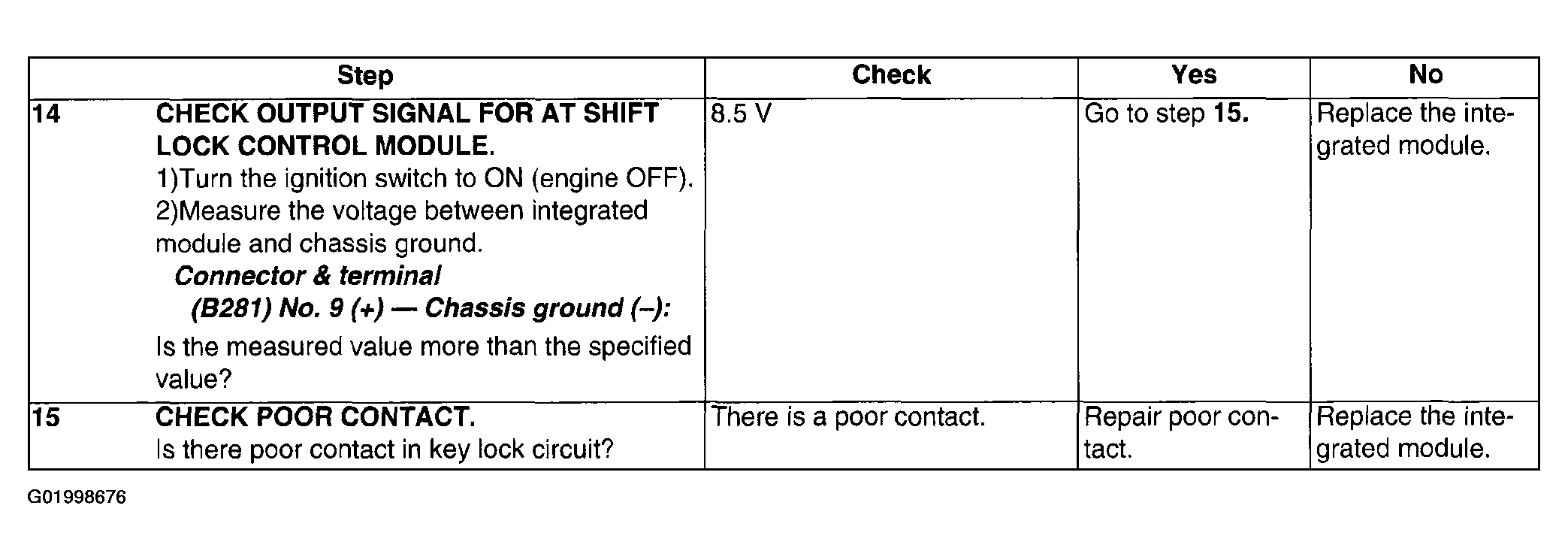

Fig 4: Select Lever Shift Lock Cannot Be Released Trouble Shooting Chart (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
