Automatic Transmission - Mechanism & Function
›
ELECTROHYDRAULIC Control System
›
Input Signals
Input Signals

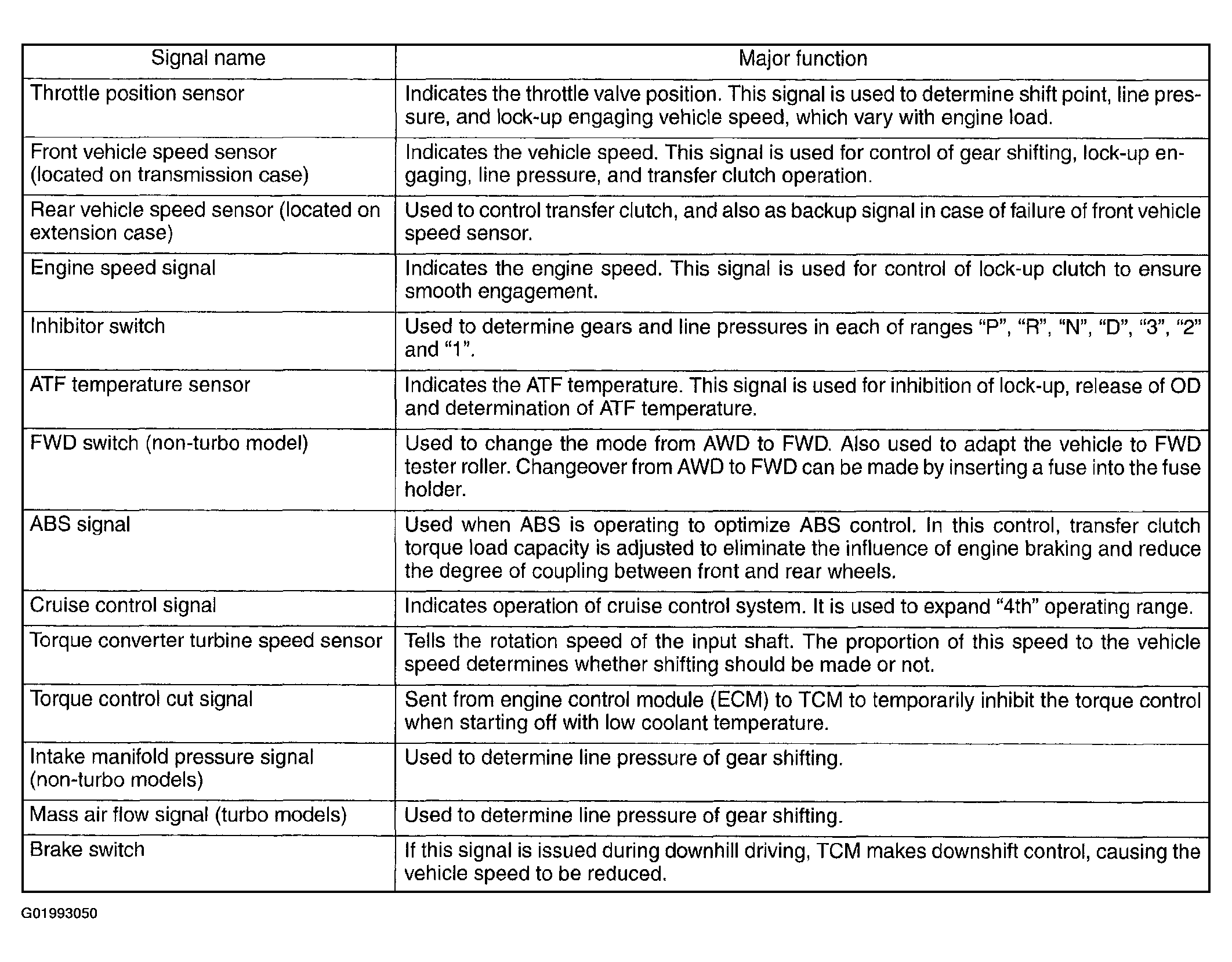

Fig 1: Electrohydraulic Control System Input Signals chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
