Automatic Transmission - Mechanism & Function
›
Transmission Control Module (TCM)
›
Control System
Control System

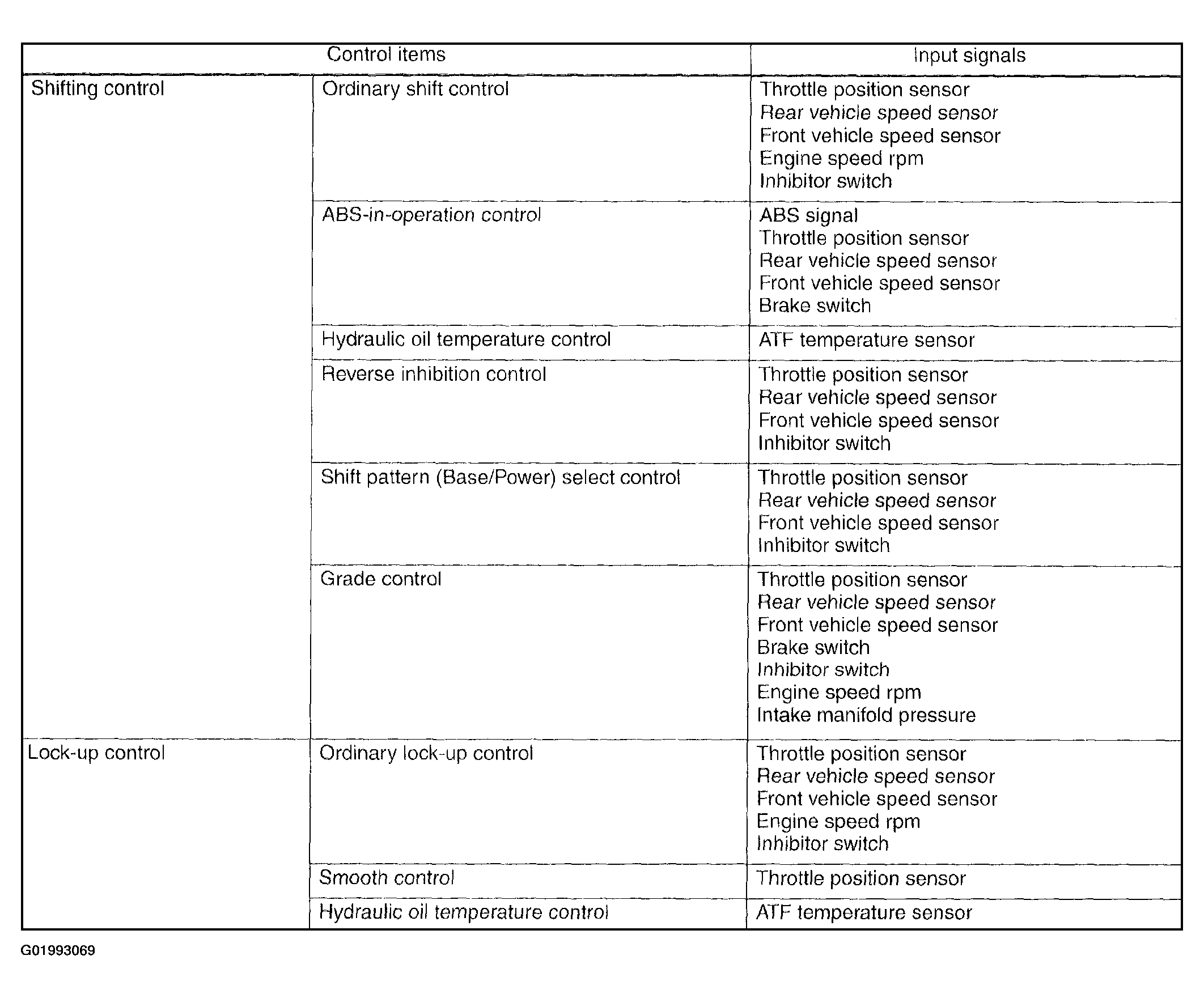

Fig 1: Transmission Control Module, Control System (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

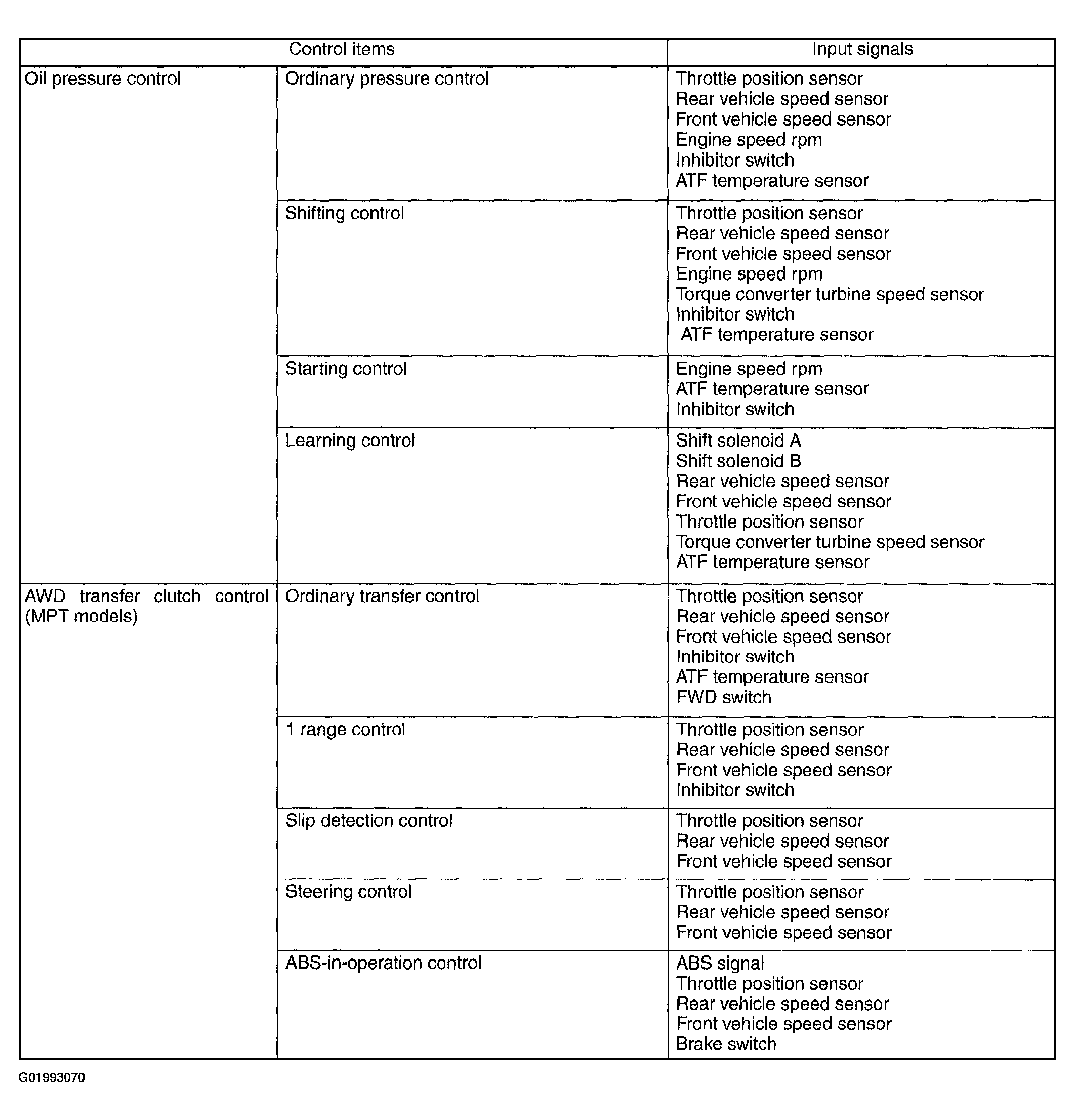

Fig 2: Transmission Control Module, Control System (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

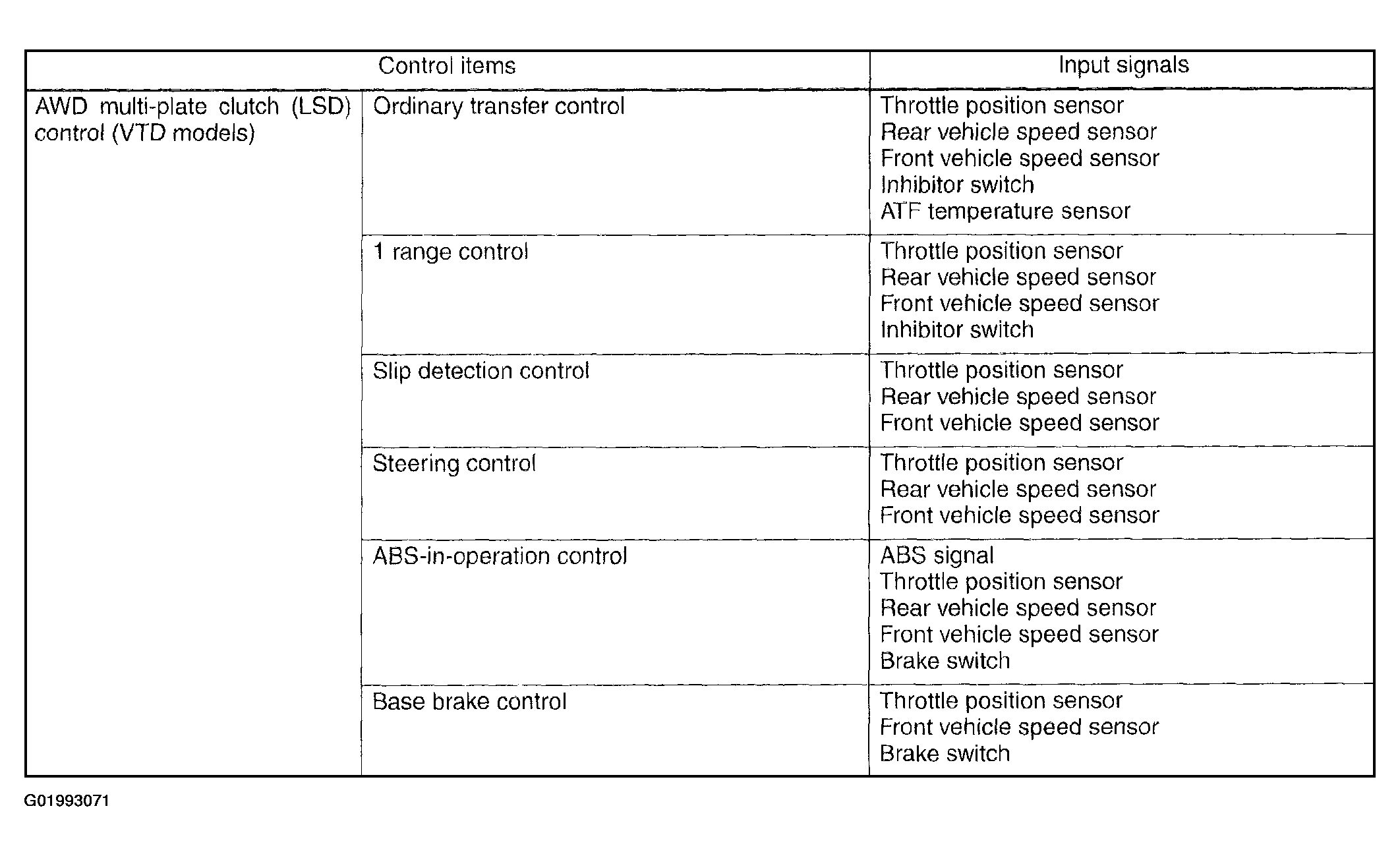

Fig 3: Transmission Control Module, Control System (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
