Body & Frame
›
Door Locks
›
Door Locks & Anti-Theft Systems
›
Keyless Entry System
›
Electrical Specification
›
Keyless Entry Control Module
Keyless Entry Control Module
Fig 1: Keyless Entry Control Module Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

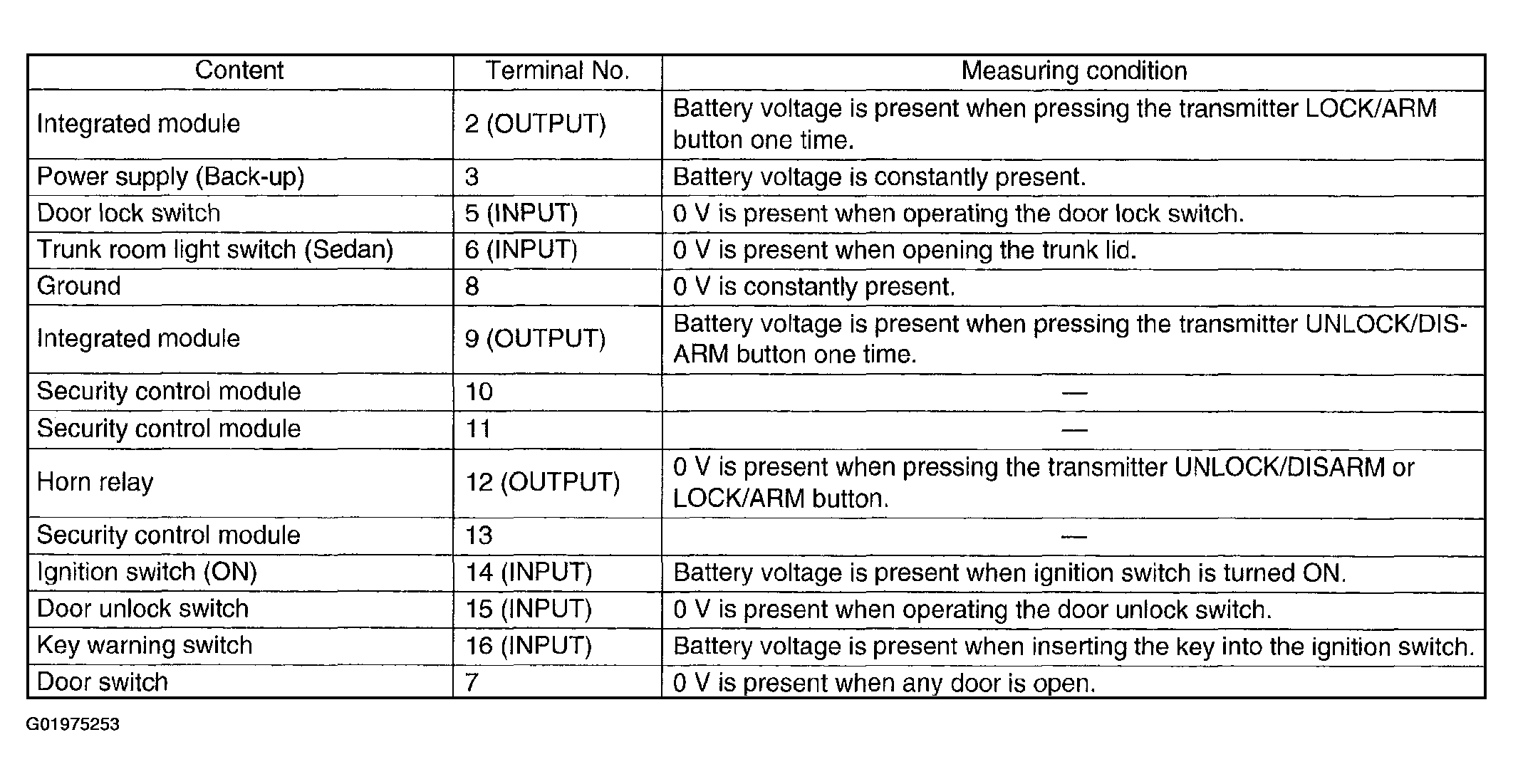

Fig 2: Keyless Entry Control Module Input/Output Signals (Pin Voltage) Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
