Lubrication System - Mechanism & Function
›
Engine Oil Flow
›
Turbo Models
Turbo Models

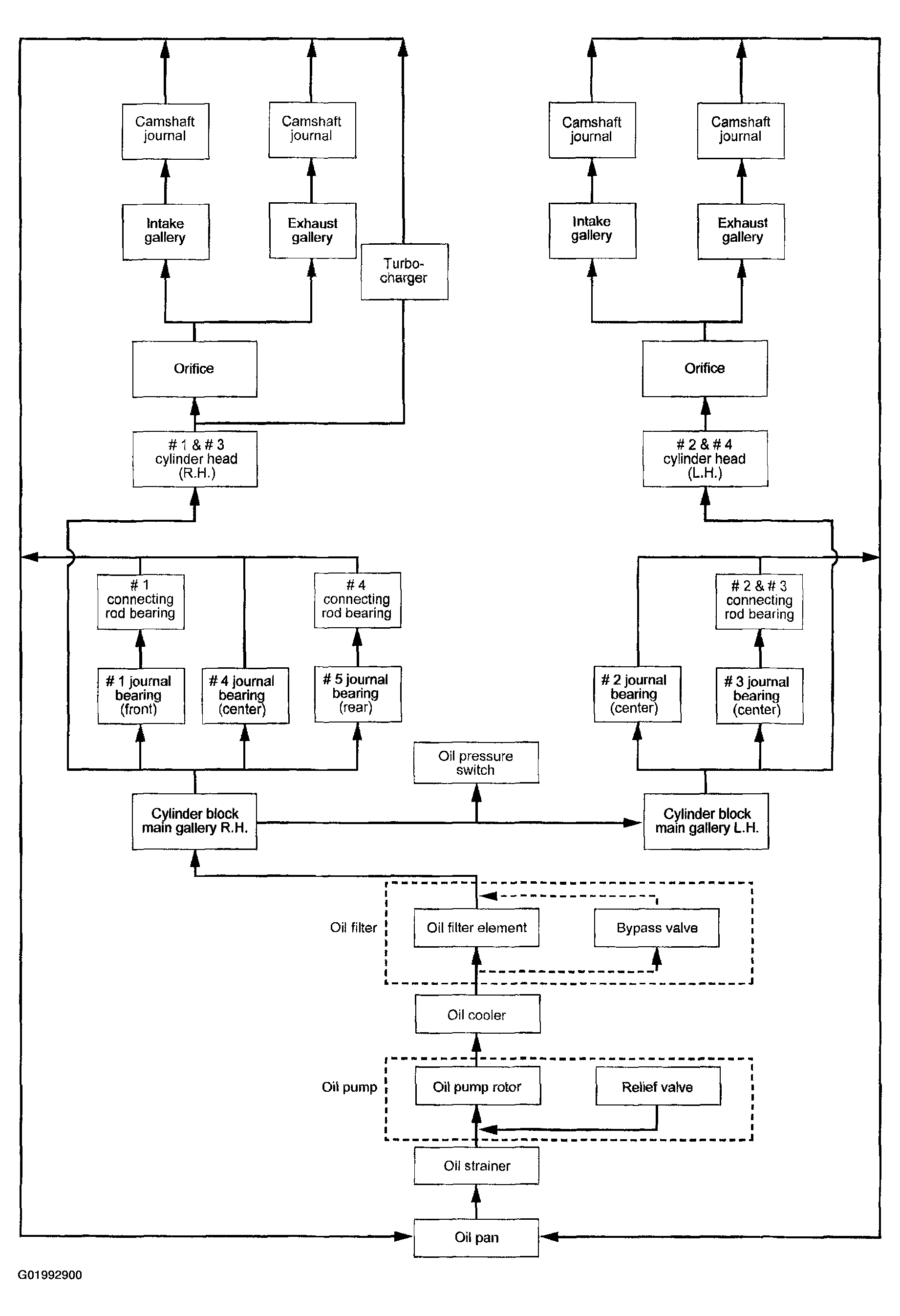

Fig 1: Engine Oil Flow (Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
