Lubrication System - Mechanism & Function
›
General
›
Turbo Models
Turbo Models

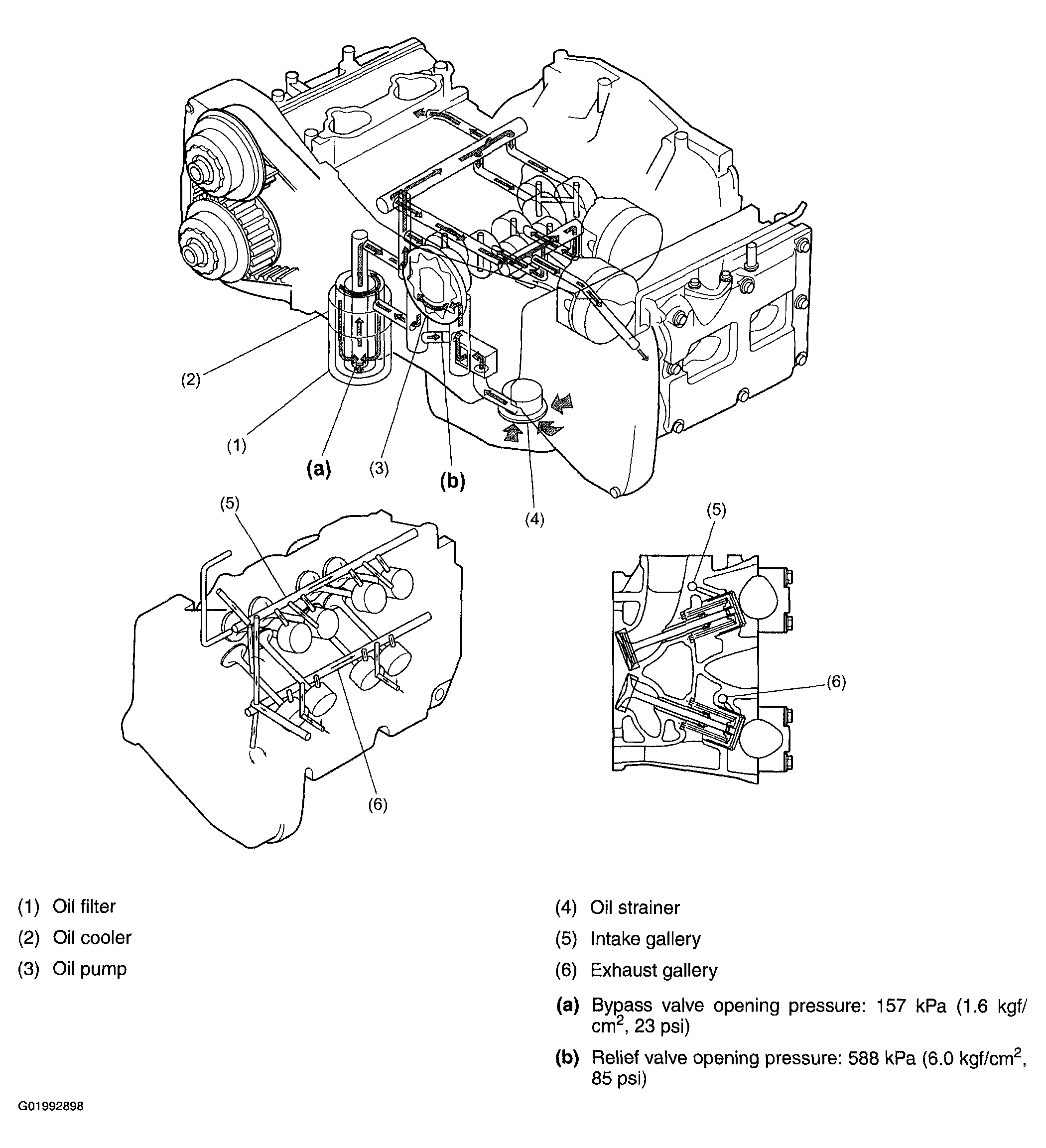

Fig 1: Identifying Lubrication System (Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
