Fuel Tank: Installation

Support the fuel tank with a transmission jack and push the fuel tank harness into the access hole with the grommet.
Set the fuel tank and temporarily tighten the bolts of fuel tank bands.
WARNING: An assistant is required to perform this work.

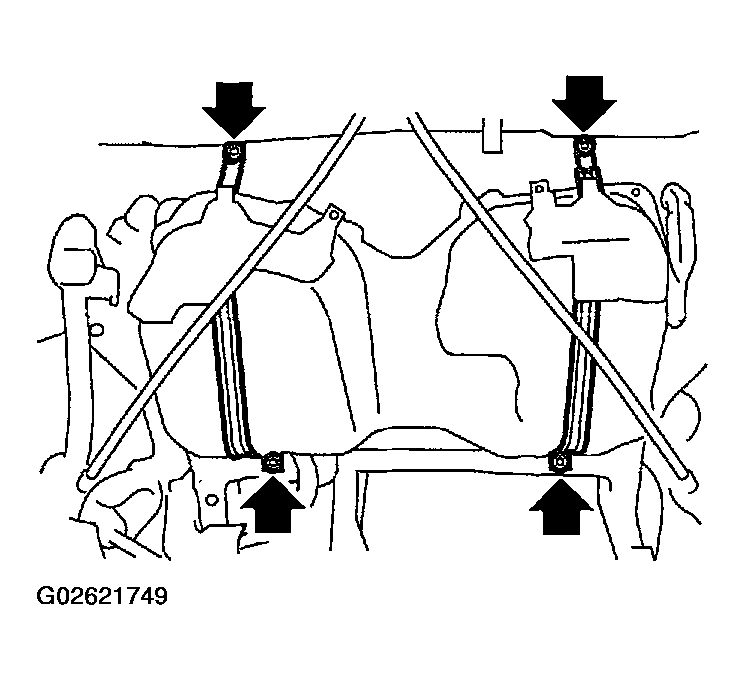

Fig 1: Setting Fuel Tank & Temporarily Tightening Bolts Of Fuel Tank Bands
Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel filler hose (A) and air vent hose (B).

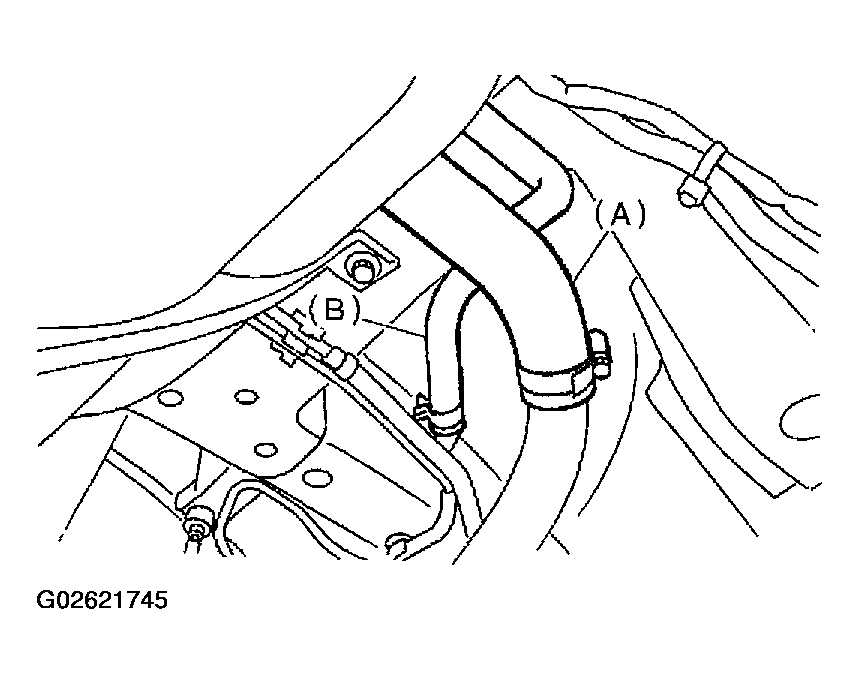

Fig 2: Connecting Fuel Filler Hose & Air Vent Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel hoses, and hold them with clips and quick connector. See INSTALLATION , Fuel Delivery, Return and Evaporation lines.

Fig 3: Connecting Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the drain valve.

Fig 4: Connecting Connector To Drain Valve
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the pressure control solenoid valve.
Connect the evaporation hose to the canister and secure with the clamp.

Fig 5: Connecting Evaporation Hose To Canister & Securing With Clamp
Courtesy of SUBARU OF AMERICA, INC.

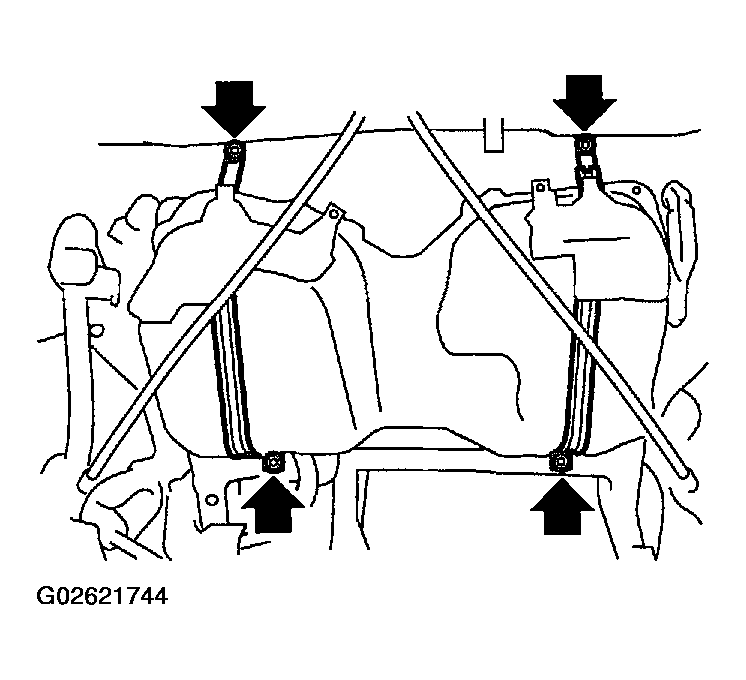

Tighten the band mounting bolts.
1. Tightening torque: 33 N.m (3.4 kgf-m, 25 ft-lb)
Fig 6: Tightening Fuel Tank Bands Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear crossmember, see INSTALLATION , Rear Crossmember.
Connect the connectors (A) to the fuel tank cord and plug the service hole with grommet (B).

Fig 7: Connecting Connectors To Fuel Tank Cord
Courtesy of SUBARU OF AMERICA, INC.
Set the rear seat and floor mat.
Connect the connector to the fuel pump relay.

Fig 8: Connecting Connector To Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.
