FixVault
Home
›
Subaru
›
2003
›
Impreza RS, Standard
›
Repair and Diagnosis
›
Suspension
›
Wheel Alignment
›
Specifications & Procedures
›
General Description
›
Preparation Tool
›
Special Tools
Special Tools

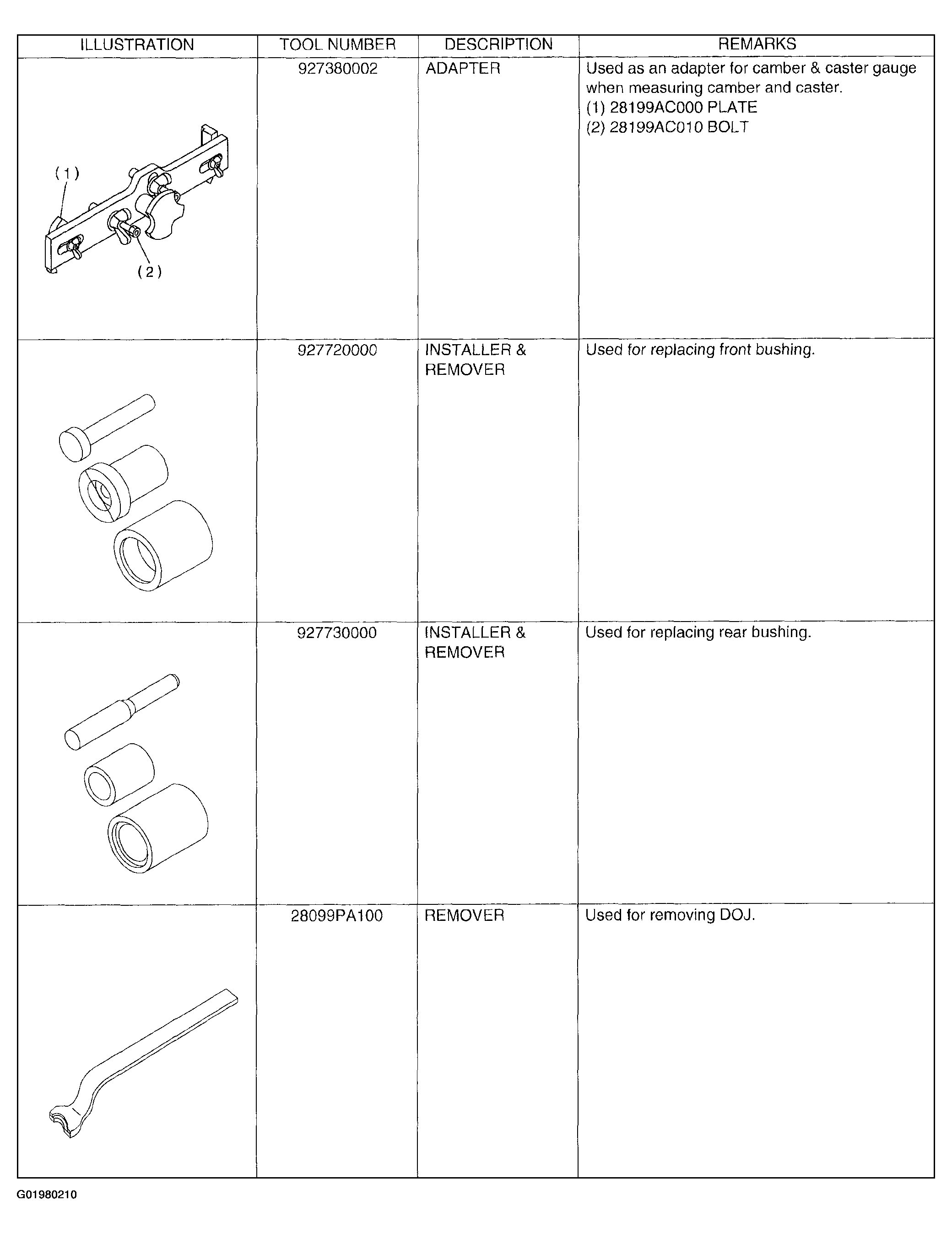

Fig 1: Front Suspension Special Tools Chart
Courtesy of SUBARU OF AMERICA, INC.

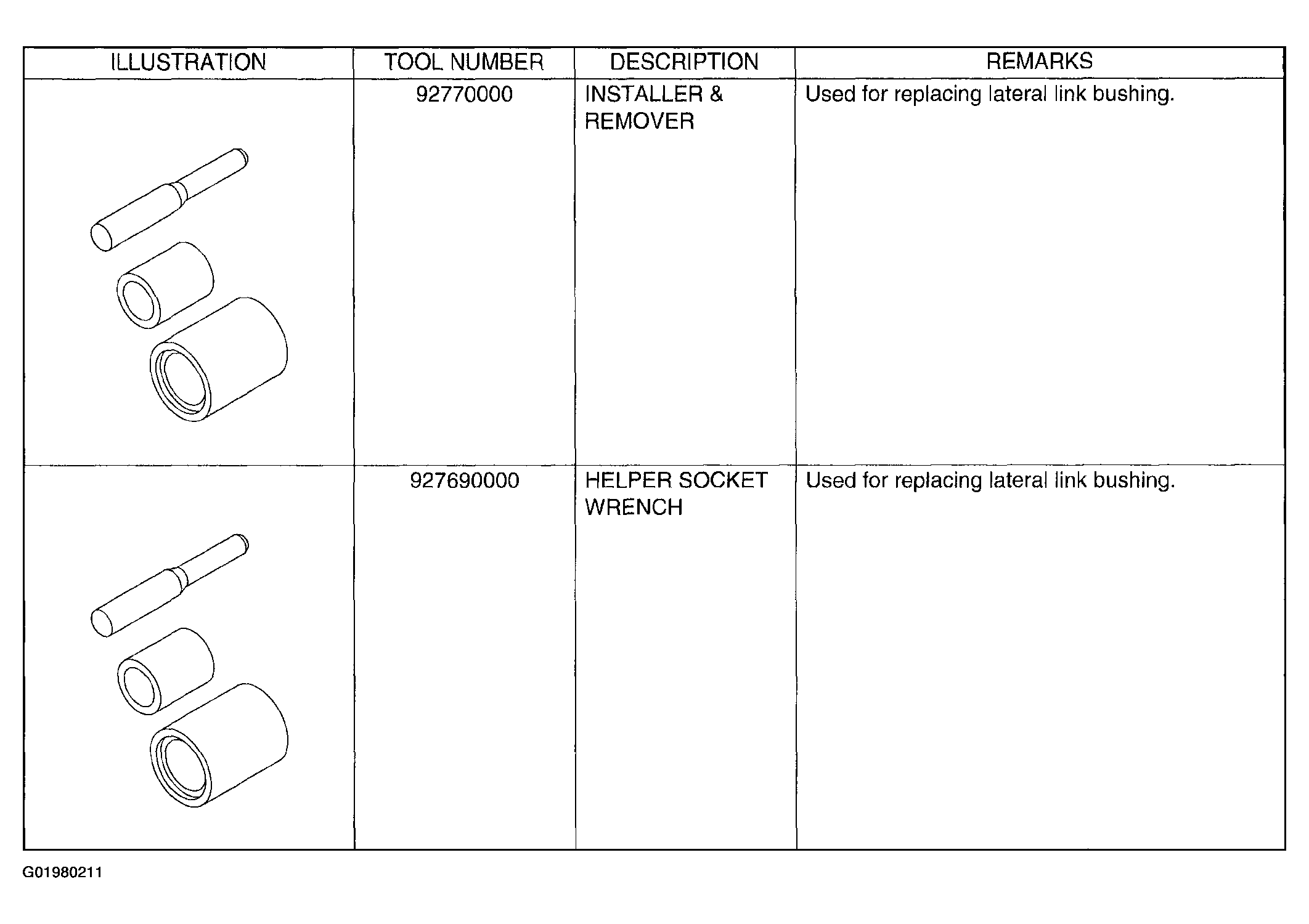

Fig 2: Rear Suspension Special Tools Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

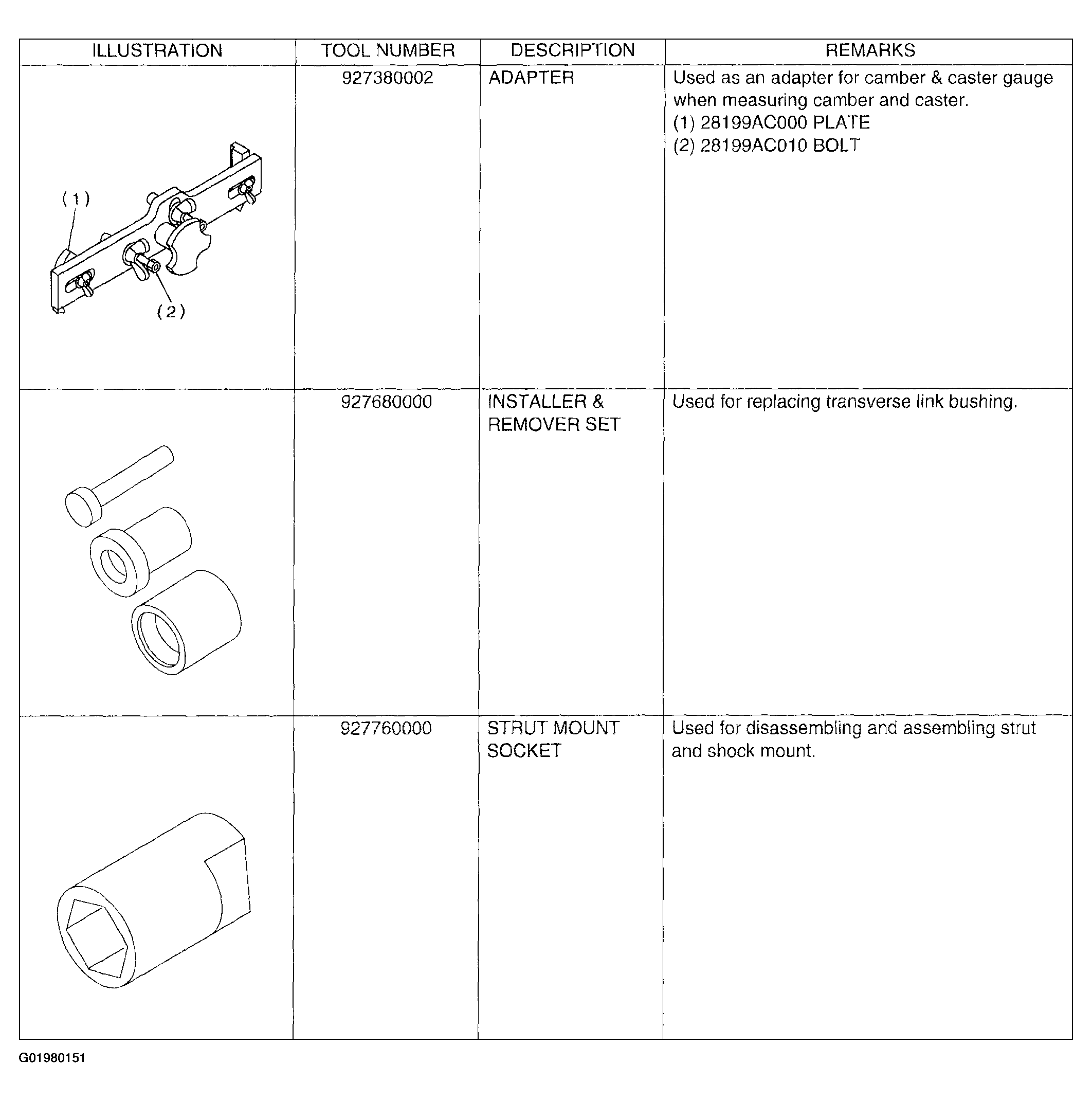

Fig 3: Rear Suspension Special Tools Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
