Side Retainer

  1. Install bearing outer race to side retainer.
  2. Install a new oil seal using the ST and hammer.

    ST 499797000 INSTALLER

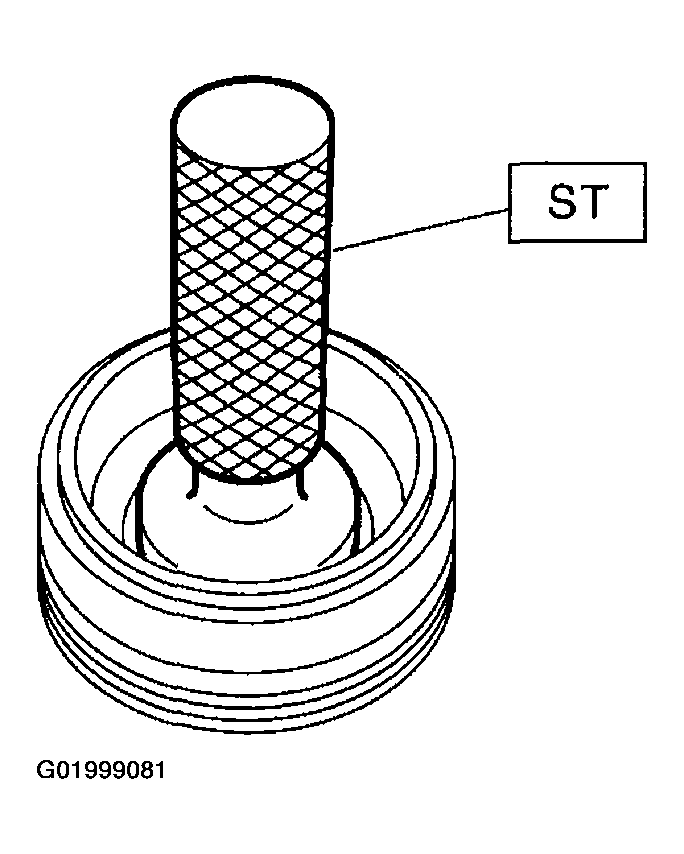

    Fig 1: Installing New Oil Seal Using ST & Hammer
    G01999081Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.
    Fig 2: Install New O-ring
    G01999082Courtesy of SUBARU OF AMERICA, INC.
