Power Windows - Mechanism & Function
›
Schematic Drawings
Schematic Drawings

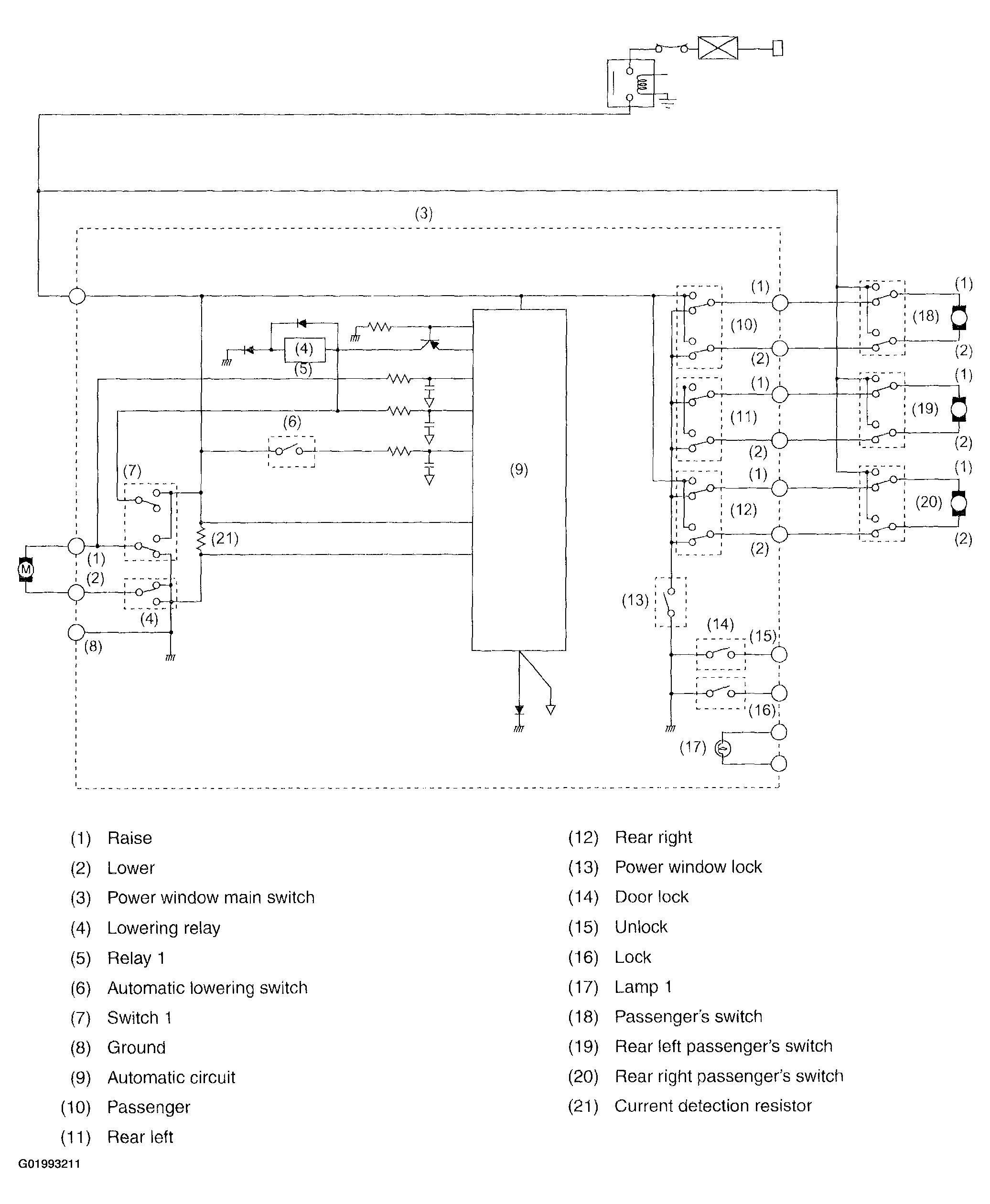

Fig 1: Power Window Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
