Ignition System - SOHC
›
Spark Plug
›
Removal
›
RH Side
RH Side
Disconnect the ground cable from battery.

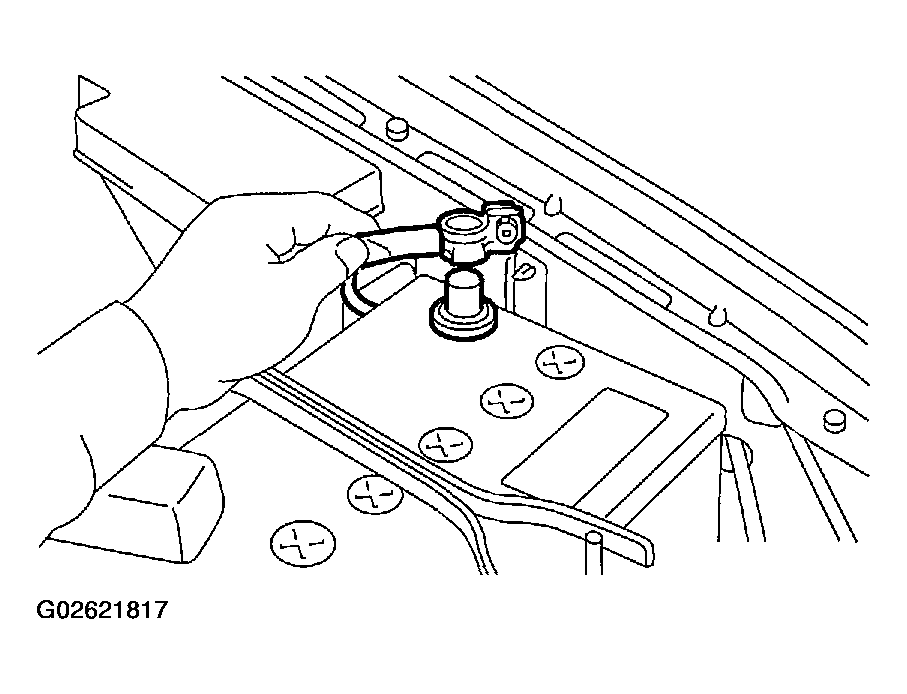

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the resonator chamber, see
REMOVAL
, Resonator Chamber.
Remove the spark plug cords by pulling the boot. (Do not pull the cord itself)

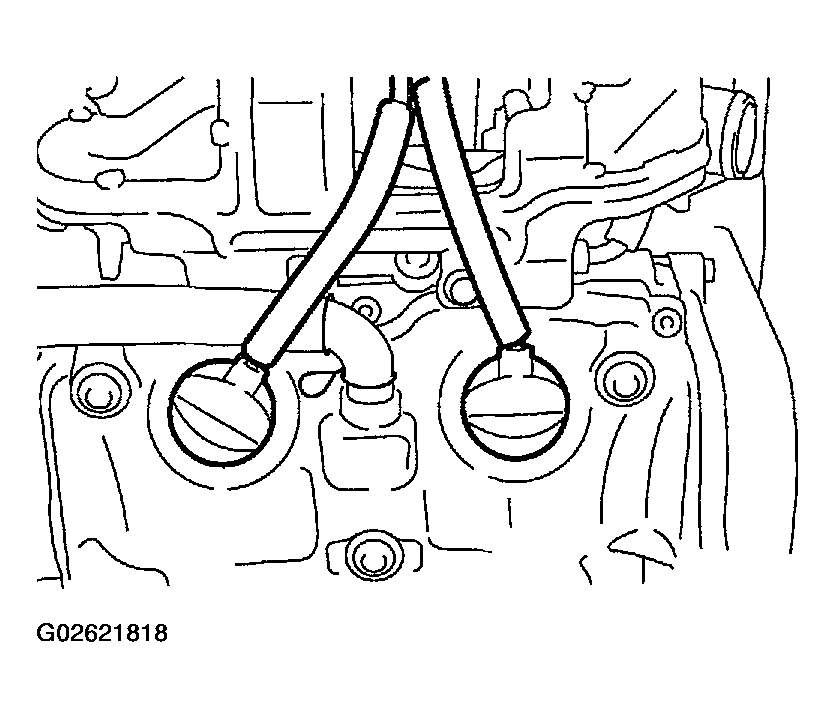

Fig 2: Removing Spark Plug Cords By Pulling On Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plugs with spark plug sockets.

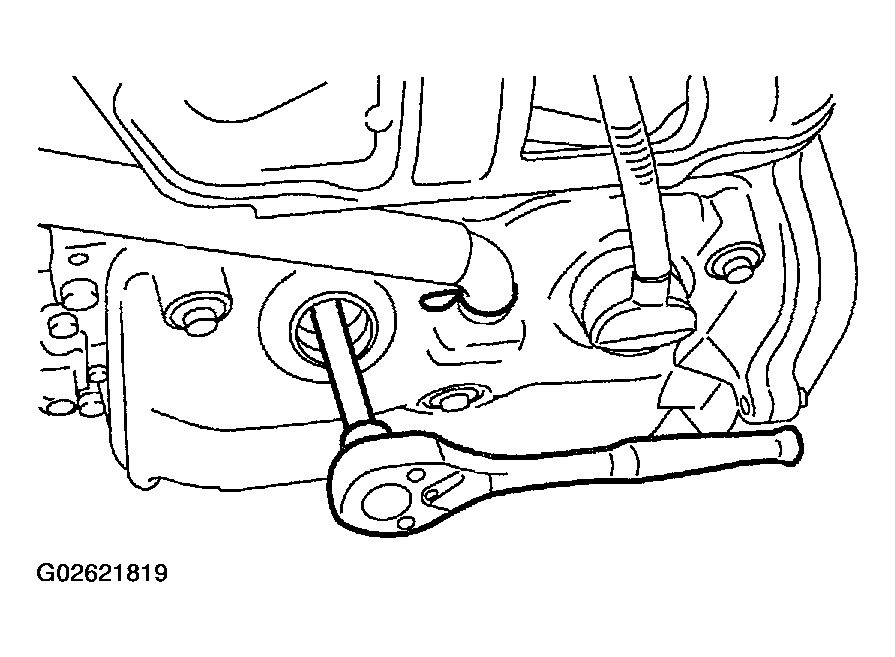

Fig 3: Removing Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
