Integrated Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly.>
  3. Remove the nut, then remove the integrated module while disconnecting the connector.

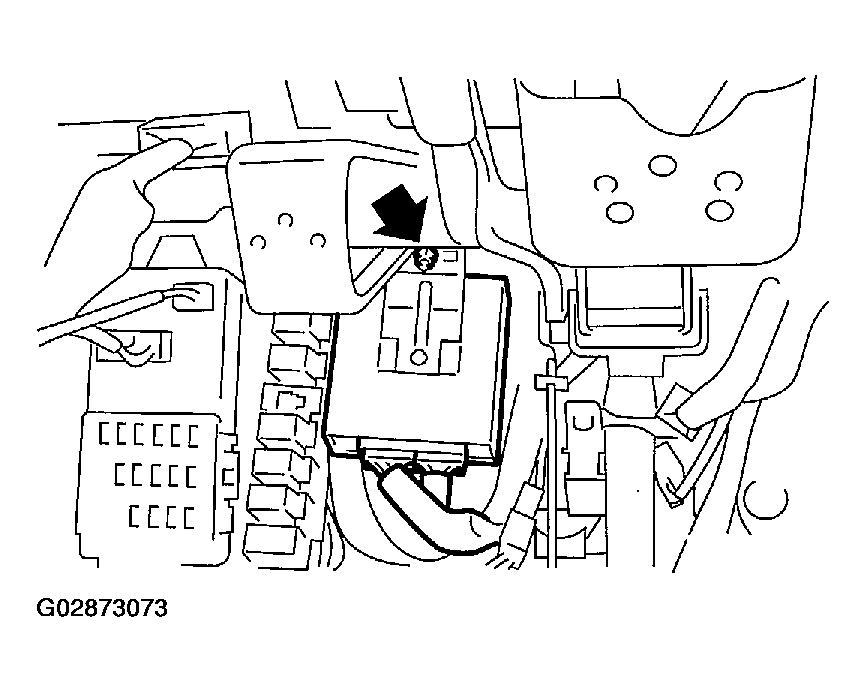

Fig 1: Removing Nut & Integrated Module
G02873073Courtesy of SUBARU OF AMERICA, INC.
