Brakes
›
Traction Control
›
Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) (Diagnostics)
›
Control Module I/O Signal
›
Schematic
Control Module I/O Signal: Schematic

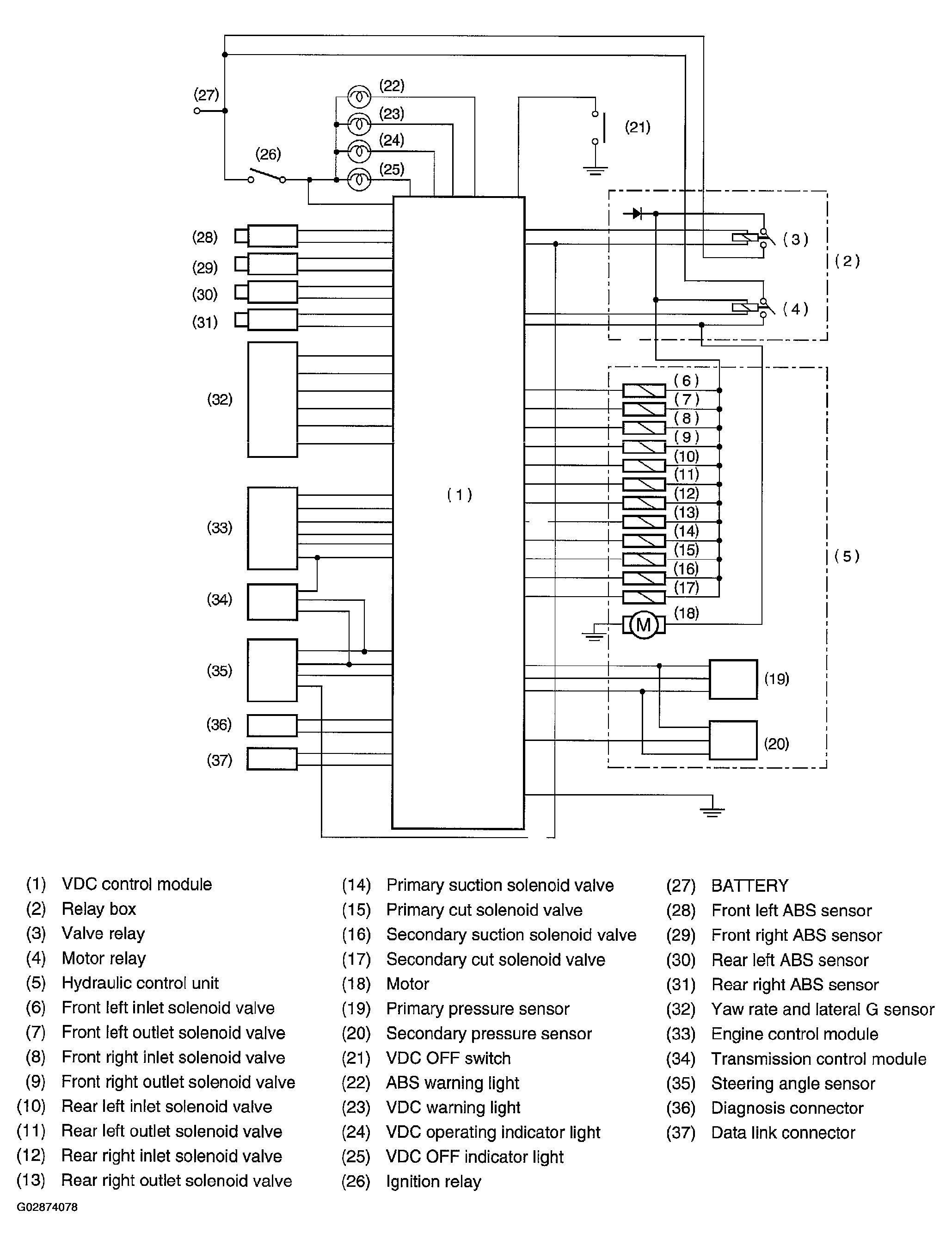

Fig 1: Control Module I/O Signal Schematic Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
