Security System
›
Electrical Specification
Electrical Specification

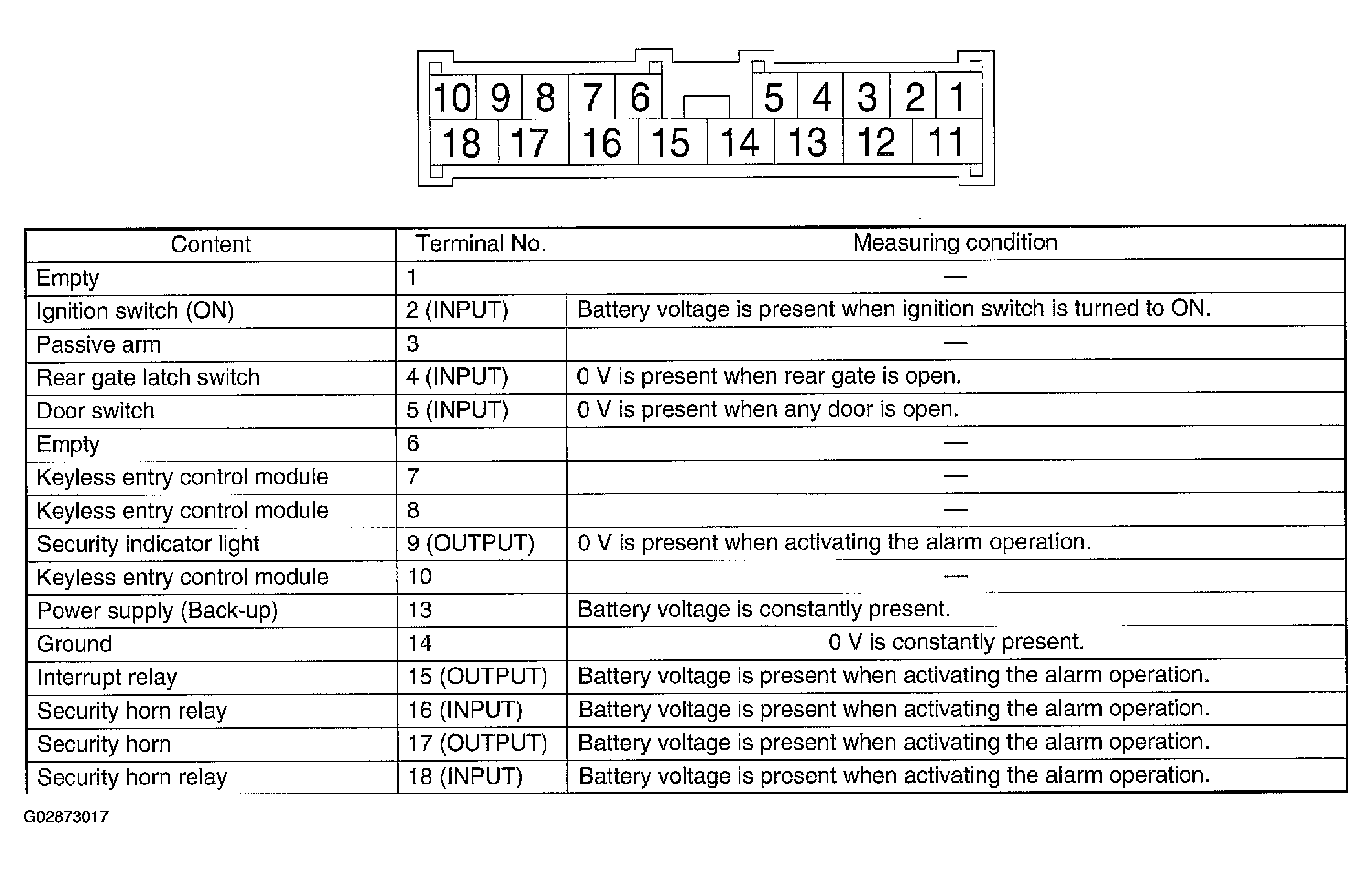

Fig 1: Security System Electrical Specification Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
