Repair and Diagnosis
›
Brakes
›
Traction Control
›
Abs (Diagnostics)
›
General Diagnostic Table
›
Inspection
General Diagnostic Table: Inspection

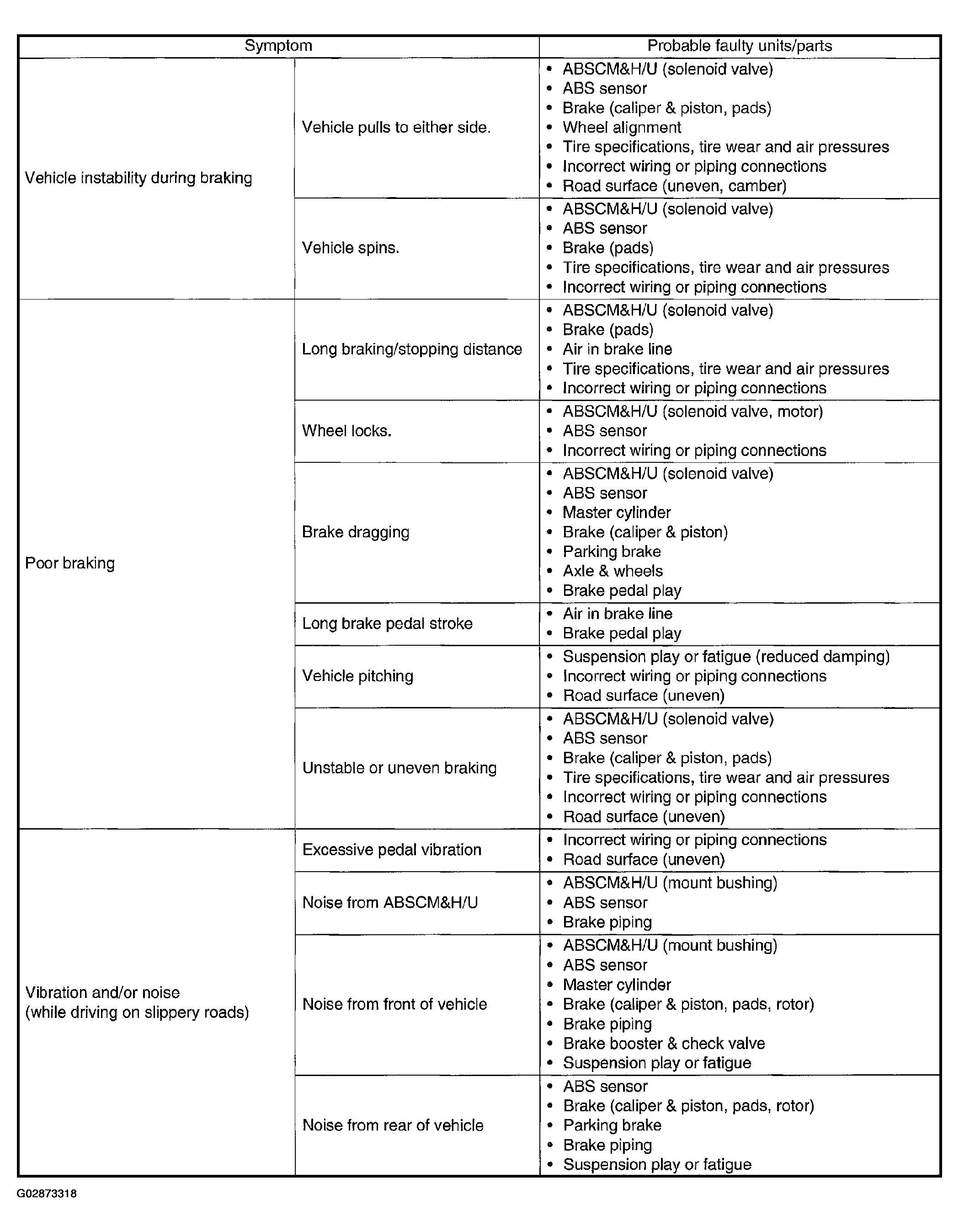

Fig 1: General Diagnostic Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
