A/C Control Module I/O Signal Connector End Views (Auto A/C)

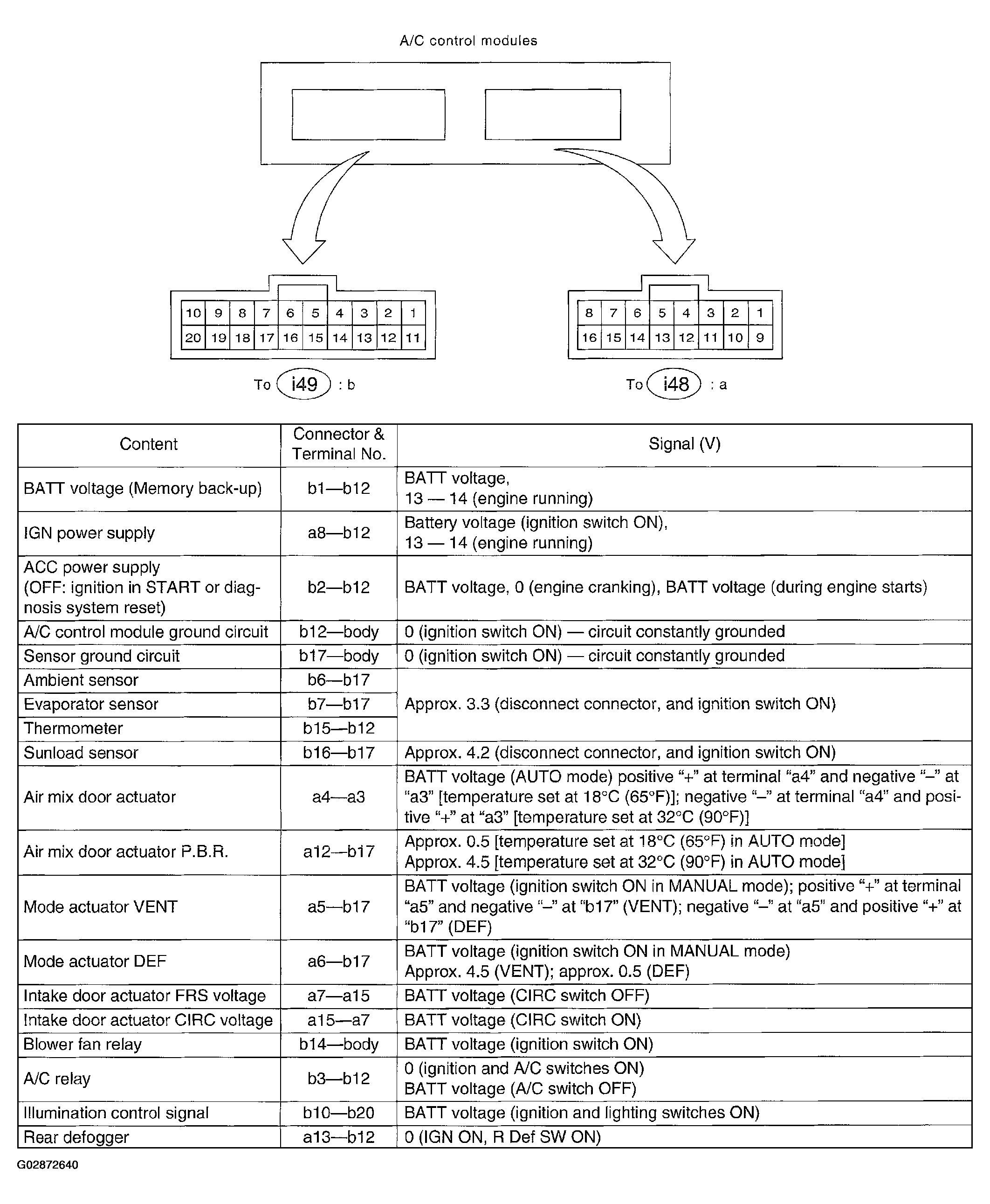

Fig 1: A/C Control Module I/O Signal Connector End Views (Auto A/C)
G02872640Courtesy of SUBARU OF AMERICA, INC.
