Connector End Views
›
VDC Control Module I/O Signal Connector End Views
VDC Control Module I/O Signal Connector End Views

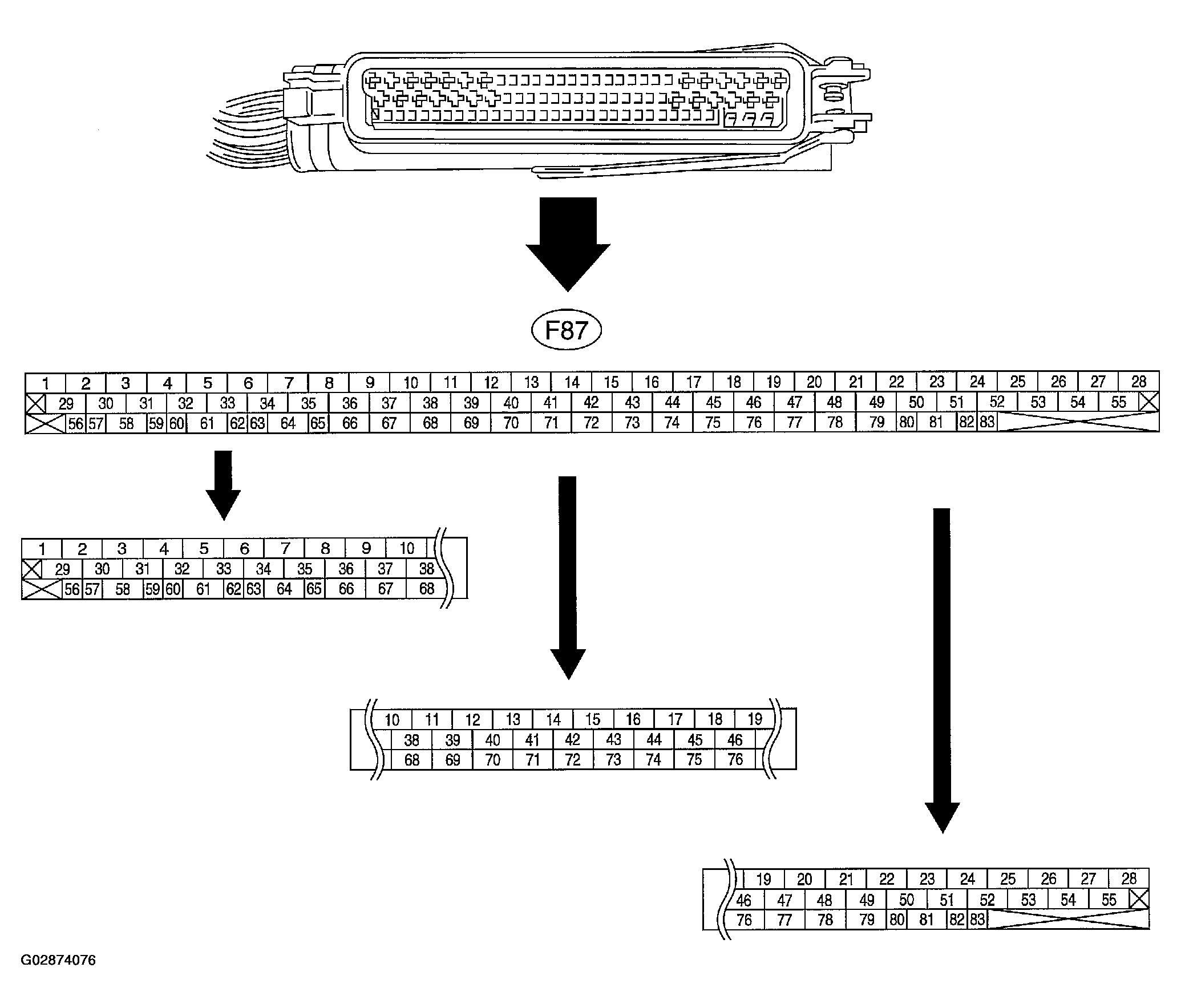

Fig 1: VDC Control Module I/O Signal Connector End Views
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
