Engine Controls - Self-Diagnostics - 3.0L
›
Diagnostic Tests
›
DTC P1443: EVAP System Vent Control Function Problem
›
Diagnosis & Repair
Diagnosis & Repair
For diagnosis, see
Fig 1
and
Fig 2
.

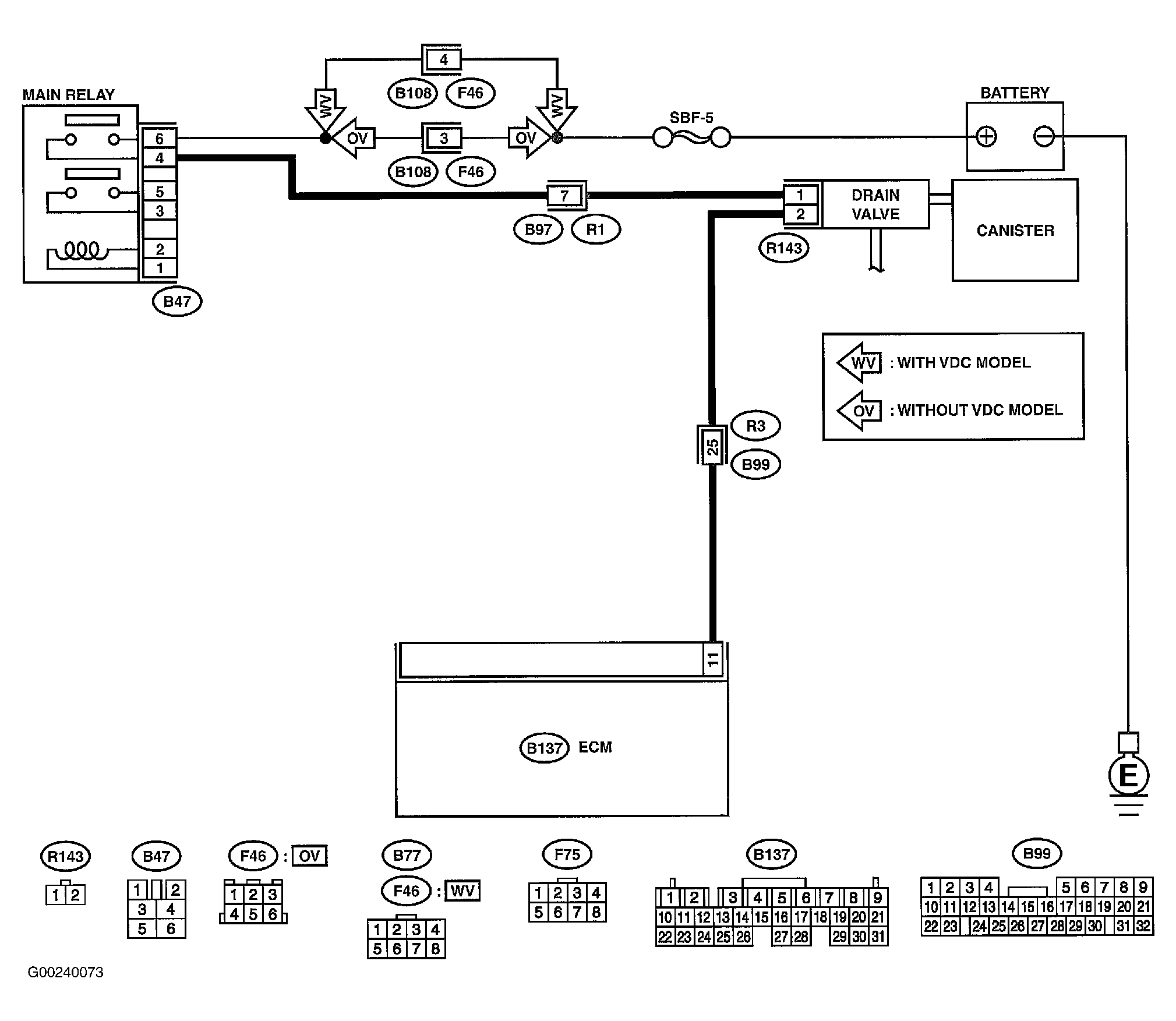

Fig 1: DTC P1443 Diagnostic Procedure (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: DTC P1443 Diagnostic Procedure (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
