Master Cylinder

WARNING: This page is about a different variant/trim than selected.

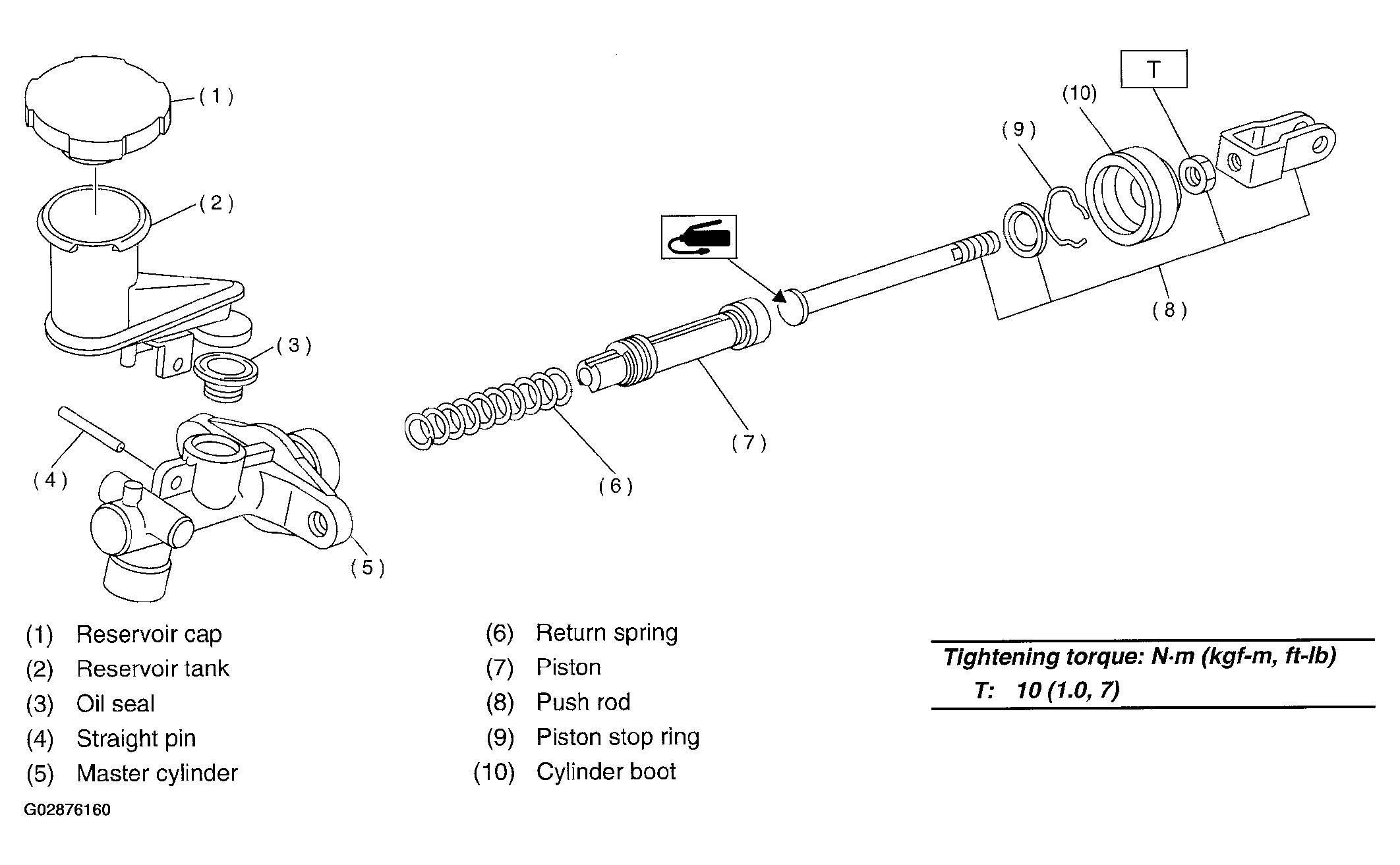

Fig 1: Master Cylinder Components With Torque Specifications
G02876160Courtesy of SUBARU OF AMERICA, INC.
