Master Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Install the master cylinder to body, and install the clutch pipe to master cylinder.
NOTE: Check that the pipe is routed properly.

Tightening torque:
1. T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
2. T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

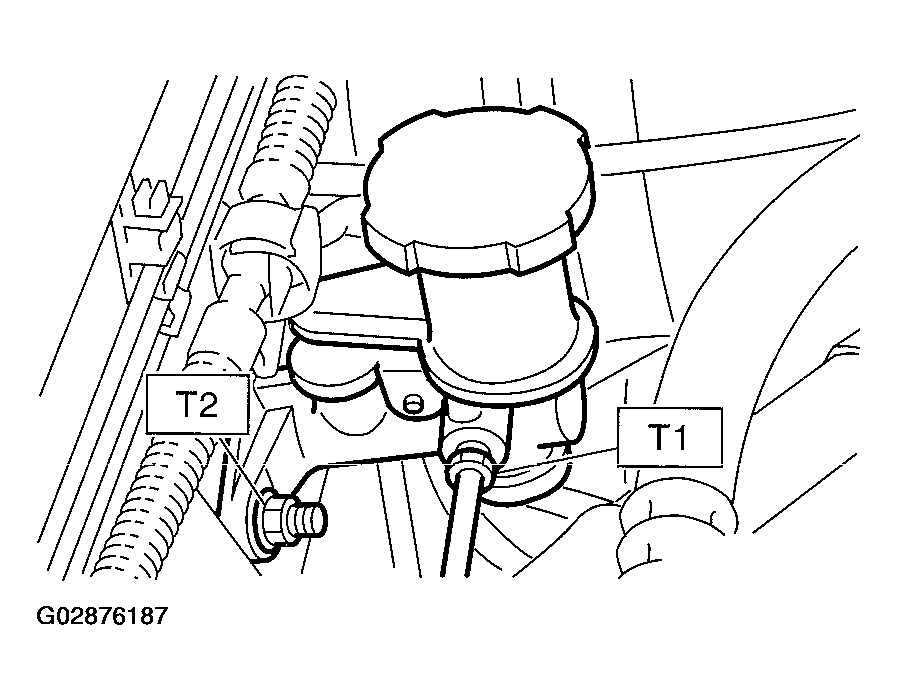

Fig 1: Installing Clutch Pipe To Master Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of grease to the clevis pin.
Connect the push rod of master cylinder to clutch pedal, and install the new clevis pin and snap pin.

Fig 2: Connecting Push Rod Of Master Cylinder To Clutch Pedal
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the system, ensure that clutch operates properly. < Ref. to CLUTCH FLUID AIR BLEEDING .>
Install the air cleaner case and air intake duct. (2.5 L model) < Ref. to INSTALLATION , Air Cleaner Case> and < Ref. to INSTALLATION , Air Intake Duct.>
Install the air intake chamber and air intake duct. (3.0 L model) < Ref. to INSTALLATION , Air Intake Chamber> and < Ref. to INSTALLATION , Air Intake Duct.>
