Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner case and air intake duct. (2.5 L model) < Ref. to REMOVAL , Air Cleaner Case> and < Ref. to REMOVAL , Air Intake Duct.>
Remove the air intake chamber and air intake duct. (3.0 L model) < Ref. to REMOVAL , Air Intake Chamber> and < Ref. to REMOVAL , Air Intake Duct.>
Remove the clutch hose from operating cylinder.
NOTE: Cover the hose joint to prevent clutch fluid from flowing out.

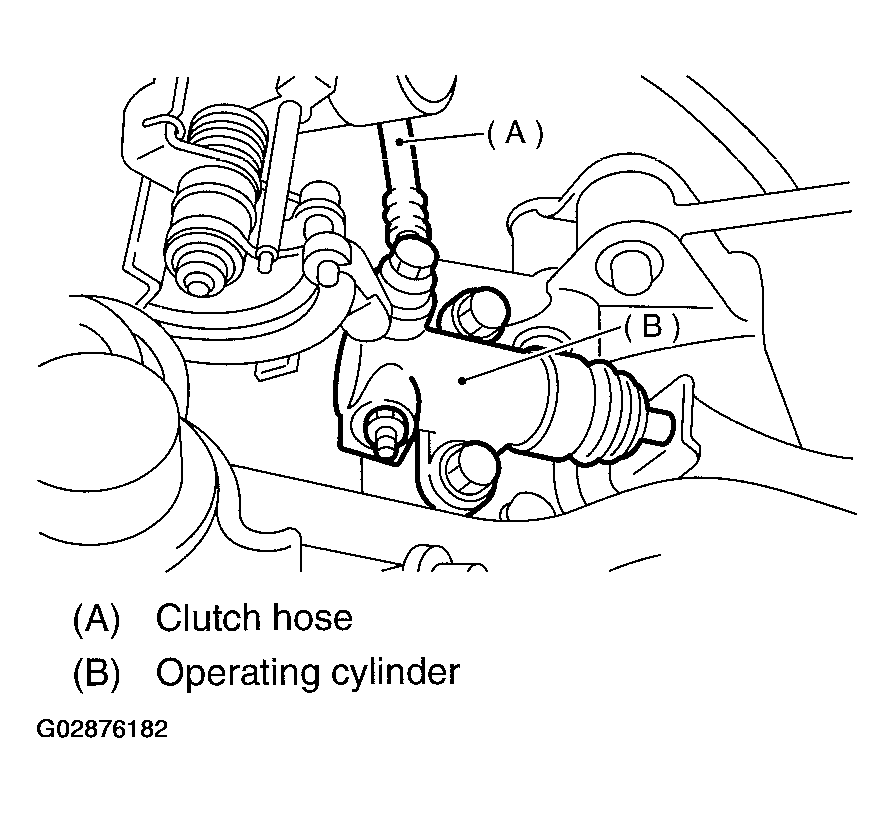

Fig 1: Removing Clutch Hose From Operating Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.

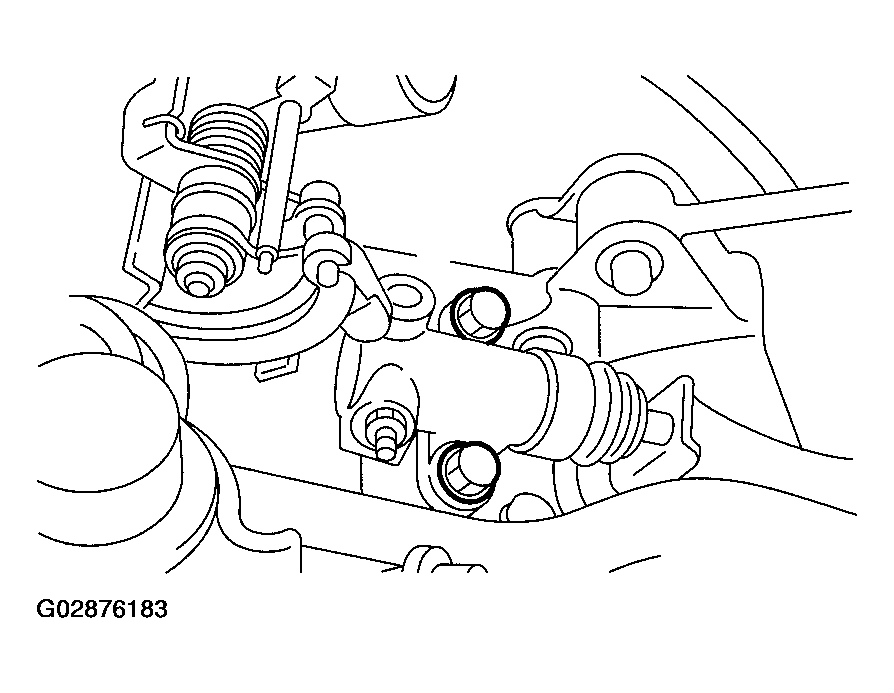

Fig 2: Removing Operating Cylinder From Transmission
Courtesy of SUBARU OF AMERICA, INC.
