2.5 L Model

Remove ground cable from battery.
Remove pulley belt cover bracket.
Loosen lock bolt and slider bolt and remove power steering pump drive V-belt.

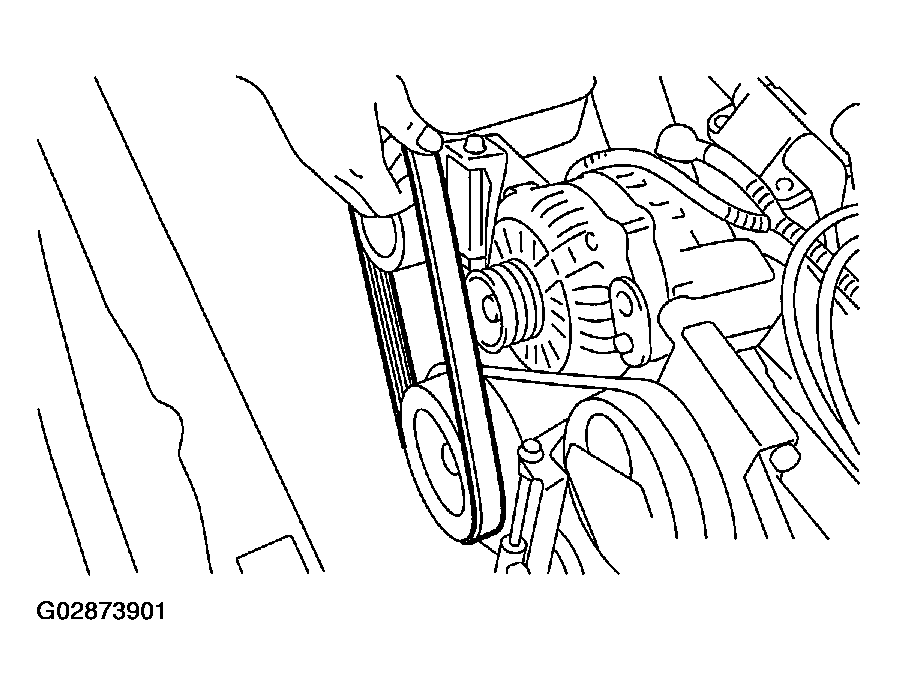

Fig 1: Removing Power Steering Pump Drive V-Belt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from power steering pump switch.
Disconnect pipe C and suction hose from oil pump.
CAUTION:
- Do not allow fluid from the hose end to come into contact with pulley belt.
- To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

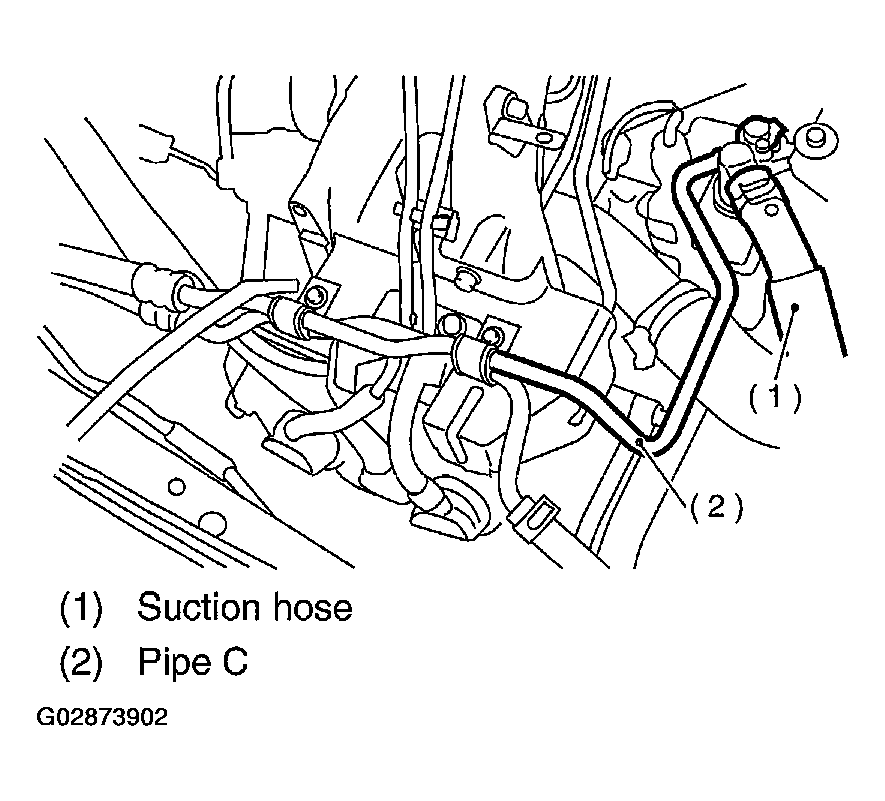

Fig 2: Disconnecting Pipe C & Suction Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which install power steering pump bracket.

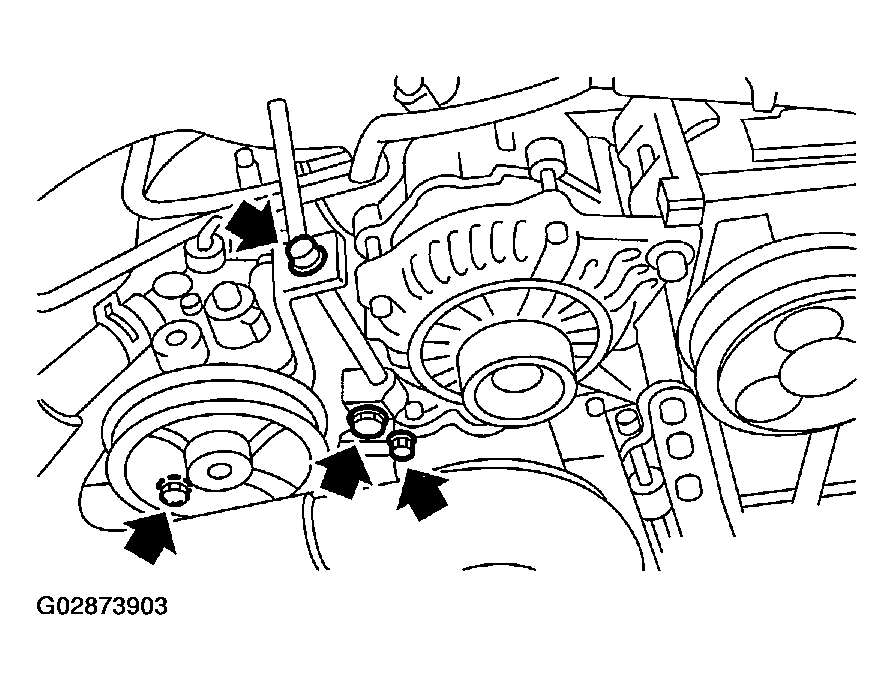

Fig 3: Removing Power Steering Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

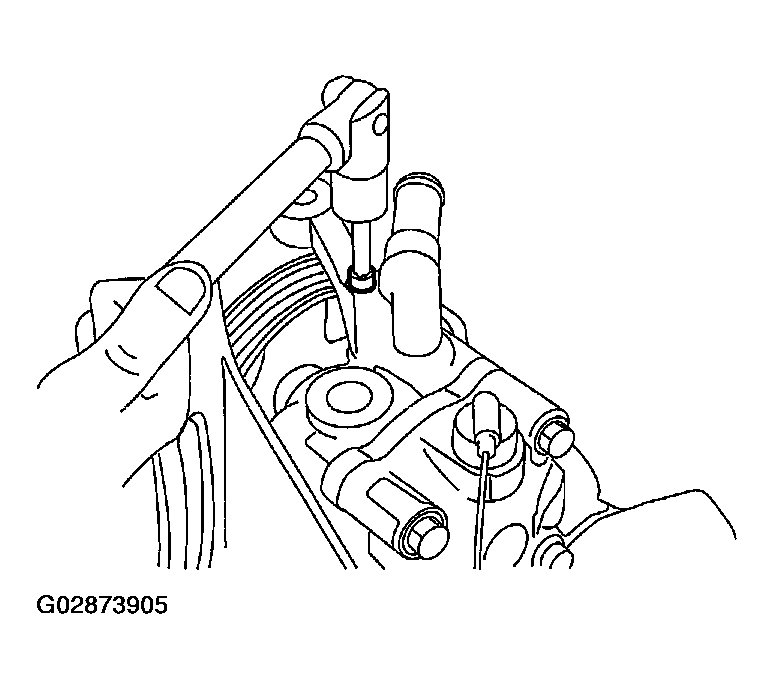

Place oil pump bracket in a vise, remove two bolts from the front side of oil pump.
CAUTION: Do not place oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.

Fig 4: Removing Bolts From Front Side Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.

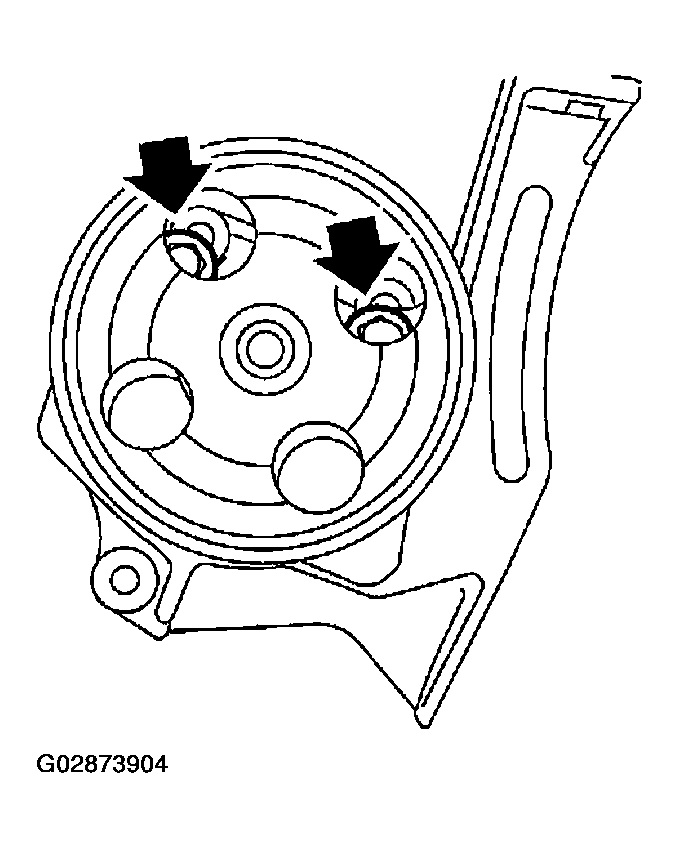

Remove socket from oil pump.

Fig 5: Removing Socket From Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt from the rear side of oil pump.
Disassemble oil pump and bracket by inserting a screwdriver as shown in the figure.

Fig 6: Disassembling Oil Pump & Bracket
Courtesy of SUBARU OF AMERICA, INC.
