Steering Wheel: Removal

  1. Disconnect ground cable from battery.
  2. Set tires to straight-ahead position.
  3. Remove airbag module. < Ref. to AIR BAG RESTRAINT SYSTEMS .>
    WARNING: Always refer to AIR BAG RESTRAINT SYSTEMS before performing airbag module service (if so equipped).
  4. Remove steering wheel nut, and then draw out steering wheel from shaft using steering puller.
NOTE: Make matching marks on steering wheel and steering column in advance.

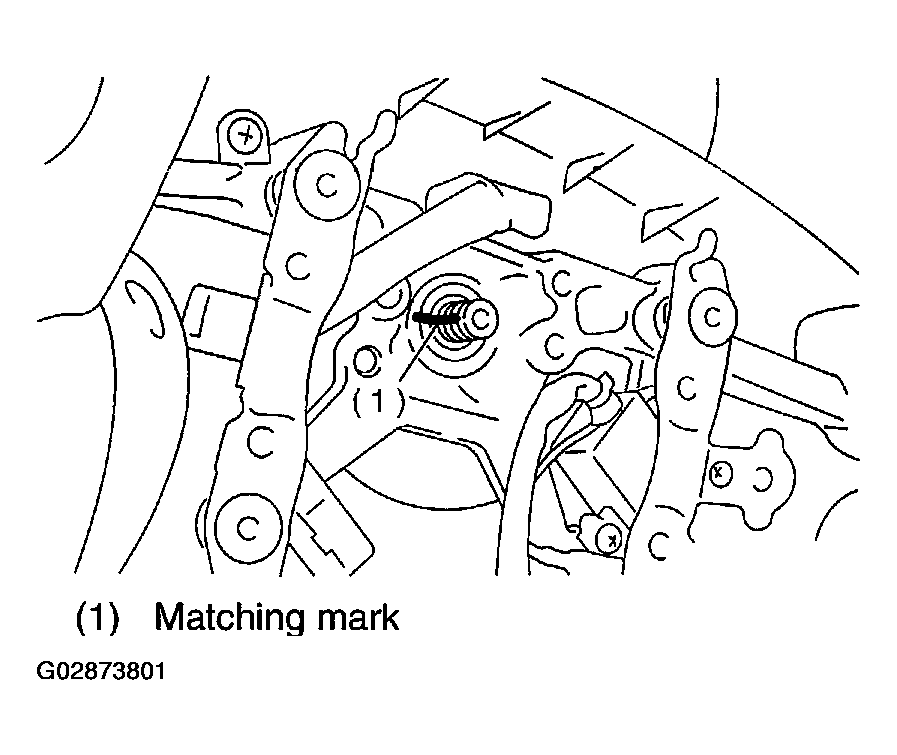

Fig 1: Removing Steering Wheel Nut & Steering Wheel
G02873801Courtesy of SUBARU OF AMERICA, INC.
