Without VDC System And Sport Shift

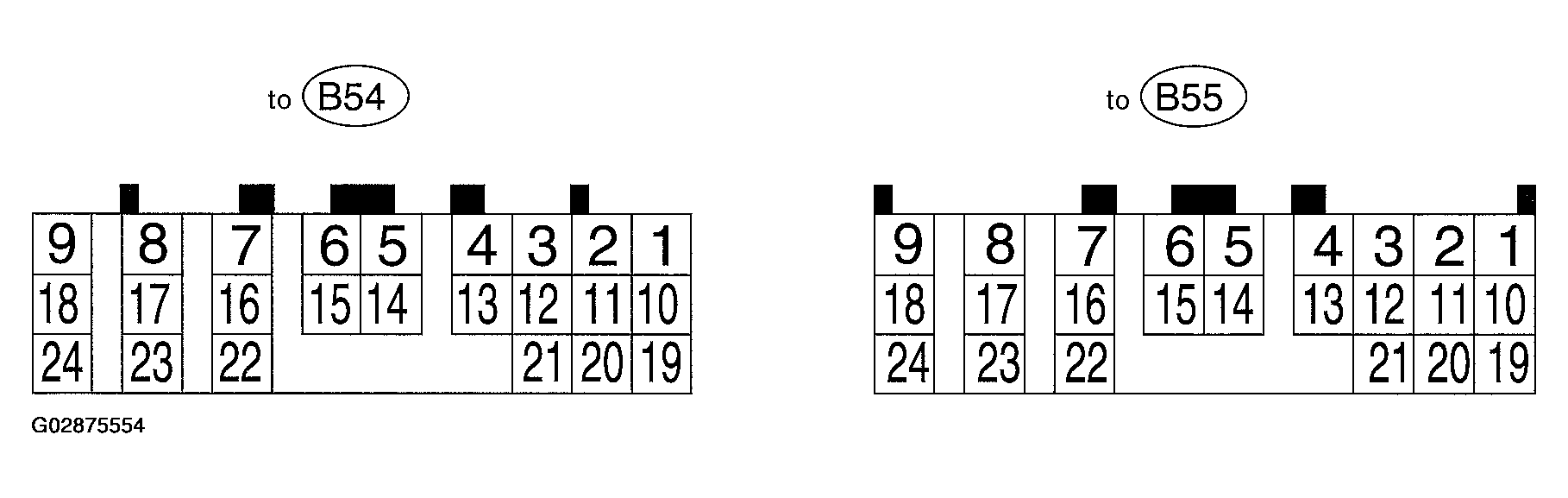

Fig 1: Identifying TCM I/O Signal Terminals (Without VDC System & Sport Shift)

Courtesy of SUBARU OF AMERICA, INC.

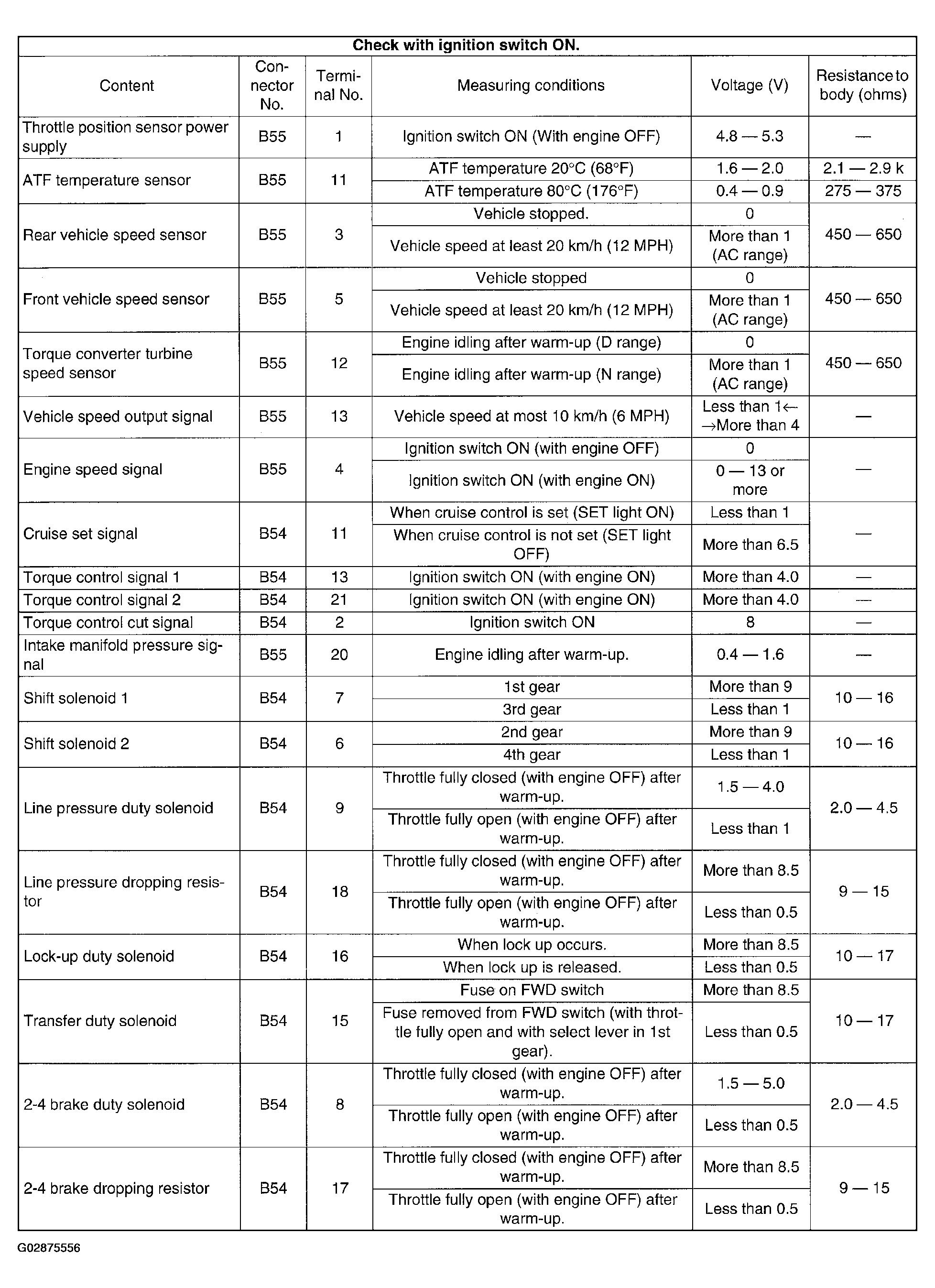

Fig 2: TCM Electrical Specification Chart (Without VDC System & Sport Shift - 1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

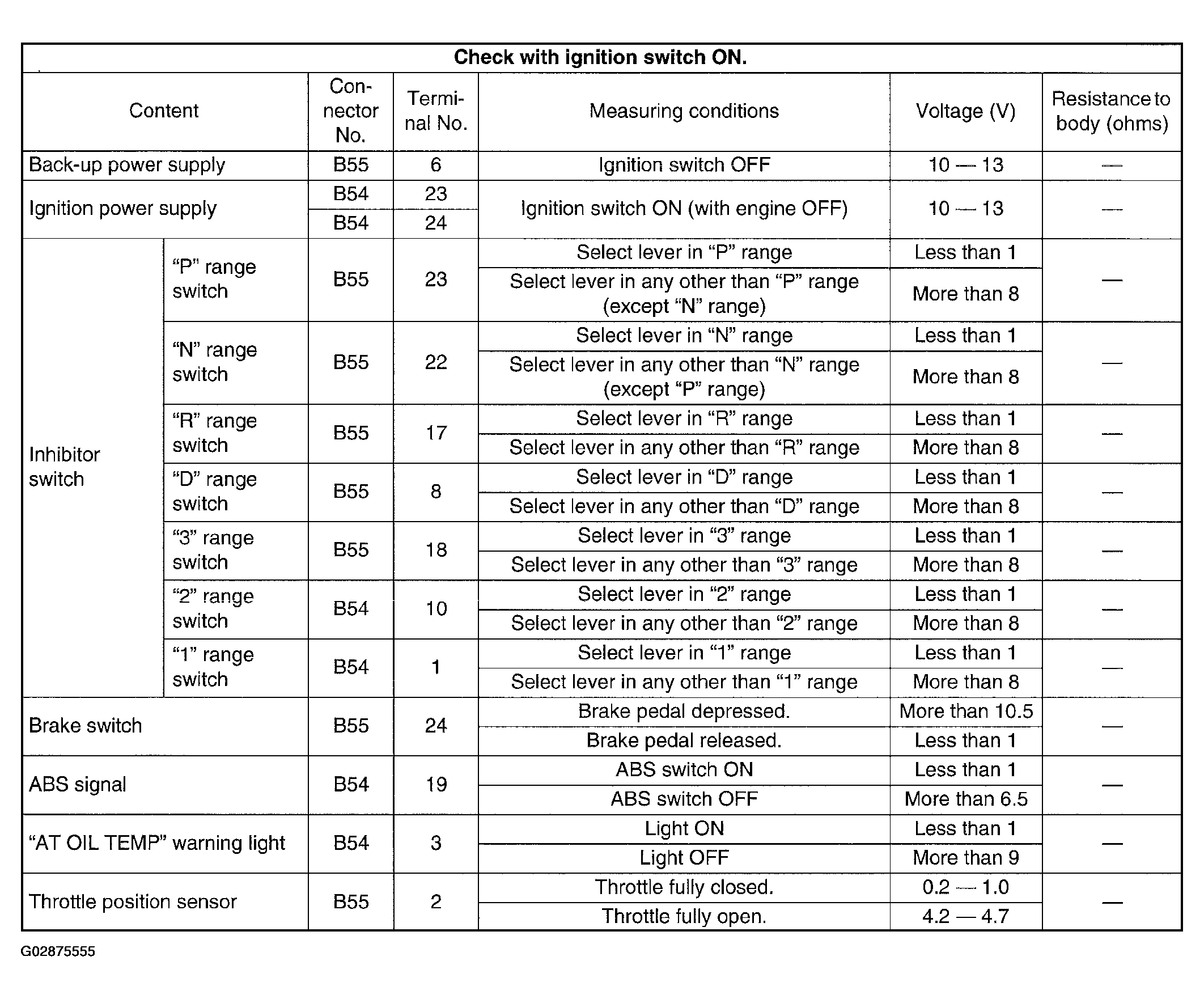

Fig 3: TCM Electrical Specification Chart (Without VDC System & Sport Shift - 2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

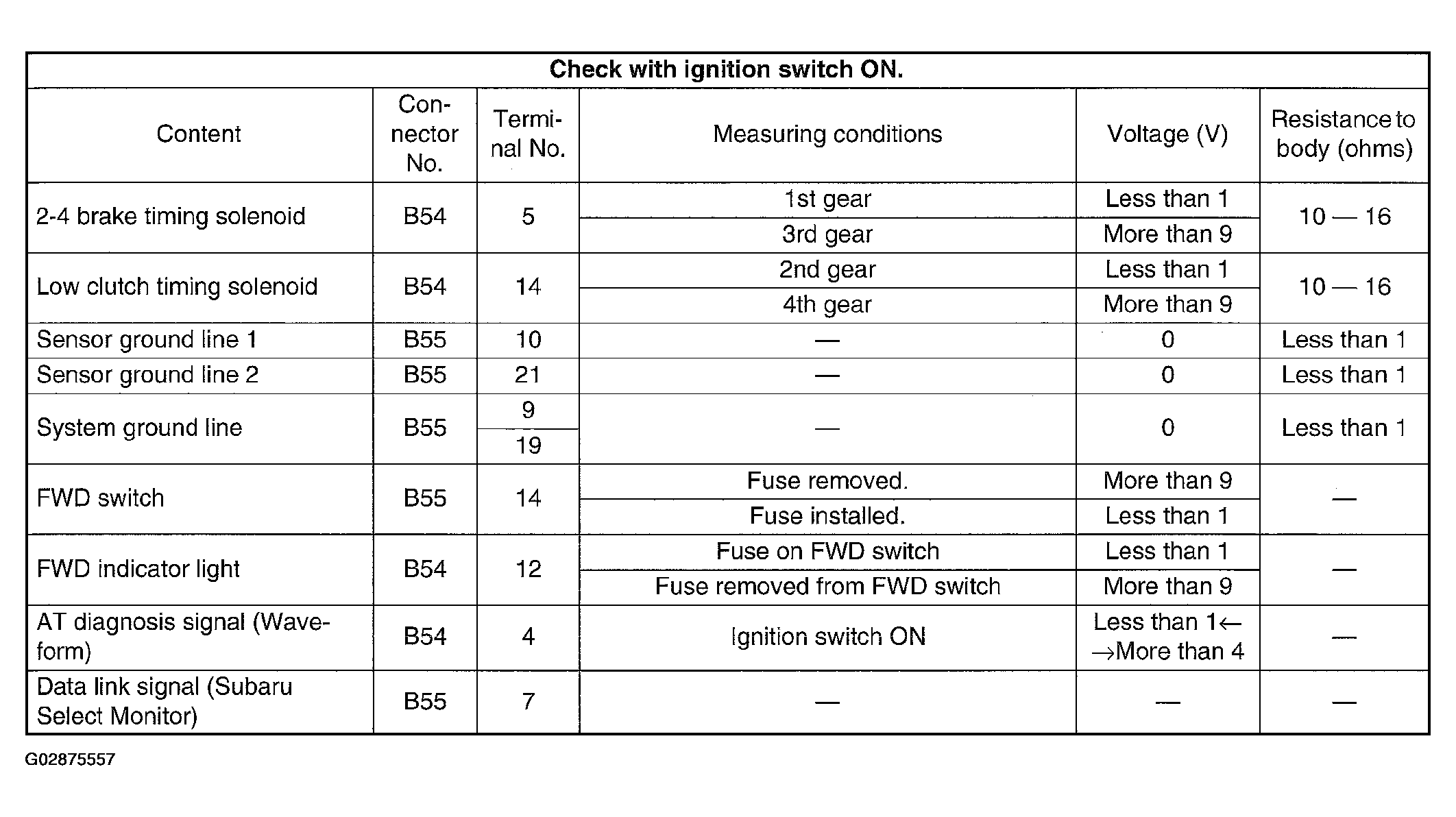

Fig 4: TCM Electrical Specification Chart (Without VDC System & Sport Shift - 3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
