Automatic Trans - Mechanism & Function
›
Schematic Drawings
›
Vehicles With Sports Shift
›
R Range
R Range

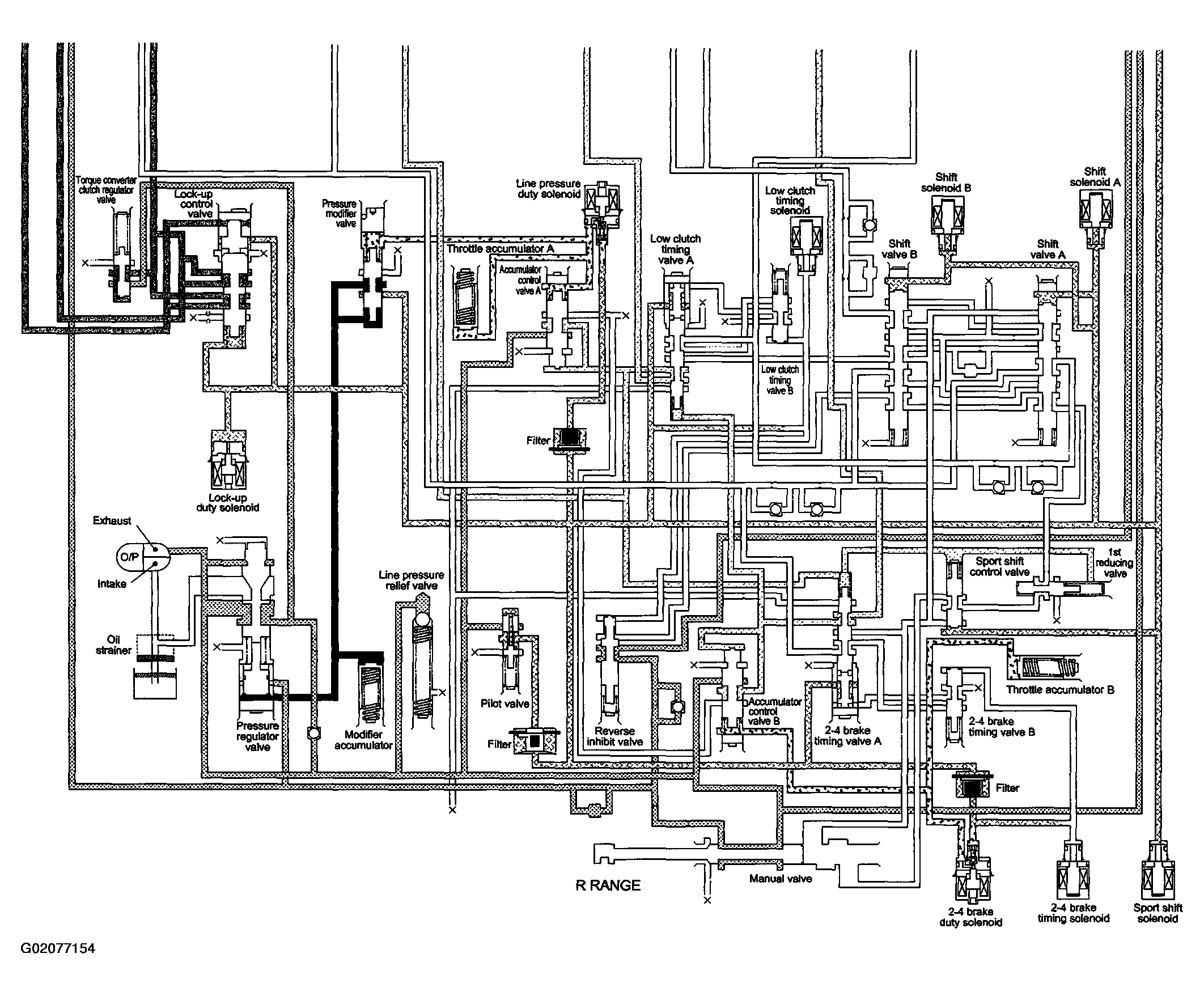

Fig 1: Hydraulic Schematic Diagram - R Range (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

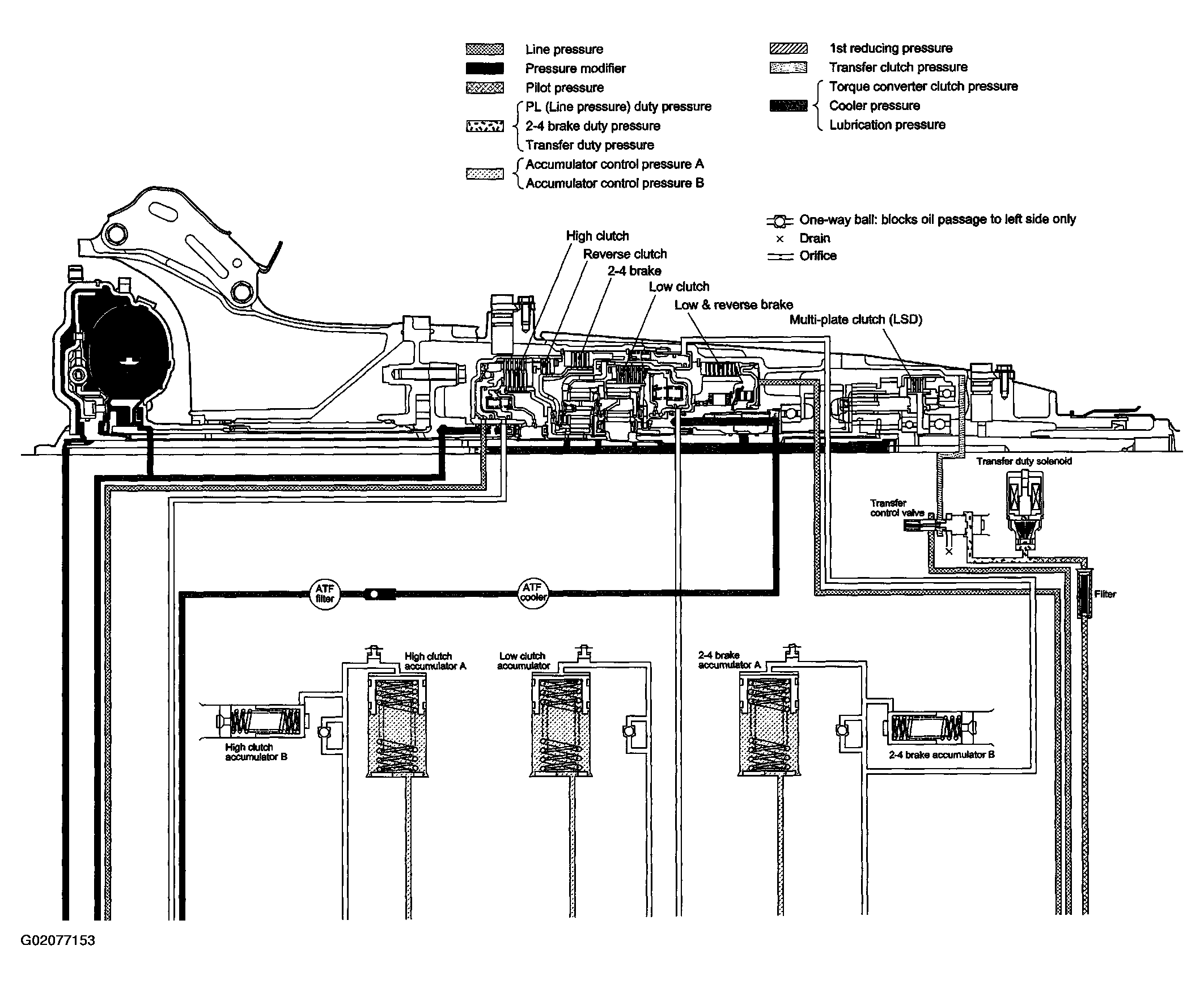

Fig 2: Hydraulic Schematic Diagram - R Range (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
